Husqvarna YT150 - HCYT150A (1996-01) Riding Tractor

Model: YT150 - HCYT150A (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

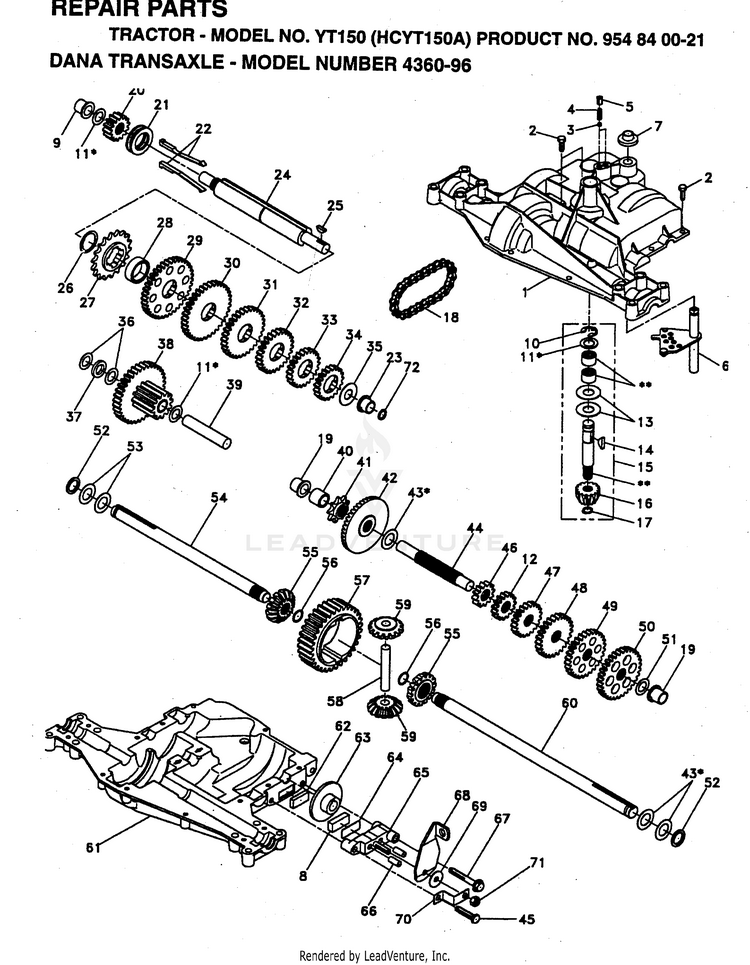

TRANSMISSION

...
...
23
Bearing, Flange HUS-148268
...
3
Ball, Detent HUS-134400
...
46
Gear, Spur, 12 Teeth HUS-142678
...
11
Assembly, Kit, Shim, .625 Shaft HUS-134793
...
43
Assembly, Kit, Shim, .750 Shaft HUS-134394
...
68
Lever, Actuating HUS-138244
...
20
Gear, Spur, 14 Teeth HUS-142675
...
61
Housing, Lower HUS-142680
...
7
Boot, Shifter HUS-134399
...
71
Nut, Hex, Nylon 5/16-24 UNF HUS-73810500
...
67
Screw, Self-Tapping, Large 5/16-18 x 2.25 HUS-134799
...
6
Kit, Shifter Assembly HUS-138235
...
29
Gear, Spur, 37 Teeth HUS-142677
...
14
Key, Woodruff, No. 9 HUS-142674
...
34
Gear, Spur, 19 Teeth HUS-134796
...
24
Shaft, Intermediate HUS-142676
...
30
Gear, Spur, 35 Teeth HUS-142681
...
52
Washer, Neoprene HUS-134401
