Husqvarna YT140CR (1999 & Before) Tractor

Model: YT140CR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

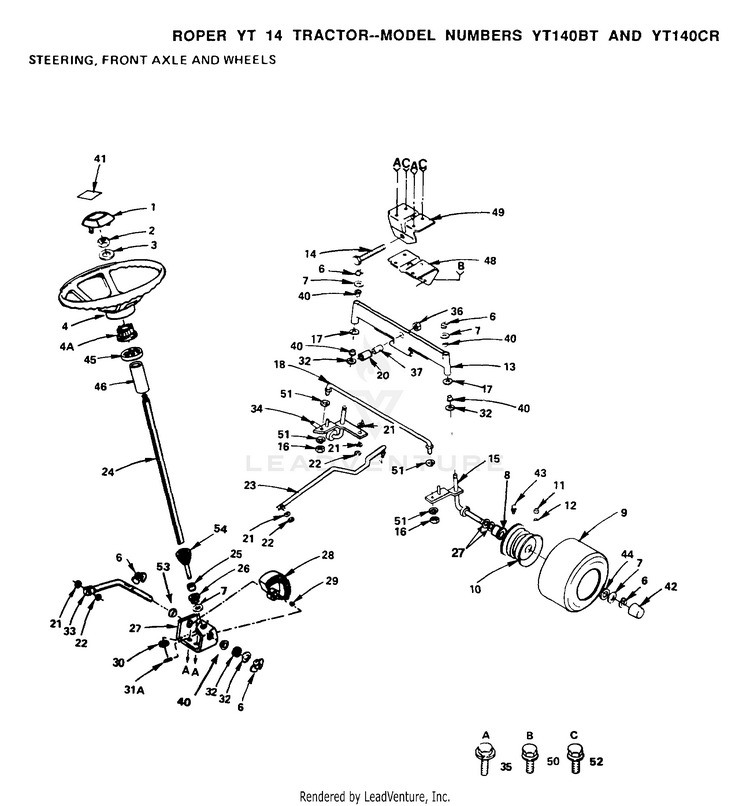

STEERING, FRONT AXLE, WHEELS

...
...
1
INSERT-WHEEL LT HUS-100710L
...
2
SUB= 73360800 HUS-73940800
...
3
WASHER HUS-100712K
...
4
SUB= 150547 HUS-100713N
...
4A
ADAPTER LT HUS-100711L
...
5
NYLINER T HUS-109816X
...
6
RING HUS-12000029
...
7
SUB= 121749X HUS-19252016
...
8
"FLANGE, BEARING" HUS-9040H
...
9
SUB= 122073X HUS-106222X
...
xx
TUBE.5.3/4.5/6 HUS-59904
...
10
SUB= 106732X417 HUS-106732X
...
11
VALVE STEM LT HUS-65139
...
12
VALVE CAP HUS-59192
...
13
FRONT AXLE HUS-108075X
...
14
BOLT LT HUS-74761060
...
15
SUB= 130524 HUS-105654X
...
16
COTTER PIN HUS-76020412
...
18
ROD-TIE LT HUS-105715X
...
19
ZERK M HUS-6855M
...
20
BEARING HUS-110438X
...
21
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
22
SUB= 7810H HUS-73610600
...
23
LINK-DRAG LT HUS-105727X
...
24
SHAFT ASM T HUS-109556X
...
25
SHAFT SPACER LT HUS-74580
...
26
BUSHING HUS-71208
...
27
SUB= 110150X HUS-109432X
...
28
GEAR.SECTOR.HYT HUS-108684X
...
29
KEY-WOODRUFF LT HUS-106126X
...
30
WASHER D HUS-19212016
...
31A
DRIVE PIN HUS-2882J
...
32
WASHER .T HUS-6266H
...
33
ROD STEERING T HUS-108683X
...
34
SPINDLE-LH LT HUS-105656X
...
35
SCREW HUS-17490612
...
36
"NUT-LOC,FLANGE LT" HUS-73901000
...
37
SUB= 110438X HUS-105725X
...
40
COL. SRTG. BEAR. HUS-3366R
...
41
DECAL - STEERING WHEEL HUS-104590X
...
42
HUB CAP HUS-104757X
...
43
FITTING LT HUS-278H
...
44
SUB= 121748X HUS-19252616
...
45
SPACER LT HUS-106943X
...
46
TUBE LT HUS-106944X
...
48
SUPPORT.SADDLE.FT HUS-105664X
...
49
SUPPORT-SADDL T HUS-105663X
...
50
SCREW LT HUS-17490508
...
51
SUB= 126847X HUS-102792X
...
52
WASHER HUS-19131416
...
54
GEAR PINION T HUS-108685X
