Husqvarna YT130 - HEYT130B (1996-01) Riding Tractor

Model: YT130 - HEYT130B (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE & CUTTING EQUIPMENT

...
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
40
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
16
Washers HUS-596238701
...
66
STOP THROTTLE HUS-532127951
...
14
Nipple Pipe 3/8 Npt X 3-1/2 HUS-813280324
...
72
Screws HUS-596134201
...
19
RECEPTACLE LT HUS-532105839
...
46
Washers HUS-596135301
...
1
THROTTLE.CONTROL.CABLE.BLACK HUS-532170865
...
24
SCREW HUS-817021008
...
31
GAS TANK 2GAL HUS-532180645
...
30
STRIP HUS-532127057
...
22
STUD 1/4 TURN HUS-532149793
...
15
VALUE.OIL.DRAIN HUS-532428287
...
23
HEAT SHIELD HUS-532128953
...
33
HOSE CLAMP HUS-532123487
...
4
MUFFLER.SINGLE.B&S.10-12HP HUS-532137348
...
62
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
18
HEAT SHIELD HUS-532136718
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
81
NUT.HEX..25-20.UNC HUS-532050675
...
78
BOLT HUS-874760620
...
13
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
2
Bolts HUS-596582501
...
44
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412

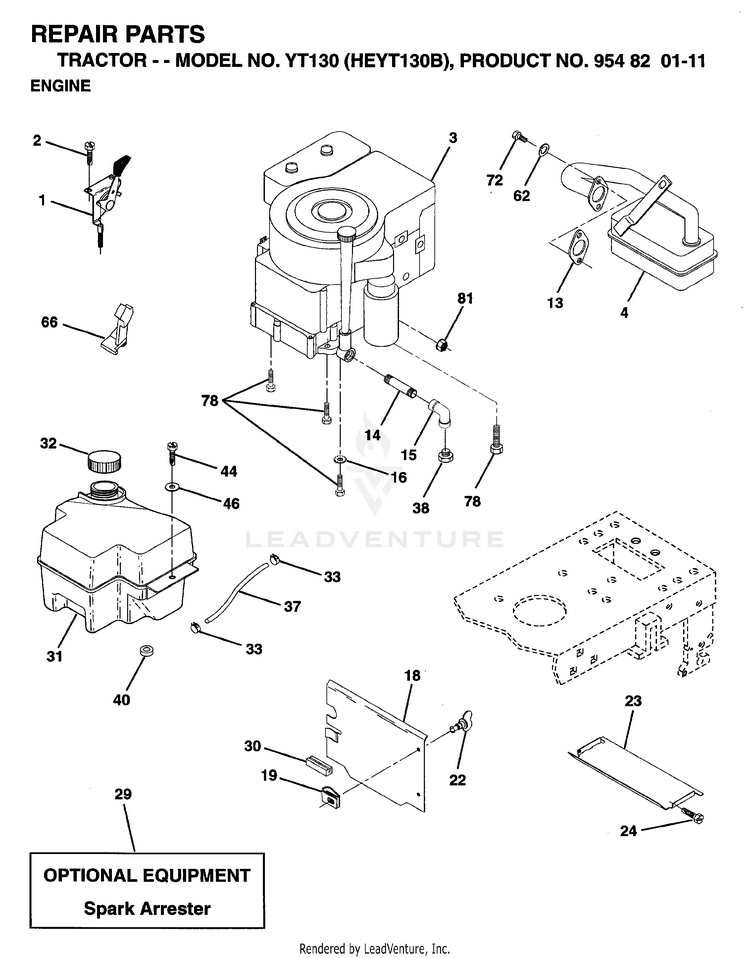

Schematic Image Zoomed
