product name

Husqvarna YT130 - HEYT130B (1996-01) Riding Tractor

Model: YT130 - HEYT130B (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

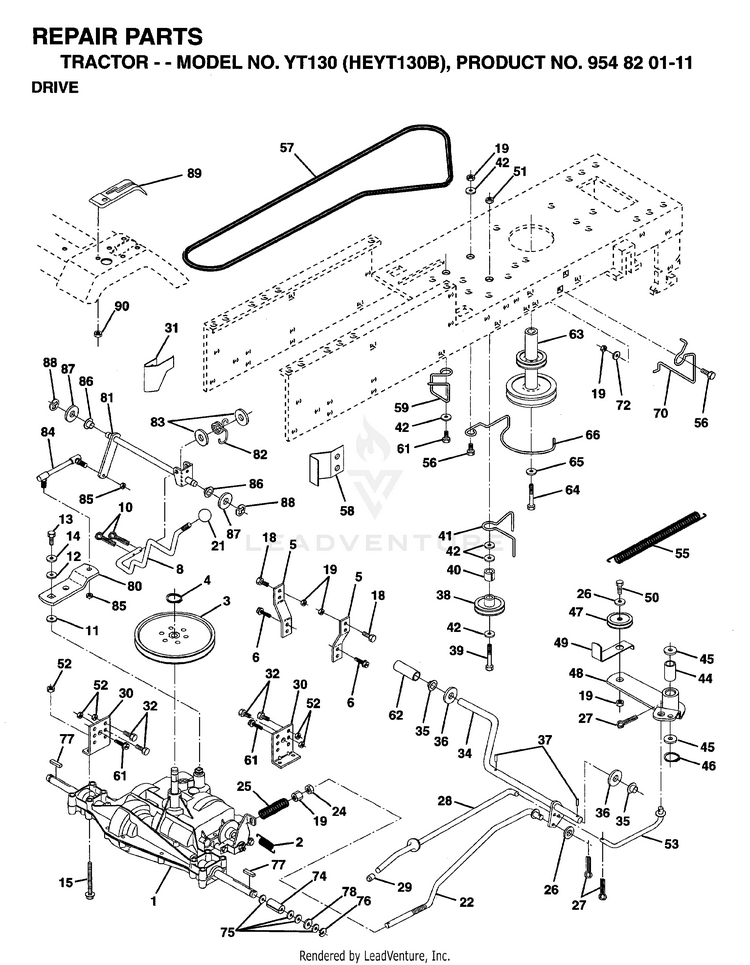

DRIVE

...
...
90
NUT.PUSH.3/16 HUS-532124346
...
56
BOLT HUS-874760620
...
26
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
59
KEEPER, BELT CENTER HUS-532169691
...
50
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
8
ROD SHIFT HUS-532141003
...
65
Washers HUS-596238901
...
83
BUSHING HUS-734117771
...
2
SPRING,BRAKE RETURN HUS-532146682
...
19
Nuts HUS-596322601
...
57
BELT, V GROUND DRIVE 95 25 HUS-532138255
...
36
Washers HUS-596933401
...
51
Nuts HUS-596322601
...
63
PULLEY.ENG.CL.MECH.SLVR.LT/YT HUS-532140186
...
55
SPRING, RETURN LT HUS-532105709
...
18
Bolts HUS-596564401
...
46
KLIP RING HUS-812000039
...
38
PULLEY.IDLER.FLAT HUS-532123674
...
81
SHAFT ASSY HUS-532161077
...
27
Pins HUS-596029501
...
15
Bolts HUS-595316601
...
42
GSPH HUS-596134901
...
89
CONSOLE HUS-532139964
...
4
RETAINING RING LT HUS-812000028
...
29
PLUNGER CAP HUS-532071673
...
61
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
11
WASH-SHFT PLT LT HUS-532105701
...
58
KEEPER HUS-532127274
...
40
SPACER T HUS-532124965
...
35
BEARING.NYLON HUS-532120183
...
28
ROD BRAKE PARK LT HUS-532145204
...
41
BELT KEEPER LT NLA HUS-532109070
...
74
SPACER LT HUS-532109502
...
39
BOLT HUS-874760644
...
62
COVER, PEDAL (1 2) HUS-532123533
...
84
TIE ROD HUS-532132183
...
48
ARM IDLER HUS-532123789
...
64
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
44
BEARING LT (2 2) HUS-532105706
...
24
NUT.HEX.3/8-16UNC HUS-873220600
...
10
Pins HUS-596029601
...
1
TRANSAXLE.DANA.4360-140.6S.00 HUS-532170269
...
66
KEEPER, BELT HUS-532129921
...
75
WASHER HUS-532121749
...
80
SHIFT ARM HUS-532131487
...
32
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
78
WASHER HUS-532121748
...
45
WASHER LT HUS-532110812
...
86
BUSHING.STEERING.ROD LTB-WSL HUS-532071208
...
25
SPRING, BRAKE ROD HUS-532151332
...
5
STRAP TORQUE HUS-532121520
...
82
SPRING,TORSION HUS-532123782
...
12
Washer 15/32 x 3/4 x 16 Gauge HUS-819151216
...
21
KNOB.DUCKHEAD.1/2 HUS-532121274
...
13
Bolts HUS-596136601
...
3
PULLEY TRANS HUS-532123666
...
72
GSPH HUS-596134901
...
76
E-RING LT HUS-812000001
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
47
PULLEY IDLER HUS-532139245
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
31
KEEPER BELT LH HUS-532127275
...
52
Hardware HUS-596040501
...
34
SHAFT PEDAL FOOT HUS-532149001
...
77
SQUARE KEY HUS-532123583
...
85
NUT LOCK CENTER 1/4 -28 FNTHD HUS-532150360
...
49
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
70
SERVICE KIT KEEPER BELT HUS-531165301
...
88
KLIP RING HUS-812000008
...
30
BRACKET TRANSAXLE HUS-532130807
...
14
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
22
ROD BRAKE HUS-532130804
...
6
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
87
WASHER D HUS-819212016
