Husqvarna YT 160 (HU1642A) (1993-01) Ride Mower

Model: YT 160 (HU1642A) (1993-01)

Back To Assemblies

Save Part Not Listed?
product name

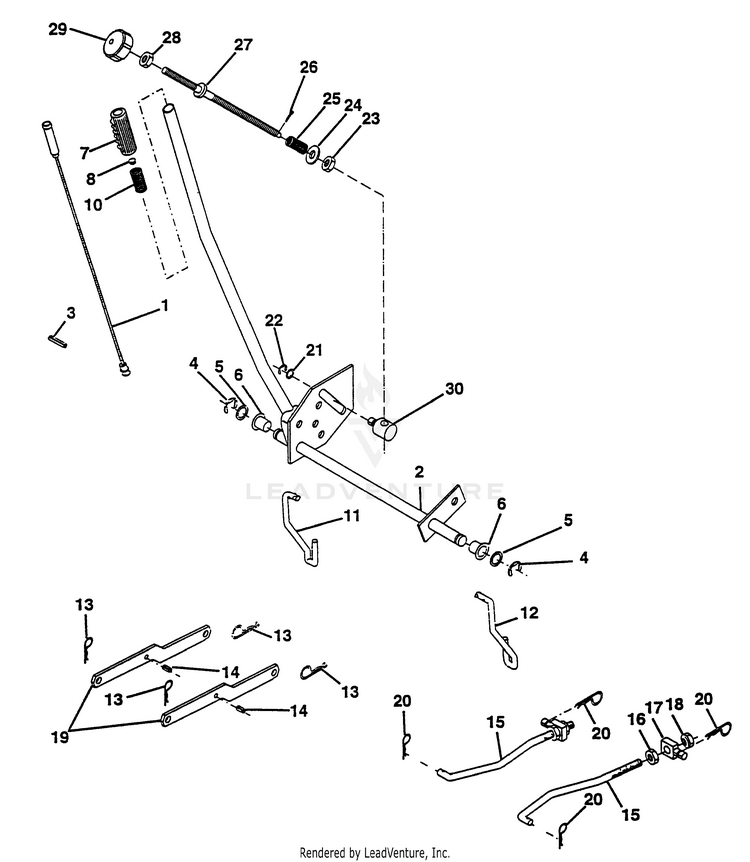

Mower Lift Assembly

...
...
1
WIRE.ASM.INNER.SP HUS-532159461
...
2
SHAFT ASSY HUS-532136969
...
3
PIN GROOVE HUS-532138284
...
4
RETAINING RING LT HUS-812000002
...
5
WASHER D HUS-819212016
...
6
BEARING.NYLON HUS-532120183
...
7
GRIP HANDLE HUS-532125631
...
8
PLUNGER BUTTON KIT HUS-532125925
...
10
SPRING, COMP T HUS-532122512
...
11
LINK.LIFT.LH HUS-532134619
...
12
LIFT LINK RH HUS-532135388
...
13
RETAINER-SPRNG RB HUS-532124670
...
14
PIN HUS-532135563
...
15
FRONT LINK HUS-532127218
...
16
Nuts HUS-596433401
...
17
TRUNNION HUS-532175689
...
18
GSPW NUTS HUS-596135601
...
19
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
20
SPRING RETAINER HUS-532003146
...
21
Washer 15/32 X 3/4 X 16 Ga HUS-819151216
...
22
Ring Klip #t5304-37 HUS-812000037
...
23
NUT T HUS-532110807
...
24
WASHER HUS-819131016
...
25
SPRING HUS-532002876
...
26
Pins HUS-596917601
...
27
ROD LIFT LT HUS-532110729
...
28
NUT.HEX.3/8-16UNC HUS-873220600
...
29
KNOB INF 3/8-16 HUS-532138057
...
30
TRUNION LT HUS-532110810
