Husqvarna YT 160 (HU1642A) (1993-01) Ride Mower

Model: YT 160 (HU1642A) (1993-01)

Back To Assemblies

Save Part Not Listed?
product name

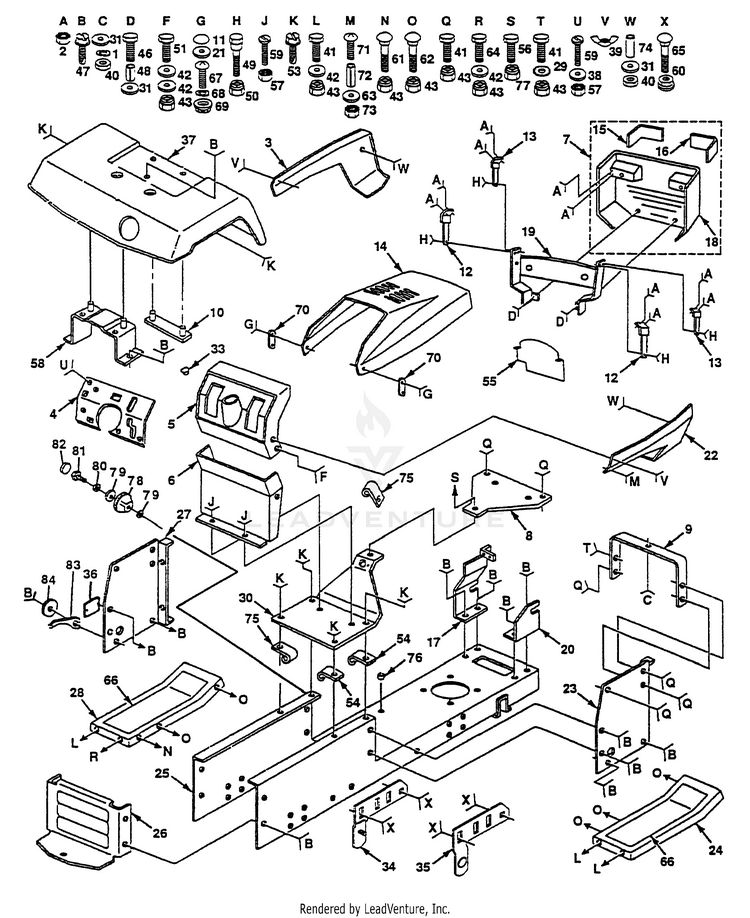

Chassis And Enclosures

...
...
1
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
2
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
3
PANEL LH HUS-532140676
...
4
DASH PLATE HUS-532138334
...
5
DASH HUS-532140452
...
6
DASH LOWER YT NLA HUS-532104805
...
7
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
8
PLATE, BATTERY HUS-532140181
...
9
SUPPORT ASS'Y HUS-532124130
...
10
STRAP HUS-532140675
...
11
SNAP CAP LT HUS-532110356
...
12
STRAP ASSY LT HUS-532106784
...
13
STRAP ASSY LT HUS-532104618
...
14
HOOD.HUSQVARNA.ORANGE HUS-532125454
...
15
LENS LH HUS-532157068
...
16
LENS.RH.HUSQVARNA.YTGT.CL HUS-532157069
...
17
SUPPORT RH YTH HUS-532110853
...
18
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
19
SUPPORT ASS'Y HUS-532124574
...
20
SUPPORT LH YTH HUS-532110852
...
21
WASHER LT HUS-532110357
...
22
PANEL, SIDE RH HUS-532125390
...
23
PANEL DASH RH HUS-532136970
...
24
FOOTREST LT/YT/GT RH HUS-532145243
...
25
CHASSIS HUS-532135034
...
26
KIT.DRAWBAR.SERVICE HUS-532145009
...
27
PANEL DASH LH HUS-532136967
...
28
ROLL PIN NLA HUS-532124899
...
29
Washers HUS-596238701
...
30
SADDLE HUS-532138884
...
31
Washers HUS-596204201
...
33
PLUG-DASH T HUS-532125085
...
34
PIVOT BRACKET LH HUS-532134774
...
35
PIVOT BACKET RH HUS-532134775
...
36
COVER ACCESS HUS-532121794
...
37
FENDER HUS-532124929
...
38
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
39
NUT.WING.LCK.NYL.NOTCH.1/4-20 HUS-532146525
...
40
NUT.HEX..25-20.UNC HUS-532050675
...
41
BOLT HUS-874760612
...
42
GSPH HUS-596134901
...
43
Nuts HUS-596322601
...
46
BOLT HUS-874760440
...
47
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
48
SPACER HUS-532121235
...
49
BOLT HUS-532007605
...
50
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
51
BOLT HUS-874760620
...
53
Bolts HUS-596564001
...
54
CLIP,INSULATOR HUS-532126471
...
55
BAFFLE,REAR UPPER HUS-532126493
...
56
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
57
Hardware HUS-596040501
...
58
BRACKET ASM., FENDER HUS-532183569
...
59
Screw, Machine 5/16-18 UNC x 3/4 HUS-874180512
...
60
Nuts HUS-596322601
...
61
Bolts HUS-596728201
...
62
Bolts HUS-596136001
...
63
WASHER HUS-819070818
...
64
Bolts HUS-596564401
...
65
Bolts HUS-596728201
...
66
PAD FOOTREST T HUS-532108256
...
67
SCREW.PNHD.10-24 HUS-871191008
...
68
LOCKWASHER #10 HUS-810071000
...
69
Nuts HUS-596987401
...
70
LATCH.HOOD. HUS-532109808
...
71
SCREW.PAN.HEAD HUS-874981024
...
72
SPACER LT HUS-532007206
...
73
NUT HUS-873271000
...
74
SPACER NLA HUS-532001260
...
75
CLIP T HUS-532002751
...
76
SNAP BUSHING T HUS-532009151
...
77
Hardware HUS-596040501
...
78
HEIGHT INDICATOR HUS-532123934
...
79
WASHER HUS-819112410
...
80
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
81
Bolts HUS-596580801
...
82
PLUG,HOLE HUS-532123935
...
83
HEIGHT INDICATOR PNTR HUS-532123933
...
84
WASHER T HUS-532120529
