Husqvarna YT 160 (HU1642A) (1993-01) Ride Mower

Model: YT 160 (HU1642A) (1993-01)

Back To Assemblies

Save Part Not Listed?
product name

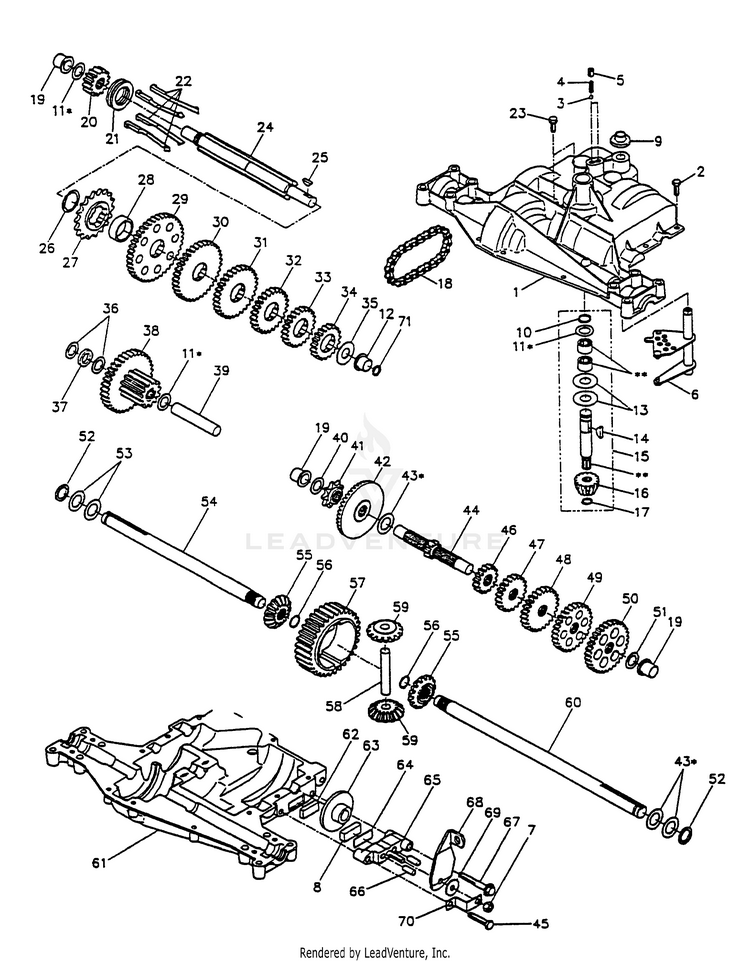

Dana Transaxle

...
...
1
HSG UPPER HUS-532138248
...
2
SCREW SELF TAPPING, LARGE HUS-532002274
...
3
DETENT, BALL HUS-532068003
...
4
SPRING, DETENT HUS-532105904
...
5
SCREW, SET HUS-532105905
...
6
SHIFTER KIT HUS-532134788
...
7
Locknut 5/16-24 HUS-87810500
...
8
PUCK, FRICTION HUS-532120951
...
9
BOOT, SHIFTER HUS-532134399
...
10
RETAINING RING LT HUS-812000028
...
11
SHIM.KIT.DANA.4689 Use in combinations to maintain proper clearances. HUS-532134793
...
12
FLANGE, BEARING HUS-532138240
...
13
WASHER.PLAIN..632X1.38X.046 HUS-532120415
...
14
Key, Woodruff, #9 HUS-532002257
...
15
Assembly, Kit, Input Shaft HUS-532138233
...
16
INPUT.SHAFT.BEVEL.6205 HUS-532167148
...
17
RING RETAINING HUS-532105909
...
18
CHAIN 24 PITCH LT HUS-532105910
...
19
BEARING, FLANGE LT HUS-532105911
...
20
Gear, Spur, 14 Teeth HUS-532138242
...
21
COLLAR, CLUTCH HUS-532138246
...
22
KIT ASM CLUTCH KEY HUS-532138238
...
23
SCREW, SELF TAPPING W/SEALER HUS-532134791
...
24
Shaft, Intermediate HUS-532138245
...
25
KEY, WOODRUFF, #61 HUS-532002244
...
26
RING, RETAINING LT HUS-532105916
...
27
SPROCKET 18T HUS-532120470
...
28
SPACER HUS-532110070
...
29
Gear, Spur, 40 Teeth HUS-532109253
...
30
Gear, Spur, 35 Teeth HUS-532109254
...
31
GEAR, SPUR 30 TEETH HUS-532120405
...
32
GEAR, SPUR 25 TEETH HUS-532108980
...
33
GEAR, SPUR 22 TEETH HUS-532120406
...
34
GEAR HUS-532134796
...
35
WASHER, PLAIN .640 X 1.37X.061 HUS-532105925
...
36
WASHER 025 HUS-532002232
...
37
SPACER HUS-532108978
...
38
GEAR COMB LT NLA HUS-532108981
...
39
SHAFT IDLER HUS-532124639
...
40
WASHER HUS-532003422
...
41
SPROCKET 9T LT HUS-532105928
...
42
GEAR, SPUR 42T YT HUS-532106605
...
43
SHIM Use in combinations to maintain proper clearances. HUS-532134394
...
44
DRIVE SHAFT HUS-532124640
...
45
SCREW, SELF TAPPING LARGE HUS-532106596
...
46
Gear, Spur, 15 Teeth HUS-532106151
...
47
GEAR, SPUR 20 TEETH HUS-532120407
...
48
GEAR, SPUR 25 TEETH HUS-532106589
...
49
GEAR, SPUR 28 TEETH HUS-532120408
...
50
GEAR, SPUR 31 TEETH HUS-532105937
...
51
WASHER, PLAIN .632 X1.00X.060 HUS-532002226
...
52
NEOPRENE.WASHER.DANA HUS-532134401
...
53
WASHER, PLAIN .758 X 1.25X.031 HUS-532002264
...
54
KIT.AXLE.LH.4997.DANA HUS-532154658
...
55
GEAR, MITER 15 TEETH HUS-532120409
...
56
RING, RETAINING HUS-532105941
...
57
GEAR LT HUS-532110071
...
58
SHAFT, CROSS HUS-532120952
...
59
GEAR, MITER 15 TEETH HUS-532106592
...
60
Axle, R.H. HUS-532120475
...
61
HOUSING LOWER HUS-532138247
...
62
PUCK, FRICTION HUS-532120961
...
63
BRAKE DISC T HUS-532007294
...
64
SPACER LT HUS-532108989
...
65
JAW BRAKE HUS-532164670
...
66
PIN HUS-532120954
...
67
SCREW, SELF TAPPING, LARGE HUS-532134799
...
68
LEVER ACTUATOR HUS-532108992
...
69
WASHER, PLAIN .321 X 1.00X.055 HUS-532108996
...
70
BRACKET, ANTI ROTATION HUS-532120956
...
71
SQUARE RING HUS-532138241
...
72
SHELL, GREASE #50416 HUS-532126976
