Husqvarna YT 120 (1990-01) Ride Mower

Model: YT 120 (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

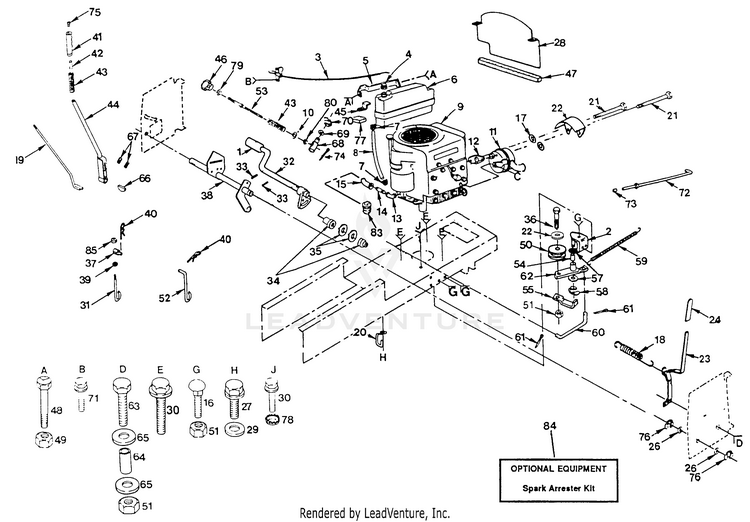

Power And Mechanical Controls Group

...
...
1
PAD, FOOT PEDAL HUS-510089501
...
2
BRKT ASM HUS-532123102
...
3
CONTROL.THROTTLE HUS-532121275
...
4
FUEL CAP LT HUS-532008504
...
5
SUPT TANK FUEL HUS-532121281
...
6
FUEL TANK NLA HUS-532121280
...
7
HOSE CLAMP HUS-532123487
...
8
HOSE.1/4".LOW.PERM.FUEL.LN.8" HUS-587044808
...
9
Engine Briggs & Stratton, Type No. 0412-01 HUS-532124136
...
10
WASHER HUS-819131016
...
11
MUFFLER HUS-532121304
...
12
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
13
STREET ELBOW LT HUS-813310300
...
14
Std. Pipe Nipple 3/8-18 NPT x 3 1/2 HUS-813280328
...
15
VALUE.OIL.DRAIN HUS-532428287
...
16
Bolt, Carriage 3/8-16 x 3/4 HUS-872140606
...
17
Washers HUS-596040101
...
18
SPRING.EXT.8.5" HUS-532102727
...
19
ROD ASS'Y LEVER HUS-532121719
...
20
KEEPER BELT ENGLH HUS-532121218
...
21
BOLT HUS-532121744
...
22
HEAT SHIELD HUS-532121742
...
23
HANDLE YT HUS-532106983
...
24
GRIP-HANDLE T HUS-532124917
...
25
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
26
Washer 29/32 x 1-1/4 x 16 Ga. HUS-819292016
...
27
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
28
BAFFLE,VERTICAL NLA HUS-532126423
...
29
GSPH HUS-596134901
...
30
BOLT HUS-874760620
...
31
LINK ADJ T HUS-532110448
...
32
SHAFT FOOT PEDAL HUS-532122424
...
33
PIN.ROLL.3/16 X 1" HUS-532001572
...
34
BEARING.NYLON HUS-532120183
...
35
Washers HUS-596933401
...
36
BOLT HUS-874760644
...
37
LIFT TRUNION HUS-532132793
...
38
SHAFT T HUS-532120174
...
39
NUT.ASF.HEX.7/16 HUS-873610700
...
40
RETAINER-SPRNG RB HUS-532124670
...
41
GRIP HUS-532109413
...
42
PLUNGER BUTTON KIT HUS-532125925
...
43
SPRING HUS-532002876
...
44
LEVER LIFT (Inc. Key No. 19) HUS-532121718
...
45
BRACE-TANK LT HUS-532104799
...
46
HDLE ADJ LIFT HUS-532121891
...
47
FOAM-STRIP LT HUS-532105037
...
48
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
49
Hardware HUS-596040501
...
50
PULLEY IDLER HUS-532139245
...
51
Nuts HUS-596322601
...
52
LIFT LINK LT HUS-532110029
...
53
ROD LIFT LT HUS-532110729
...
54
BEARING LT (2 2) HUS-532105706
...
55
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
57
WASHER LT HUS-532110812
...
58
KLIP RING HUS-812000039
...
59
SPRING, RETURN LT HUS-532105709
...
60
LINK.CLUTCH.7.66.2005 HUS-532199652
...
61
Pins HUS-596029501
...
62
ARM IDLER HUS-532123789
...
63
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
64
BUSHING YT HUS-532108056
...
65
Washer 3/8 x 1 x 12 Ga. HUS-819121612
...
66
KEY STD HUS-532124997
...
67
SCREW HUS-823180606
...
68
TRUNION LT HUS-532110810
...
69
Washer 15/32 x 3/4 x 16 Ga. HUS-819151216
...
70
Klip Ring HUS-812000037
...
71
Bolts HUS-596582501
...
72
BRAKE PARK ROD HUS-532133261
...
73
PLUNGER CAP HUS-532071673
...
74
Pins HUS-596917601
...
75
PLUNGER BUTTON KIT HUS-532125925
...
76
E-RING HUS-812000022
...
77
PAD-SPACER T HUS-532006431
...
78
Washers HUS-596238701
...
79
NUT.HEX.3/8-16UNC HUS-873220600
...
80
NUT T HUS-532110807
...
83
PLUG T HUS-813290300
...
84
SPARK ARREST HUS-532121851
...
85
NUT.ASF.HEX.7/16 HUS-873610700
