Husqvarna YPLR120BR (1999 & Before) Tractor

Model: YPLR120BR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

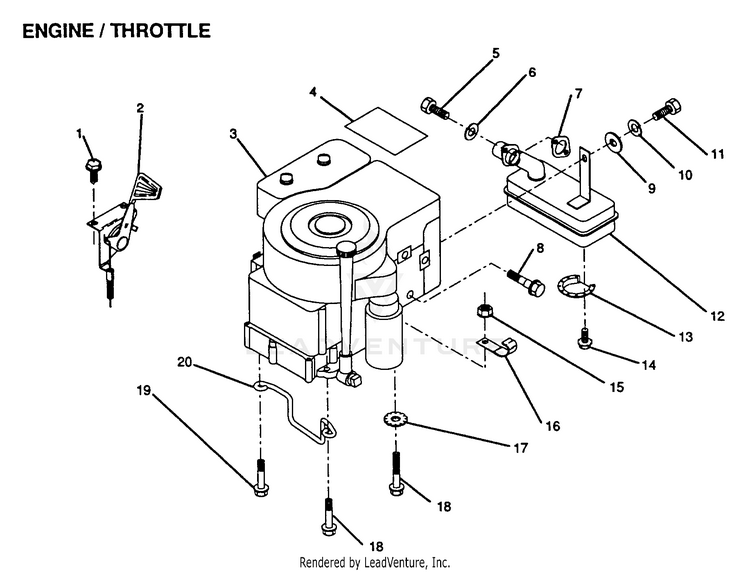

ENGINE/THROTTLE

...
...
1
SCREW HUS-17720408
...
2
SUB= 132752 HUS-122014X
...
3
ENGINE BRIGGS AND STRATTON HUS-124136X
...
4
DECAL.ENG.271967 HUS-120601X
...
5
SCREW HUS-71070512
...
6
LOCKWASHER HUS-10040500
...
7
SUB= 272293 HUS-1407J
...
8
BOLT T HUS-121094X
...
9
WASHER HUS-19101216
...
10
LOCKWASHER HUS-10040400
...
11
SUB= 74780414 HUS-74780412
...
12
SUB= 137437 HUS-123676X
...
13
DEFLECTOR.222573 HUS-101326L
...
14
SUB= 17030814 HUS-17030808
...
15
NUT HUS-73510600
...
16
CLIP T HUS-2751R
...
17
LOCKWASHER HUS-11050600
...
18
SCREW LT HUS-17490632
...
19
SCREW LT HUS-17490624
...
20
SUB= 126636X HUS-123401X
