Husqvarna YPLR110BR (1999 & Before) Tractor

Model: YPLR110BR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

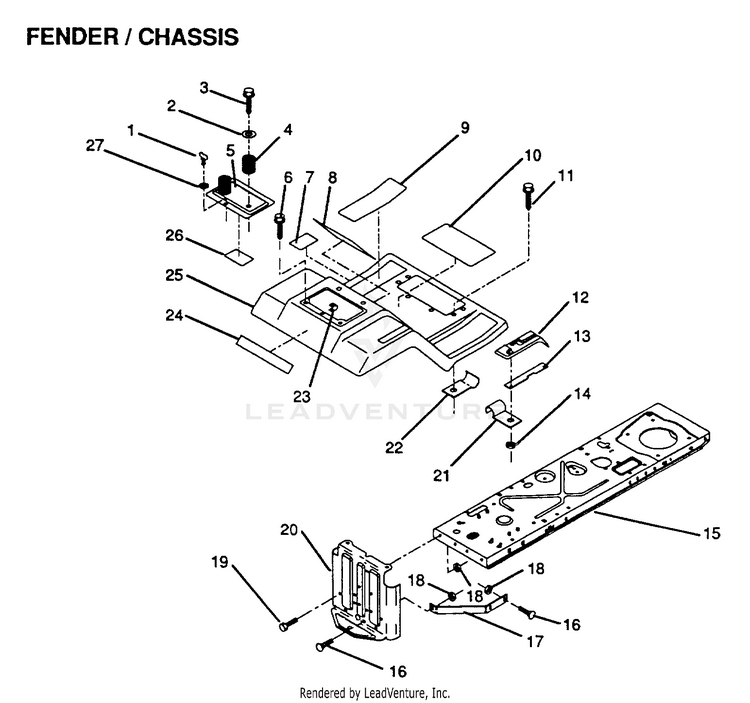

FENDER/CHASSIS

...
...
1
STUD.1/4.TURN HUS-123650X
...
2
WASHER HUS-19132012
...
3
SCREW HUS-17490612
...
4
SPRING COMPRESSIO HUS-124181X
...
5
SUB= 122008X425 HUS-122008X388
...
6
SCREW LT HUS-17490508
...
7
DECAL DRIVE HUS-123408X
...
8
DECAL HUS-120822X
...
9
PAD FOOTREST HUS-124144X
...
10
SUB= 138269 HUS-123637X
...
11
SCREW HUS-17490512
...
12
SUB= 126993X HUS-126220X
...
13
"SHIFT LOCK, BAR" HUS-124307X
...
14
PAL NUT HUS-120579X
...
15
FRAME ASS'Y HUS-123645X
...
16
BOLT HUS-72140506
...
17
"BRACE,DRAWBAR " HUS-123379X
...
18
SUB= 73690500 HUS-73680500
...
19
BOLT HUS-74760512
...
20
DRAWBAR HUS-121904X
...
21
SUB= 2751R HUS-6798R
...
22
SUB= 2751R HUS-6794R
...
23
RECEPTACLE LT HUS-105839X
...
24
NLA HUS-123689X
...
25
SUB= 124332X425 HUS-124332X388
...
26
DECAL HUS-121549X
...
27
RETAINER LT HUS-105838X
