Husqvarna YP1946B (1998) Tractor

Model: YP1946B (1998)

Back To Assemblies

Save Part Not Listed?
product name

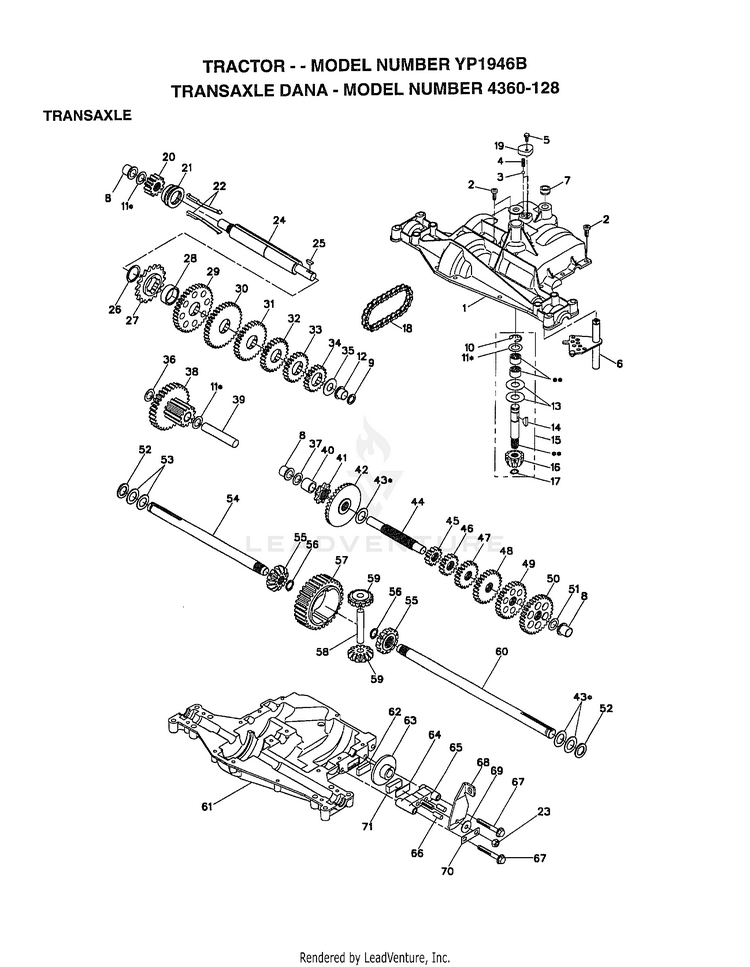

TRANSAXLE

...
...
1
HOUSING.UPPER(5305-P) HUS-160955
...
2
SUB= 74760412 HUS-2274J
...
3
SUB= 68003 HUS-134400
...
4
"SPRING, DETENT LT" HUS-105904X
...
5
SCREW.TAPPING.1/4-20X.734 HUS-160940
...
6
KIT SHIFTER ASM HUS-138235
...
7
SUB= 108776X HUS-108727X
...
8
SUB= 105911X HUS-148266
...
9
SEAL.OIL.DAN.5508 HUS-148269
...
10
RETAINING RING LT HUS-2225J
...
11
ASM KIT SHIM 4689 HUS-134793
...
12
BEARING.FLNG.5511 HUS-148268
...
13
WASHER T HUS-120415X
...
14
KEY WOODRUFF-DANA HUS-142674
...
15
INPUT SHAFT KIT 6250 HUS-161563
...
16
PINION.BEVEL.12T(5620) HUS-161564
...
17
"RING,RETAINING LT" HUS-105909X
...
18
"CHAIN,24 PTCH LT" HUS-105910X
...
19
COVER.DETENT.(5584) HUS-160942
...
20
GEAR.SPUR.12T.(5627) HUS-160943
...
21
CLUTCH.COL.5467 HUS-148267
...
22
ASM KIT CLTCH KEY HUS-138236
...
23
NUT.LOCK.5/16-24 HUS-73810500
...
24
SHAFT INTERM DANA HUS-142676
...
25
WOODRUFF KEY HUS-2244J
...
26
"RING,RETAINING LT" HUS-105916X
...
27
SPROCKET 18T T HUS-120470X
...
28
SPACER YT HUS-110070X
...
29
GEAR SPUR 37 TTH HUS-142677
...
30
GEAR SPUR 35 TTH HUS-142681
...
31
GEAR SPUR 30T HUS-124644X
...
32
GEAR 25T LT HUS-108980X
...
33
GEAR SPUR 22 TT HUS-120406X
...
34
SPUR GEAR 19T HUS-134796
...
35
"WASHER, PLAIN LT" HUS-105925X
...
36
WASHER 045 HUS-2228J
...
37
WASHER 031 HUS-2231J
...
38
ASSY.GEAR.6153 12T&30T HUS-160944
...
39
SHAFT IDLER HUS-124639X
...
40
SPACER T HUS-120472X
...
41
SPROCKET 9T LT HUS-105928X
...
42
GEAR.BEVEL.36T(5621) HUS-161565
...
43
ASM KIT SHIM HUS-134394
...
44
SHAFT T HUS-120473X
...
45
GEAR SPUR 12 TTH HUS-142678
...
46
SUB= 148305 HUS-143697
...
47
GEAR SPUR 20T HUS-124641X
...
48
"GEAR, SPUR 25T LT" HUS-106589X
...
49
GEAR 28T T HUS-120408X
...
50
"GEAR, SPUR 31T LT" HUS-105937X
...
51
WASHER 060 HUS-2226J
...
52
NEOPRENE WASHER HUS-134401
...
53
WASHER 031 HUS-2264J
...
54
AXLE.LH(5528-1) HUS-160946
...
55
MITER 5270 12T.SPLINED HUS-160947
...
56
RING.RETAINING.(5270) HUS-160948
...
57
SUB= 120478X HUS-110071X
...
58
SHAFT T HUS-120952X
...
59
MITER 5623.12T.IDLER HUS-160949
...
60
AXLE.RH.(5528-2) DANA HUS-160950
...
61
HOUSING.KIT (6088) HUS-160951
...
62
PUCK T HUS-120961X
...
63
BRAKE DISC. T HUS-7294J
...
64
SPACER LT HUS-108989X
...
65
JAW, BRAKE HUS-160952
...
66
PIN T HUS-120954X
...
67
SCREW.(5562) .5/16-18X2.35 HUS-160953
...
68
SUB= 108992X HUS-138244
...
69
WASHER LT HUS-108996X
...
70
BRACKET, ANTI-ROTATION HUS-160954
...
71
PUCK T HUS-120951X
...
72
SUB= 126976X HUS-120416X
