product name

Husqvarna Y1950A (1995) Tractor

Model: Y1950A (1995)

Back To Assemblies

Save Part Not Listed?
product name

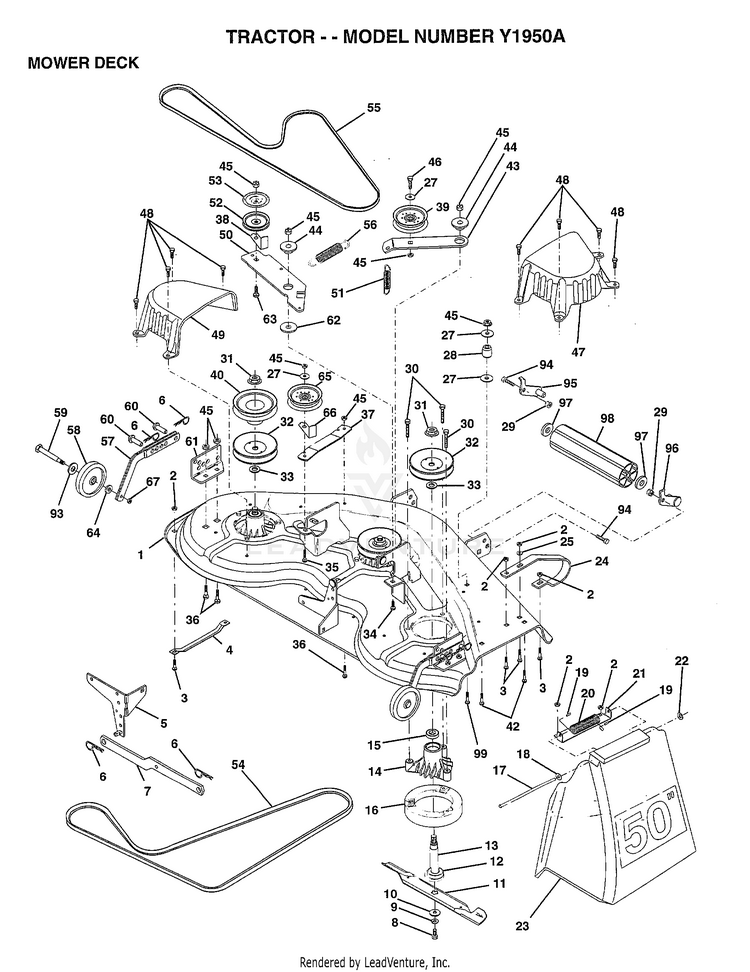

MOWER DECK

...
...
1
DECK ASM MWR 50VT HUS-136457
...
2
SUB= 73690500 HUS-73680500
...
3
SUB= 72270506 HUS-72110506
...
4
RUNNER-LH M HUS-7631J
...
5
BRKT.ASM.SW.44/50 HUS-138457
...
6
SUB= 85902 HUS-4939M
...
7
SUB= 130833 HUS-130832
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
WASHER.HARD.BLADE HUS-140296
...
11
"BLADE.50"" HD" HUS-137380
...
12
BEARING.BALL HUS-129895
...
13
SHAFT.ASM.W/BRNG HUS-137553
...
14
HOUSING.MAND.44.V HUS-137152
...
15
BEARING HUS-110485X
...
16
STRIPPER RND MWR HUS-140329
...
17
ROD-HINGE T HUS-106735X
...
18
WASHER HUS-19111016
...
19
CAP-SLEEVE LT HUS-105304X
...
20
SPRING TORSION HUS-123713X
...
21
BRKT DEFLECTOR HUS-137607
...
22
NUT PUSH M HUS-110452X
...
23
DEFLECTOR HUS-110509X
...
24
"RUNNER RH 50"" DK" HUS-136320
...
25
WASHER M HUS-19111216
...
27
WASHER HUS-19131316
...
28
SUB= 532132823 HUS-132823
...
29
NUT HUS-73800600
...
30
SUB= 157722 HUS-138776
...
31
SUB= 139729 HUS-137266
...
32
SUB= 153535 HUS-129861
...
33
WASHER HUS-129963
...
34
BOLT.3/8-14X1.25 HUS-72140610
...
35
BOLT HUS-72110616
...
36
BOLT D HUS-72110608
...
37
STIFFENER.ARM.IDL HUS-137166
...
38
SUB= 918137554 HUS-137554
...
39
FLAT IDLER PULLEY HUS-131494
...
40
"PULLEY.DRIVEN.44""" HUS-136572
...
42
BOLT HUS-72140506
...
43
"ARM.IDLER.SEC.44""" HUS-136460
...
44
SPACER RETAINER HUS-122052X
...
45
SUB= 73690600 HUS-73680600
...
46
BOLT HUS-74760628
...
47
"COVER.MAND.RH.44""" HUS-137200
...
48
SCREW.1/4-20X5/8 HUS-137729
...
49
COVER.MANDREL.LH HUS-136574
...
50
ARM.IDLER.PRIMARY HUS-137272
...
51
"SPRING.SEC.44""VEN" HUS-137273
...
52
PULLEY.IDLER.VGRO HUS-139245
...
53
SHIELD.IDLER.44.V HUS-137789
...
54
BELT V PRIM 50 HUS-139573
...
55
BELT-V.SEC.46.KEL HUS-144959
...
56
SPRING.EXT.DECK. HUS-138687
...
57
BAR.ASM.GUAGE.WHL HUS-136577
...
58
WHEEL.GAGE.BLK.PL HUS-105455X
...
59
BOLT M HUS-4898H
...
60
PIN.CLEVIS HUS-139031
...
61
BRACKET.GUAGE.WHL HUS-136573
...
62
HARDENED WASHER HUS-133943
...
63
BOLT.3/8-16X1.50 HUS-72110612
...
64
WASHER HUS-19121414
...
65
IDLER-FLAT T HUS-102403X
...
66
SUB= 918139622 HUS-139622
...
67
LOCKNUT HUS-73930600
...
93
WASHER HUS-19171512
...
94
BOLT HUS-74760616
...
95
SUB= 532132274 HUS-132274
...
96
SUB= 532132273 HUS-132273
...
97
WASHER HUS-19171416
...
98
SUB= 532132264 HUS-132264
...
99
BOLT HUS-72110614
...
xx
MANDREL SERV ASM HUS-143651
...
xx
"DECK.MWR.SERV.50""" HUS-141051
