Husqvarna Y18H44C (1993) Tractor

Model: Y18H44C (1993)

Back To Assemblies

Save Part Not Listed?
product name

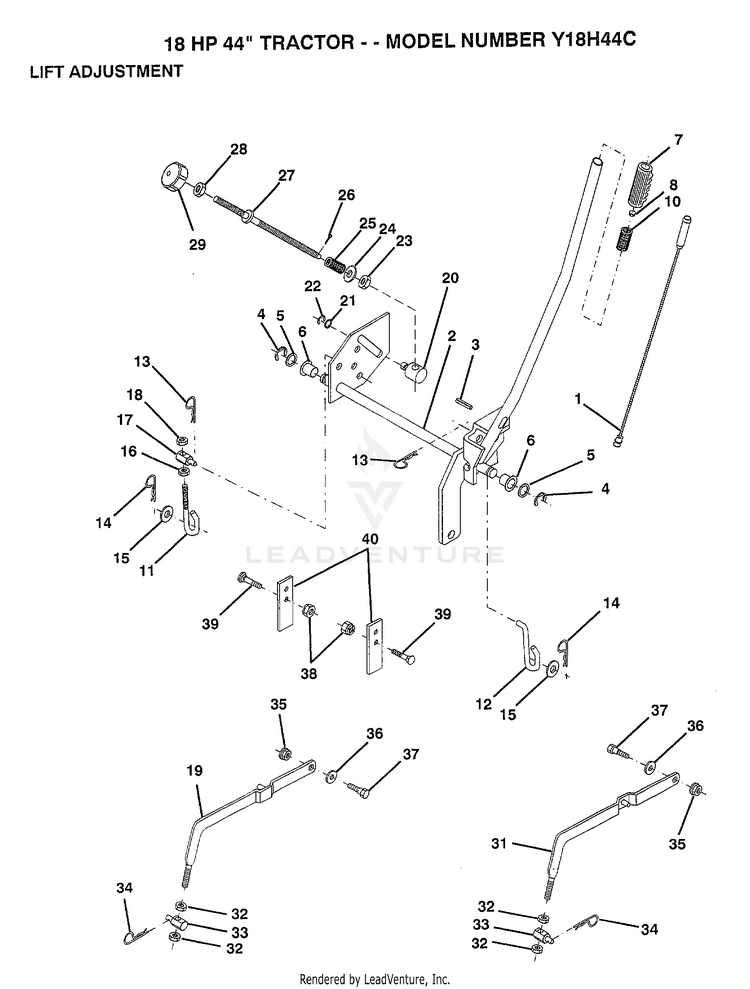

18HP 44" TRACTOR LIFT ADJUSTMENT

...
...
1
WIRE.ASM.INNER HUS-136971
...
2
SHAFT.ASM.LIFT.RH HUS-136969
...
3
PIN GROOVE HUS-138284
...
4
SUB= 2225J HUS-12000002
...
5
WASHER HUS-19211416
...
6
NYLON BEARING HUS-120183X
...
7
GRIP HUS-109413X
...
8
SUB= 125925X HUS-124526X
...
10
SUB= 532122512 HUS-122512X
...
11
PIVOT PIN T HUS-110448X
...
12
LIFT LINK LT HUS-110029X
...
13
SUB= 85902 HUS-4939M
...
14
SPRING.RETAINER HUS-4921H
...
15
WASHER T HUS-19171516
...
16
NUT HUS-73360700
...
17
SUB= 132793 HUS-110447X
...
18
NUT LOCK YTH HUS-73710700
...
19
LH SUSP ARM ASM HUS-121599X
...
20
TRUNION LT HUS-110810X
...
21
WASHER HUS-19151216
...
22
KLIP RING HUS-12000037
...
23
NUT T HUS-110807X
...
24
WASHER HUS-19131016
...
25
SPRING T HUS-2876H
...
26
SUB= 3145 HUS-76020308
...
27
ROD LIFT LT HUS-110729X
...
28
NUT HUS-73350600
...
29
KNOB INF 3/8-16 HUS-138057
...
31
RH SUSP ARM ASM HUS-121598X
...
32
NUT HUS-73220800
...
33
SUB= 130171 HUS-106308X
...
34
SPRING H HUS-9135R
...
35
NUT SPECIAL T HUS-73980600
...
36
WASHER T HUS-110739X
...
37
"BOLT, SHOULDER LT" HUS-105848X
...
38
SUB= 73690600 HUS-73680600
...
39
SUB= 72110608 HUS-72140608
...
40
UPSTOP HUS-121252X
Schematic Image Zoomed
