Husqvarna Y18H44A (1992) Tractor

Model: Y18H44A (1992)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
PEDAL COVER T HUS-8883R
...
3
MUFFLER HUS-125890X
...
4
"CONTROL,THROTTLE" HUS-133024
...
5
BOLT HUS-74760410
...
7
LOCKWASHER HUS-10040400
...
8
WASHER PM HUS-19091216
...
11
WASHER HUS-19131016
...
14
WASHER HUS-19131316
...
16
PIPE NIPPLE LT HUS-13280336
...
17
ELBOW HUS-13200300
...
19
MUFFLER CLAMP HUS-122758X
...
20
LOCKWASHER HUS-11050600
...
21
LEVER ROD LT HUS-121006X
...
23
TRUNION LT HUS-110810X
...
24
WASHER HUS-19151216
...
25
KLIP RING HUS-12000037
...
26
SCREW LT HUS-17720410
...
27
BRAKE PARK ROD HUS-133261
...
28
PLUNGER CAP T HUS-71673
...
29
WASHER HUS-19292016
...
33
SUB= 3145 HUS-76020308
...
34
SCREW LT HUS-17490624
...
35
PIVOT PIN T HUS-110448X
...
36
SUB= 149001 HUS-122424X
...
37
SUB= 2882J HUS-1572H
...
38
NYLON BEARING HUS-120183X
...
40
SUB= 132793 HUS-110447X
...
41
LIFT SHAFT ASM HUS-131925
...
42
NUT T HUS-110807X
...
43
SUB= 85902 HUS-4939M
...
44
GRIP HUS-109413X
...
45
SUB= 125925X HUS-122364X
...
46
SPRING T HUS-2876H
...
47
SUB= 123096X HUS-121002X
...
48
WASHER LT HUS-19211616
...
49
SUB= 138057 HUS-100734K
...
50
E-RING HUS-12000022
...
52
SUB= 125925X HUS-124526X
...
54
ARM IDLER HUS-123789X
...
55
SUB= 139245 HUS-127783
...
56
SUB= 73690600 HUS-73680600
...
57
LIFT LINK LT HUS-110029X
...
58
ROD LIFT LT HUS-110729X
...
59
"LY, BEARING" HUS-105706X
...
60
RETAIN BELT HUS-123205X
...
61
SUB= 74930624 HUS-74760624
...
62
WASHER LT HUS-110812X
...
63
KLIP RING HUS-12000039
...
64
"SPRING, RETURN LT" HUS-105709X
...
65
"LINK, CLUTCH T" HUS-105710X
...
66
COTTER PIN HUS-76020412
...
73
NUT HUS-73360700
...
74
SCREW HUS-74570512
...
75
SUB= 532128144 HUS-128144
...
77
NUT HUS-73350600
...
79
SUB= 532125891 HUS-125891X
...
81
"BOLT,HEX" HUS-74780624
...
84
NUT LOCK YTH HUS-73710700
...
85
SUB= 532137180 HUS-121851X
...
88
NLA HUS-19060916
...
89
SUB= 17030814 HUS-17030808

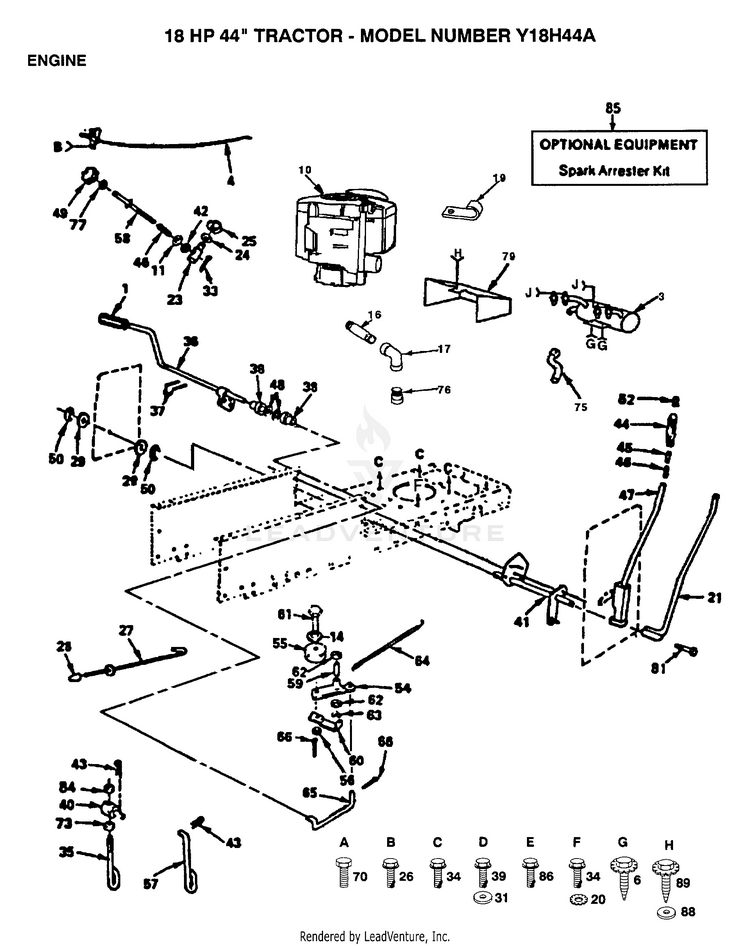

Schematic Image Zoomed
