Husqvarna Y1844F (1995) Tractor

Model: Y1844F (1995)

Back To Assemblies

Save Part Not Listed?
product name

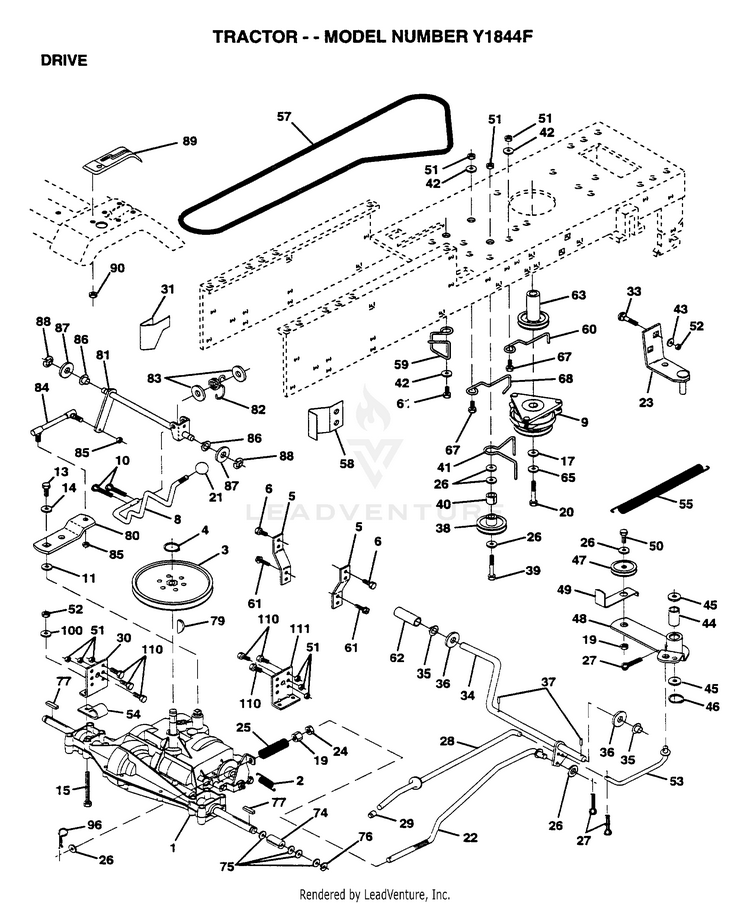

DRIVE

...
...
1
TRANSAX. PRLES. HUS-138788
...
2
SPRING.BRAKE.RETU HUS-146682
...
3
PULLEY TRANSAXLE HUS-121327X
...
4
RING HUS-12000004
...
5
STRAP TORQUE HUS-123787X
...
6
SCREW HUS-17490512
...
8
SUB= 141002 HUS-123781X
...
9
SUB= 142600 HUS-137140
...
10
PIN COTTER 1/8 HUS-76020416
...
11
WASH-SHFT PLT LT HUS-105701X
...
13
BOLT.1/4-28.W/PAT HUS-74550412
...
14
WASHER PM HUS-19091216
...
15
BOLT HEX HUS-74780544
...
17
WASHER HUS-126197X
...
19
NUT HUS-73800600
...
20
SUB= 150280 HUS-71170768
...
21
KNOB T (1/2-HOLE) HUS-106933X
...
22
ROD.ASM.BK.44.MWR HUS-145340
...
23
BRACKET.ASM.MTG HUS-137141
...
24
NUT HUS-73350600
...
25
"SPRING,ROD BRAKE" HUS-126909X
...
26
WASHER HUS-19131316
...
27
COTTER PIN HUS-76020412
...
28
ROD.BRAKE.PARK.LT HUS-145204
...
29
PLUNGER CAP T HUS-71673
...
30
BRKT TRANS LH HUS-123780X
...
31
KEEPER BELT LH HUS-123791X
...
33
BOLT HUS-72140506
...
34
SUB= 149001 HUS-122424X
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
SUB= 2882J HUS-1572H
...
38
PULLEY.IDLER.FLAT HUS-123674X
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
41
BELT KEEPER LT HUS-109070X
...
42
WASHER HUS-19131312
...
43
WASHER T HUS-19111012
...
44
"LY, BEARING" HUS-105706X
...
45
WASHER LT HUS-110812X
...
46
KLIP RING HUS-12000039
...
47
SUB= 139245 HUS-127783
...
48
ARM IDLER HUS-123789X
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
52
SUB= 73690600 HUS-73680600
...
52
NUT HUS-73800500
...
53
"LINK, CLUTCH T" HUS-105710X
...
54
CLIP T HUS-2751R
...
55
"SPRING, RETURN LT" HUS-105709X
...
57
BELT.GRDRV.94.75 HUS-123796X
...
58
"KEEPER,BELT RH" HUS-123792X
...
59
KEEPER BELT CNTSP HUS-140312
...
60
KEEPER BELT ENGLH HUS-121218X
...
61
SCREW HUS-17490612
...
62
PEDAL COVER T HUS-8883R
...
63
PULLEY ENGINE HUS-136906
...
65
LOCKWASHER HUS-10040700
...
67
BOLT HUS-74760616
...
68
"KEEPER,BLT ENG LT" HUS-105730X
...
74
SPACER HYT HUS-108097X
...
75
WASHER HUS-123800X
...
76
E RING HYT HUS-12000053
...
77
SQ KEY STD HUS-9396E
...
79
SUB= 2228M1 HUS-2228M
...
80
"ARM,SHIFT" HUS-123794X
...
81
"SHAFT,SHIFTER" HUS-123772X
...
83
WASHER HUS-19171216
...
84
"ROD,TIE " HUS-123793X
...
85
NUT 1/4-28 HUS-73530400
...
86
BUSHING HUS-71208
...
87
WASHER D HUS-19212016
...
88
KLIP RING HUS-12000008
...
89
CONSOLE SHIFTER HUS-139992
...
90
NUT HUS-124346X
...
96
RETAINER M HUS-4497H
...
100
WASHER M HUS-19111216
...
110
SUB= 74780612 HUS-74760612
...
111
BRKT TRANS RH HUS-123776X
