Husqvarna Y1844A (1992) Tractor

Model: Y1844A (1992)

Back To Assemblies

Save Part Not Listed?
product name

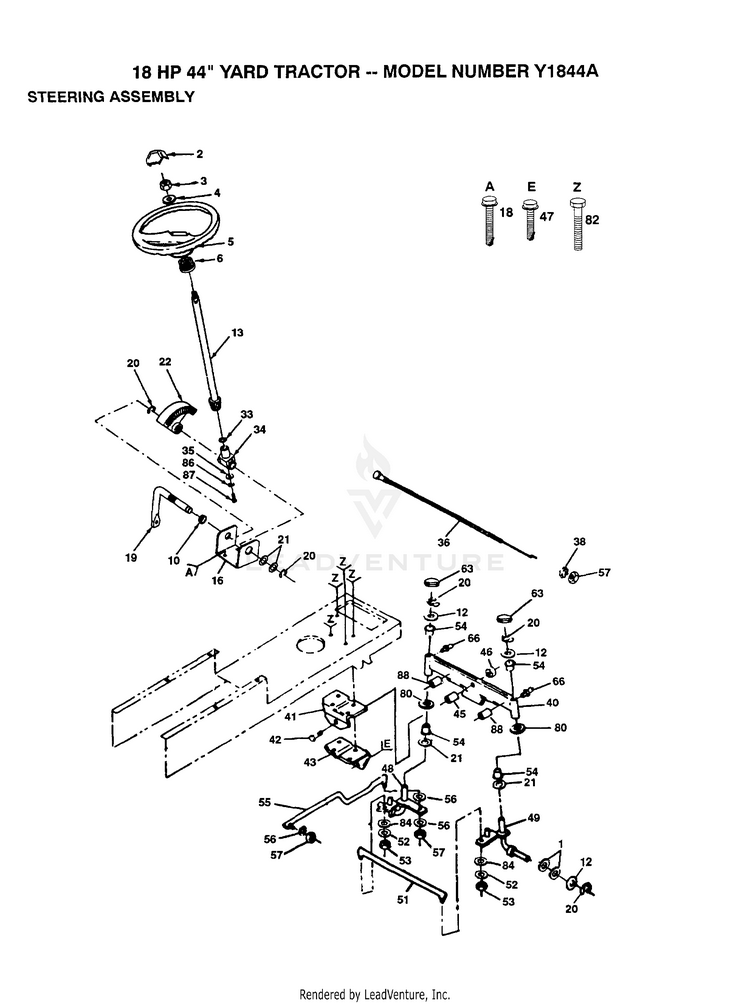

STEERING

...
...
1
WASHER HUS-121749X
...
2
INSERT STEERING HUS-121584X
...
3
SUB= 73360800 HUS-73940800
...
4
WASHER HUS-100712K
...
5
SUB= 150546 HUS-121472X
...
6
ADAPTER LT HUS-100711L
...
10
NYLINER T HUS-109816X
...
12
WASHER HUS-121748X
...
13
SUB= 156544 HUS-128762
...
16
"BRKT,STEERING" HUS-124036X
...
18
SCREW HUS-17490612
...
19
SUB= 918127501 HUS-127501
...
20
RING HUS-12000029
...
21
WASHER .T HUS-6266H
...
22
SUB= 136874 HUS-124034X
...
33
THRUST WASHER HUS-57079
...
34
SUPPORT.SHAFT HUS-124035X
...
35
SUB= 532126684 HUS-126684X
...
36
CHOKE CONTROL HUS-132781
...
38
LOCKWASHER HUS-11050600
...
40
FRONT AXLE HUS-108075X
...
41
SUPPORT-SADDL T HUS-105663X
...
42
BOLT LT HUS-74761060
...
43
SUPPORT.SADDLE.FT HUS-105664X
...
45
BEARING HUS-110438X
...
46
LOCKNUT HUS-7360100
...
47
SCREW LT HUS-17490508
...
48
SUB= 532130460 HUS-130460
...
49
SPINDLE ASM RH HUS-130459
...
51
TIE ROD HUS-130467
...
52
LOCKWASHER HUS-10040500
...
53
NUT.LOCK.5/16-24 HUS-73810500
...
54
COL. SRTG. BEAR. HUS-3366R
...
55
SUB= 532130468 HUS-130468
...
56
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
57
SUB= 7810H HUS-73610600
...
63
CAP HUS-121232X
...
66
ZERK M HUS-6855M
...
80
WASHER HUS-19272016
...
82
SCREW SPECIAL HUS-122819X
...
84
WASHER M HUS-19111216
...
86
LOCKWASHER HUS-10040400
...
87
"SCREW,SPECIAL" HUS-71070410
...
88
AXLE PIN HUS-132624
