Husqvarna Y155H92RBA (1999 & Before) Tractor

Model: Y155H92RBA (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

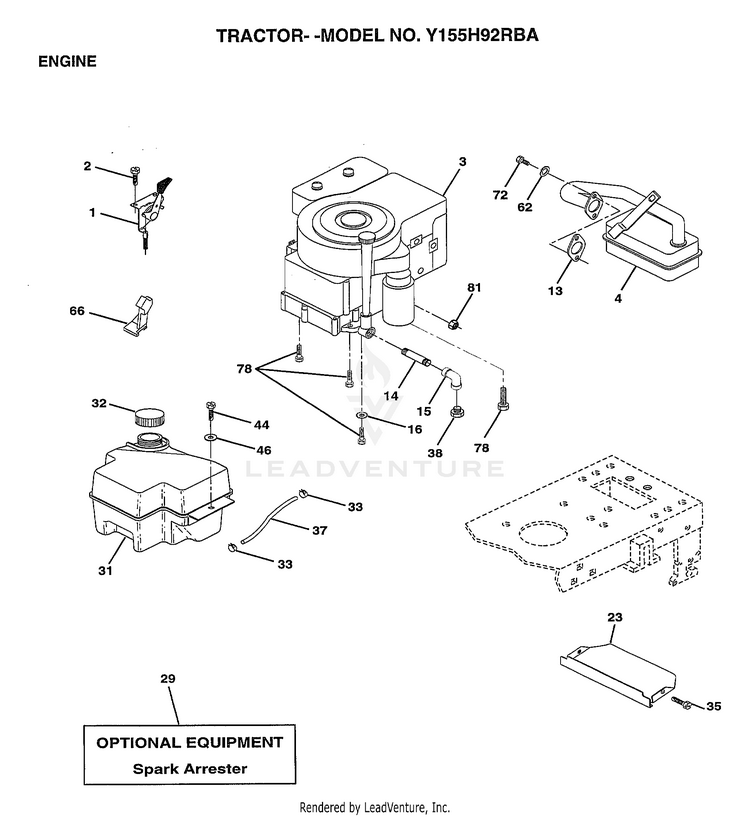

ENGINE

...
...
1
CONTROL.THTL.23.5 HUS-141359
...
2
SCREW LT HUS-17720410
...
3
CHECK WITH SUPPLIER HUS-SUPPLIER
...
4
MUFFLER HUS-137352
...
13
SUB= 272293 HUS-165291
...
14
PIPE NIPPLE HUS-13280324
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
23
SHIELD.BRN/DBR.GD HUS-159880
...
29
SUB= 532137180 HUS-137180
...
31
TANK.FUEL.FRONT. HUS-161911
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
35
SCREW HUS-17490512
...
37
LINE FUEL HUS-137040
...
38
CHECK WITH SUPPLIER HUS-SUPPLIER
...
44
SCREW HEX CRT HUS-17490412
...
46
WASHER HUS-19091416
...
62
LOCKWASHER HUS-10040500
...
66
"STOP,DASH THROTT" HUS-127951
...
72
SCREW HUS-71070512
...
78
SCREW HUS-17490620
...
81
NUT HUS-128861
