Husqvarna Y1438B (1991) Tractor

Model: Y1438B (1991)

Back To Assemblies

Save Part Not Listed?
product name

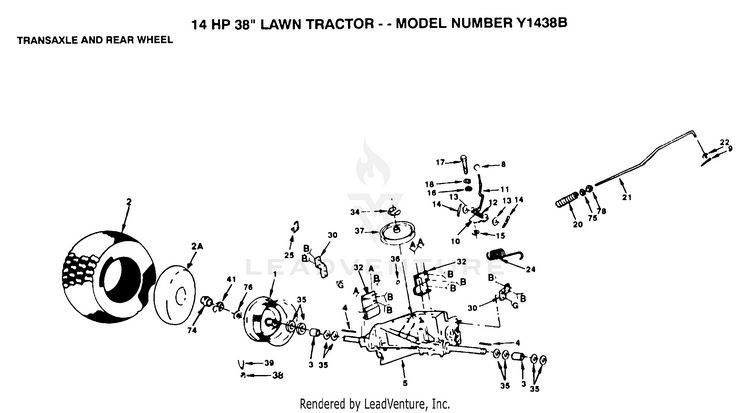

TRANSAXLE AND REAR WHEEL

...
...
1
SUB= 106108X417 HUS-106108X361
...
2
SUB= 122074X HUS-106268X
...
2A
TUBE.18X9.5-8 HUS-7152J
...
3
SPACER LT HUS-109502X
...
4
SQUARE KEY HUS-123583X
...
5
SUB= 137367 HUS-124162X
...
8
KNOB.DUCKHEAD.1/2 HUS-121274X
...
9
COTTER PIN HUS-76020412
...
10
PLATE SHIFT LT HUS-106919X
...
11
ROD SHIFTER HUS-124461X
...
12
SPRING LT HUS-105700X
...
13
WASHER HUS-19151216
...
14
PIN COTTER 1/8 HUS-76020416
...
15
WASH-SHFT PLT LT HUS-105701X
...
16
WASHER LT HUS-19091210
...
17
SUB= 74550412 HUS-71040412
...
18
LOCKWASHER HUS-10040400
...
20
SPRING ROD LT HUS-106888X
...
21
BRAKE ROD LT HUS-110437X
...
22
WASHER HUS-19131316
...
24
SUB= 146682 HUS-110422X
...
25
CLIP T HUS-2751R
...
30
STRAP TORQUE HUS-121520X
...
32
BRACKET LT HUS-109167X
...
34
SUB= 2267J HUS-12000028
...
35
WASHER HUS-121749X
...
36
SUB= 2228M1 HUS-2228M
...
37
PULLEY TRANS HUS-123666X
...
38
VALVE CAP HUS-59192
...
39
VALVE STEM LT HUS-65139
...
41
E-RING LT HUS-12000001
...
74
HUB CAP HUS-104757X
...
75
NUT HUS-73800600
...
76
WASHER HUS-121748X
...
78
NUT HUS-73350600
