Husqvarna Y10L36B (1993) Tractor

Model: Y10L36B (1993)

Back To Assemblies

Save Part Not Listed?

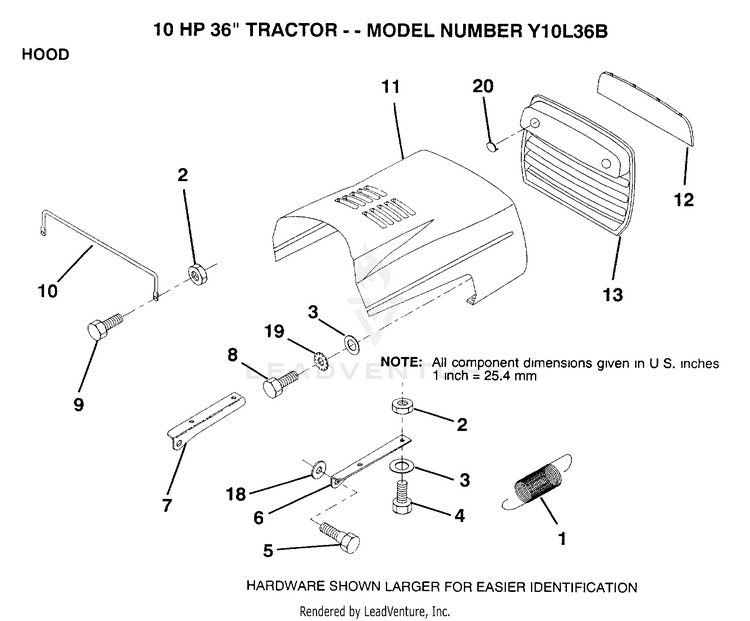

product name

HOOD

...
...
1
EXT SPRING HUS-124657X
...
2
NUT HUS-73510400
...
3
WASHER HUS-19091016
...
4
BOLT HUS-74780410
...
5
SUB= 139888 HUS-126675X
...
6
BRKT HOOD RH HUS-122549X
...
7
BRKT HOOD LH HUS-122548X
...
8
SUB= 17521312 HUS-17411310
...
9
SUB= 74780414 HUS-74780412
...
10
"BRACE,HOOD" HUS-123693X
...
11
HOOD HUS-132918X505
...
12
LENS HUS-122035X
...
13
GRILL HUS-127029X
...
18
WASHER HUS-19111116
...
19
LOCKWASHER GT HUS-11030400
...
20
SUB= 532131319 HUS-131319
