Husqvarna Y10L36B (1993) Tractor

Model: Y10L36B (1993)

Back To Assemblies

Save Part Not Listed?
product name

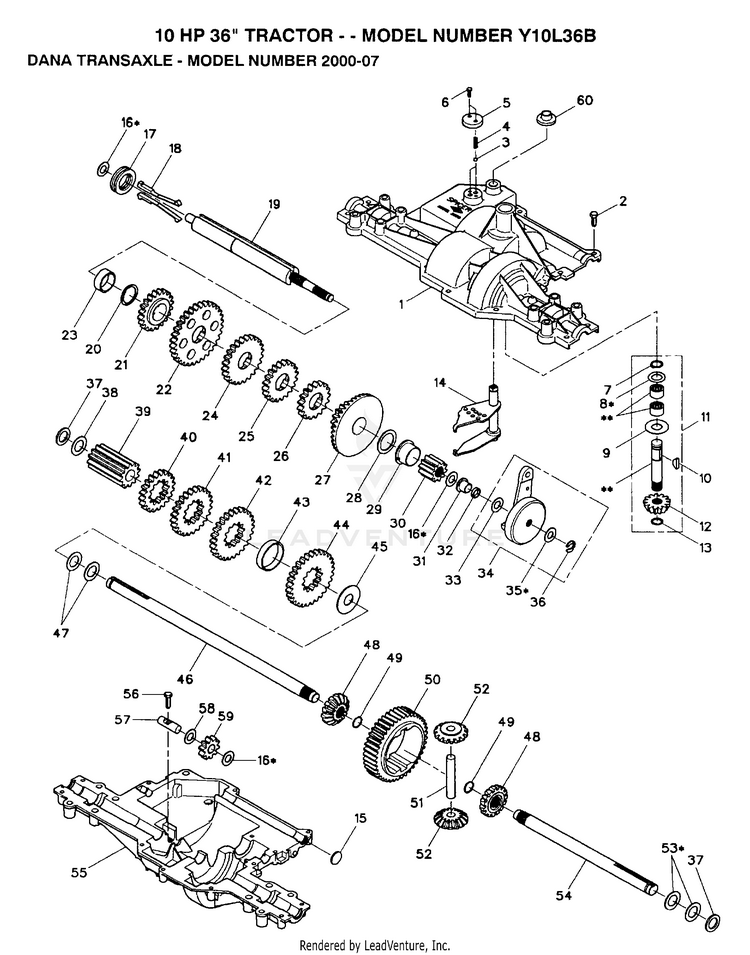

TRANSAXLE

...
...
1
HOUSING. UPPER HUS-139171
...
2
SUB= 74760412 HUS-2274J
...
3
SUB= 68003 HUS-134400
...
4
SPRING, DETENT HUS-134423
...
5
COVER, DETENT HUS-134422
...
6
SCREW, TAPPING, LARGE #8-32 X .50 HUS-6731J
...
7
RETAINING RING LT HUS-2267J
...
8
ASM KIT SHIM 4689 HUS-134793
...
9
WASHER T HUS-120415X
...
10
WOODRUFF KEY HUS-2257J
...
11
ASSEMBLY, KIT, INPUT SHAFT HUS-134390
...
12
PINION,, BEVE, 13 TEETH HUS-134381
...
13
RING, RETAINING HUS-134383
...
14
ASSEMBLY, SHIFTER HUS-134387
...
15
SEAL HUS-134428
...
16
ASSEMBLY, KIT, SHIM, .500 SHAFT HUS-134393
...
17
SUB= 138246 HUS-105913X
...
18
ASSEMBLY, KIT, CLUTCH KEYS HUS-134391
...
19
SHAFT, DRIVE HUS-134415
...
20
"RING,RETAINING LT" HUS-105916X
...
21
GEAR, SPUR, 20 TEETH HUS-134409
...
22
GEAR , SPUR, 32 TEETH HUS-134408
...
23
SPACER 1.130X1.330X.465 HUS-134432
...
24
GEEAR, SPUR, 24 TEETH HUS-134406
...
25
GEAR, SPUR, 20 TEETH HUS-134403
...
26
GEAR, SPUR, 17 TEETH HUS-134402
...
27
GEAR BEVEL 39 & SPUR 15 HUS-134431
...
28
WASHER, PLAIN 1,135 X 1.56 X .062 HUS-134429
...
29
BEARING, FLANGE HUS-134421
...
30
GEAR, SPUR, 10 TEETH HUS-134418
...
31
BEARING, FLANGE HUS-134420
...
32
SEAL HUS-134439
...
33
WASHER T HUS-120464X
...
34
ASSEMBLY, KIT CONE BRAKE HUS-139166
...
35
ASSEMBLY, KIT, SHAM .464 SHAFT HUS-134395
...
36
KLIP RING HUS-134438
...
37
NEOPRENE WASHER HUS-134401
...
38
WASHER 062 HUS-2263J
...
39
GEAR, SPUR, 12 TEETH HUS-134411
...
40
GEAR, SPUR, 17 TEETH HUS-134380
...
41
GEAR, SPUR, 24 TEETH HUS-134414
...
42
GEAR, SPUR, 26 TEETH HUS-134413
...
43
SPACER 1.710X1.910X.375 HUS-134433
...
44
GEAR SPUR, 29 TEETH HUS-134412
...
45
WASHER, PLAIN, .758 X 1.88 X .062 HUS-134382
...
46
AXLE, L.H. HUS-139167
...
47
WASHER 031 HUS-2264J
...
48
GEAR 15T T HUS-110081X
...
49
"RING,RETAINING LT" HUS-105941X
...
50
GEAR, SPUR, 41 TEETH HUS-134419
...
51
SHAFT T HUS-120952X
...
52
GEAR 1ST T HUS-110082X
...
53
ASM KIT SHIM HUS-134394
...
54
AXLE, R.H. HUS-139168
...
55
HOUSING, LOWER HUS-139169
...
56
SUB= 74760412 HUS-2274J
...
57
SHAFT, IDLER HUS-134385
...
58
WASHER T HUS-120465X
...
59
GEAR, SPUR, 10 TEETH HUS-139170
...
60
SHIFTER BOOT HUS-134399
...
61
SUB= 126976X HUS-120416X
