Husqvarna XT722 FE Walk Behind Mower

Model: XT722 FE

Save Part Not Listed?
product name

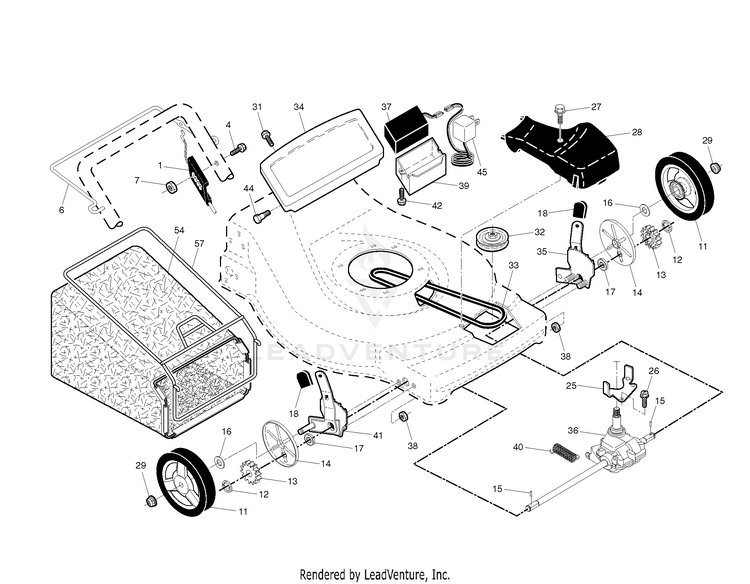

DRIVE

...
...
25
BRACKET.BELT.GUIDE.22+FGD.BZP HUS-532431711
...
12
E-RING 7/16 RE HUS-812000058
...
1
CABLE.DR.VS.BOLT-ON.AUTO.FGD L HUS-532407816
...
18
SELECTOR KNOB HUS-532701037
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
42
SCREW.HWH.13-16X.50 HUS-817411308
...
41
KIT ADJUSTER ASM.438148 RH HUS-532438486
...
57
FRAME.GBAG.22.EZ.EMPTY.SC HUS-532411952
...
31
SCREW For 96143008002 HUS-532178848
...
39
BOX.BATTERY.TRIM HUS-532186237
...
26
SCREW For 96143006104, 96143006103, 96143005801, 96143006102, 96143006101, 96143005800, 96143006100, HUS-532163409
...
6
BAIL.CONT.DR.S/S.ROUND.ORG HUS-532199093
...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
34
PANEL.TRIM.21.FWGD.ES HUS-532411190
...
33
BELT.DRIVE.FG HUS-532196857
...
54
GBAG.83230247T.SIL.HUSQ.BLU HUS-532425669
...
27
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
35
KIT ADJUSTER ASM.438151. LH HUS-532438485
...
26
Screw For 96143008002, 96143008001, 96143008000 HUS-532164309
...
4
SCREW HUS-532199687
...
45
Chargers HUS-597186301
...
15
PAWL, DRIVE HUS-532404845
...
37
BATTERY.12V.22+RWGD.AGM HUS-584353901
...
13
PINION.14.TEETH.FGD HUS-532403849
...
7
NUT.HEX.FLANGE.1/4 HUS-532191730
...
44
SCREW.SHOULDER.HH.10X.281X.6 HUS-532175551
...
17
BEARING.SUPPORT.ASM HUS-587070202
...
28
COVER.DR.ASM.194407X498.CE For 96143006104, 96143006103, 96143005801 HUS-532432666
...
40
SPRING HUS-532406558
...
28
COVER.DR.ASM.194407X498.CE For 96143008002, 96143008001, 96143006102, 96143008000, 96143006101, 96143005800, 96143006100 HUS-532432666
...
36
TRANSMISSION.22.VS.FWGD HUS-532404834
...
11
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
16
WASHER FLUT HUS-532067725
...
31
SCREW.PAN.HEAD.#10 For 96143006106, 96143006105, 96143008001, 96143006104, 96143006103,96143005801,96143006102, 96143008000, 96143006101, 96143005800, 96143006100 HUS-532141841

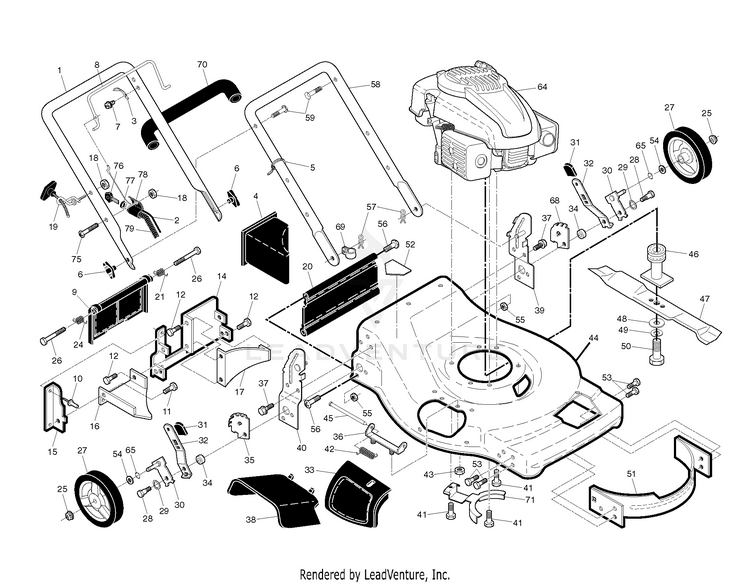

FRAME & ENGINE

...
...
11
SCREW.HXTAP.10-24 HUS-532150050
...
44
HOUSING.22.TORUS.FWD.ORANGE.WA HUS-532417405
...
49
Washers HUS-596238701
...
16
BAFFLE.DISCHRG.22RD.VE.N/SLOTS For 96143006106, 96143006105, 96143006104, 96143006103, 96143005801, 96143006102, 96143008000, 96143006101, 96143005800, 96143006100 HUS-532176655
...
10
RIVET BLIND HUS-532128415
...
31
SELECTOR KNOB HUS-532701037
...
56
HINGE SCREW HUS-532088652
...
51
FRONT BAFFLE KIT HUS-532170031
...
12
SCREW 14-20 X 5/8 HUS-817060410
...
70
GRIP, FOAM HUS-532186362
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
17
BAFFLE.REAR.HSG.ASM.QT.22.BLAC For 96143006106, 96143006105, 96143006104, 96143006103, 96143005801, 96143006102, 96143008000, 96143006101, 96143005800, 96143006100 HUS-532140661
...
27
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
32
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
35
BRACKET.ADJ.5.IDL.RTAB.ADS RH HUS-532407492
...
8
BAIL.MZR.CREA.ORANGE HUS-532413185
...
xx
FUSE, 40A NOT SHOWN HUS-532425937
...
21
SPRING.LH.22.REAR.DOOR.EZ.EMPT LH HUS-532405421
...
34
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
42
SPRING.TORSION HUS-532193000
...
48
WASHER,HARDEN HUS-532851074
...
4
PLUG.MULCH.22RD HUS-532166649
...
64
KOHLER XT800-2012 FOR SERVICE & PARTS 1-800-544-2444 HUS-000000000
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
24
SPRING.RH.22.REAR.DOOR.EZ. RH HUS-532405423
...
46
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
45
ROD.HINGE.21 HUS-532175650
...
14
PLATE.BACK.22.RD/VE/STD HUS-532195622
...
30
ARM.ASM.AXLE.5/9.POS.BZP HUS-532401179
...
58
HANDLE.LOWER.21.FGD.ES.NB.GRAY HUS-583757501
...
9
DOOR.REAR.22.PLASTIC.EZ.EMPT HUS-532401813
...
16
BAFFLE.DISCHRG.22RD.VE.N/SLOTS For 96143008002, 96143008001 HUS-532176655
...
7
SCREW HUS-532750634
...
47
BLADE.22.MULCH.STANDARD HUS-532406713
...
33
DOOR.MULCH.22.REAR.FWGD.GREY HUS-532197029
...
3
BRACKET.UPSTOP HUS-532850733
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
15
BAFFLE.SIDE.PNT.BLACK HUS-532410545
...
28
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
17
BAFFLE.REAR.HSG.ASM.QT.22.BLAC For 96143008002, 96143008001 HUS-532140661
...
2
CABLE.MZR.W/KEY.START SW.51.62 HUS-532401994
...
20
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
68
WHEEL ADJUSTING BRACKET LH HUS-532407493
...
5
WIRE TIE HUS-532007192
...
26
BOLT HUS-532184193
...
69
CLIP.CABLE.BLK HUS-532197991
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
43
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
39
BRACKET.ASM.HDL.LT.EZEM.22.ORA LH HUS-532419193
...
76
KEY.MOLDED HUS-532180331
...
79
HARNESS.WIRING.CONTROL HUS-532409567
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
77
NUT.CAP.SNAP-ON.KEY START HUS-532194848
...
53
SCREW 1/4X20 HUS-817600406
...
29
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
54
WASHER.FLAT.1/2 HUS-532088348
...
71
BRACKET.KEEPER.BELT HUS-532425711
...
40
BRACKET.ASM.HDL.RT.EZEM.22.ORN RH HUS-532419192
...
38
DEFLECTOR.CLIPPING.22.GREY For 96143008002, 96143006106, 96143006105, 96143008001, 96143006104, 96143006103, 96143005801, 96143006102 HUS-532403819
...
1
HANDLE.ASM.UP.CREASED.GRE.W/GR Includes foam grip HUS-532427663
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
38
DEFLECTOR.CLIPPING.22.GREY For 96143008000, 96143006101, 96143005800, 96143006100 HUS-532403819
...
75
SCREW.(COMBINATION CONTROL) HUS-532186159
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
55
Nuts HUS-596322601
...
57
HAIRPIN COTTER HUS-532051793
...
78
KIT.CONTROL.COMBI.KEYW/HARNESS HUS-532189686
