Husqvarna XT700 (2009-03) Trimmer/Edger

Model: XT700 (2009-03)

Back To Assemblies

Save Part Not Listed?
product name

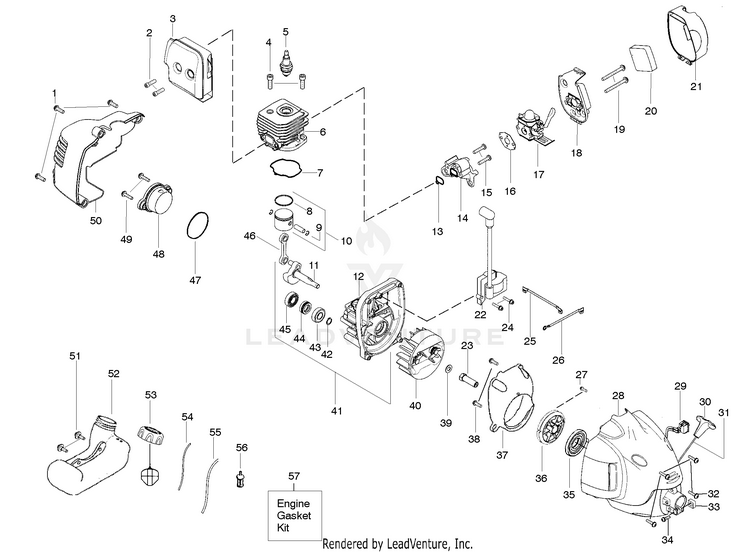

Engine

...
...
1
Screw HUS-530015880
...
2
Bolt-Muffler HUS-530058982
...
3
Assy-Muffler/Shield (Incl. 2) HUS-530057538
...
4
Screw-Cylinder HUS-530015953
...
5
Spark Plug (RCJ 6Y) HUS-952030249
...
6
Cylinder HUS-530012541
...
7
Seal-Cylinder (kit) HUS-530071750
...
8
RING PISTON HUS-545154001
...
9
Retainer-Piston Pin HUS-530015162
...
10
Kit-Piston (Incl. 8, 9) HUS-530071833
...
11
Assy-Crankshaft HUS-530012555
...
12
Assy-Crankcase (Incl. 43-45) HUS-530012542
...
13
Seal-Cyl/Carb.(kit) HUS-530071750
...
14
Adapter-Carb. HUS-530057547
...
15
Screw HUS-530016309
...
16
Gasket-Carb. (kit) HUS-530071750
...
17
Kit-Carb. Zama (C1U-W18) HUS-530071752
...
17
Kit-Carb. Zama (C1U-W18) (Note: Repair kits are not available for this carburetor) HUS-530071752
...
18
Air Box HUS-530057544
...
19
Screw HUS-530016429
...
20
Foam-Air Filter HUS-530036575
...
21
Cover-Air Box HUS-530058740
...
22
KIT MODULE W/O INTERRUPT HUS-545081826
...
23
Coupling-Drive HUS-530027953
...
24
Screw HUS-530016357
...
25
Assy-Leadwire HUS-530014663
...
26
Assy-Ground Wire HUS-530014662
...
27
Screw HUS-530016391
...
28
Assy.-Fan Hsg HUS-530071732
...
29
Kit-Switch HUS-530071356
...
30
Handle-Starter HUS-530058742
...
31
Kit - Rope HUS-530071798
...
32
Screw HUS-530016386
...
33
Nut 12-24 HUS-530016382
...
34
Screw 12-24 HUS-530016381
...
35
KIT STARTER SPRING HUS-545008011
...
36
Kit - Starter Pulley HUS-545081852
...
37
Baffle HUS-530057548
...
38
Screw HUS-530015880
...
39
Washer-Flat HUS-530015828
...
40
Assy-Flywheel HUS-530054115
...
41
Assy-C'case & C'shaft (Incl. 11,12,42) HUS-530071751
...
42
Retain. Ring-C'shaft HUS-530015941
...
43
Outer Bearing HUS-530055728
...
44
Seal-C'case HUS-530019264
...
45
Inner Bearing HUS-530019264
...
46
Kit-Conn. Rod Assy HUS-530019264
...
47
O-Ring-C'case (kit) HUS-530019264
...
48
Assy-Plug (incl.47) HUS-530019264
...
49
Screw HUS-530019264
...
50
Shroud-Rear HUS-530019264
...
51
Retainer-Tank HUS-530019264
...
52
Assy-Fuel Tank (incl. filter, lines & fuel cap) HUS-530019264
...
53
Assy-Fuel Cap HUS-530019264
...
54
Kit-Fuel Line (Small) HUS-530019264
...
55
Kit-Fuel Line (Large) HUS-530019264
...
56
Assy-Fuel Pickup HUS-530019264
...
57
Kit-Engine Gasket (Incl. 7,13,16,47) HUS-530019264
...
57
Choke Lever - Zama Not Shown HUS-530057827
...
57
Choke Lever - Walbro Not Shown HUS-530058662
...
57
Bulb-Purge Not Shown HUS-530058709
