Husqvarna XT700 (2009-03) Trimmer/Edger

Model: XT700 (2009-03)

Back To Assemblies

Save Part Not Listed?
product name

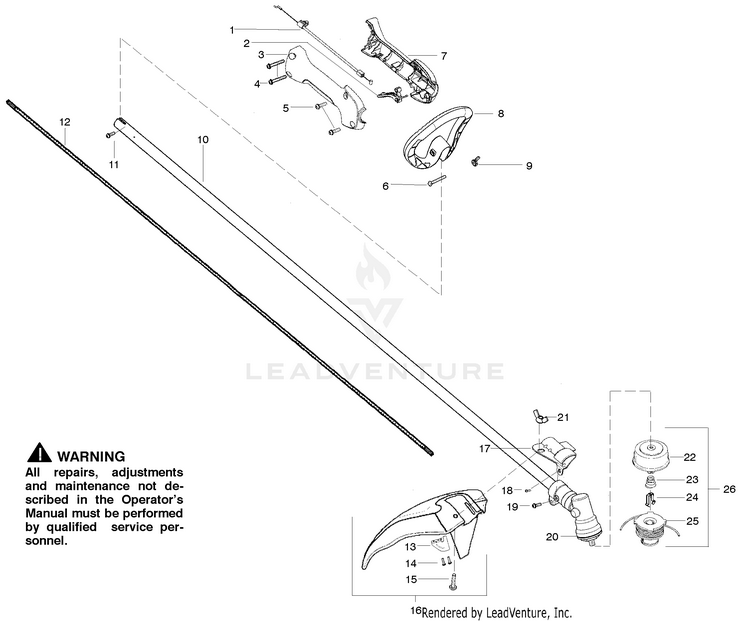

Handle & Controls

...
...
1
Assy-Throttle Cable HUS-530057566
...
2
Trigger HUS-530058000
...
3
Throttle Hsg. (Right) HUS-530058751
...
4
Screw HUS-530016406
...
5
Screw HUS-530015814
...
6
Bolt-Handle HUS-530015786
...
7
Throttle Hsg. (Left) HUS-530058750
...
8
Handle-Assist HUS-530058754
...
9
Wingnut HUS-530401992
...
10
Assy-Drive Shaft Hsg. HUS-530071780
...
11
Screw HUS-530015886
...
12
Shaft- Flex HUS-530096169
...
13
Line Limiter HUS-530052285
...
14
Screw HUS-530015814
...
15
Bolt-Shield HUS-530015820
...
16
Kit-Shield Assy (Incl.13,14) HUS-530071823
...
17
Bracket-Shield HUS-545150701
...
18
Screw HUS-530015224
...
19
Screw HUS-530016014
...
20
Assy-Gearbox HUS-530096099
...
21
Wingnut HUS-530401992
...
22
Assy-Hub. HUS-530095772
...
23
Spring HUS-530053241
...
24
Retainer HUS-530401957
...
25
Accy-Spool w/Line HUS-952711551
...
26
Accy-Head TNG VI Assy. HUS-952711550
...
26
Operator Manual Not Shown HUS-545186834
...
26
Decal-Start Inst. Not Shown HUS-530058594
...
26
Decal-Choke Not Shown HUS-530058597
...
26
Decal-Shaft Warning Not Shown HUS-545144405
