product name

Husqvarna XT500N21R, 96132003101 (2007-03) Walk-Behind Mower

Model: XT500N21R, 96132003101 (2007-03)

Save Part Not Listed?
product name

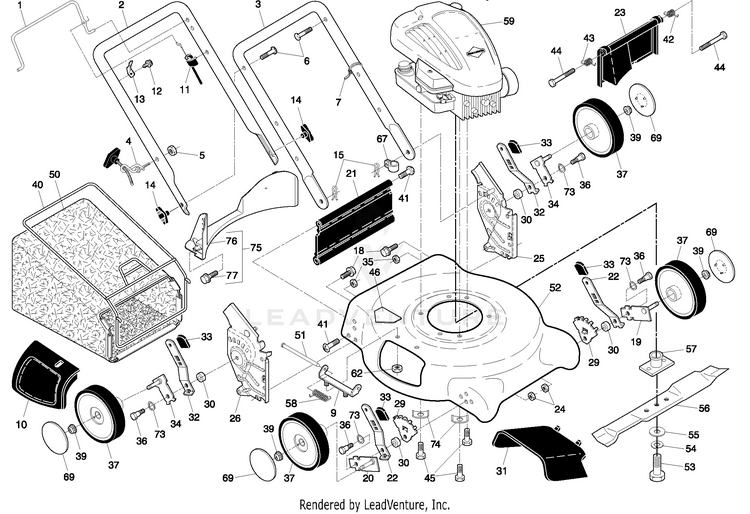

Rotary Lawn Mower

...
...
1
Control Bar HUS-194177X428
...
2
Upper Handle HUS-194179X479
...
3
Lower Handle HUS-169708X479
...
4
Rope Guide HUS-194788
...
5
Nut, Hex HUS-132004
...
6
Handle Bolt HUS-191574
...
7
Wire Tie HUS-664-26
...
9
Hinge Bracket Assembly HUS-154132
...
10
Mulcher Door HUS-165754
...
11
Engine Zone Control Cable HUS-176556
...
12
Hex Washer Head Screw HUS-750634
...
13
Up-Stop Bracket HUS-86899X004
...
14
Handle Knob HUS-189713X428
...
15
Hairpin Cotter HUS-51793
...
18
Screw 1/4-20 x 3/8 HUS-17600406
...
19
Axle Arm Assembly, Front, LH HUS-401174X004
...
20
Axle Arm Assembly, Front, RH HUS-401175X004
...
21
Rear Skirt HUS-413160
...
22
Selector Spring, Front HUS-401621X004
...
23
Rear Door Assembly HUS-401814X428
...
24
Locknut, Hex HUS-166785
...
25
Handle Bracket, LH HUS-410387X479
...
26
Handle Bracket, RH HUS-410388X479
...
28
Spring, Torsion HUS-152124
...
29
Wheel Adjusting Bracket HUS-407494X005
...
30
Spacer HUS-401629
...
31
Discharge Deflector HUS-165760
...
32
Selector Spring, Rear HUS-401623X004
...
33
Selector Knob HUS-701037
...
34
Axle Arm Assembly, Rear HUS-401173X004
...
35
Nut, Hex HUS-73930500
...
36
Shoulder Bolt 5/16-18 HUS-401638
...
37
Wheel & Tire Assembly HUS-151155
...
39
Locknut, Hex, Flanged HUS-409148
...
40
Frame, Grass Bag HUS-401808
...
41
Hinge Screw HUS-88652
...
42
Spring, Rear Door, LH HUS-405421
...
43
Spring, Rear Door, RH HUS-405423
...
44
Bolt, Rear Skirt HUS-184193
...
45
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1 HUS-150406
...
46
Danger Decal HUS-404763
...
50
Grass Bag HUS-412336
...
51
Hinge Rod HUS-147286
...
52
Kit, Housing Assembly (Includes Key Number 46) HUS-413906
...
53
Screw, Hex Head, Grade 8 3/8-24 x 1-3/8 HUS-851084
...
54
Helical Lockwasher HUS-850263
...
55
Hardened Washer HUS-851074
...
56
21" Blade HUS-406712
...
57
Blade Adapter HUS-193825
...
62
Nut, Hex, Nylock 1/4-20 HUS-73800400
...
67
Clip, Cable HUS-197991
...
69
Hubcap HUS-407793X427
...
73
Washer, Flat HUS-401630
...
74
Washer, Special, Engine HUS-851201X004
...
75
Kit, Rear Baffle HUS-413693
...
76
Baffle, Rear HUS-410589
...
77
Screw, Rear Baffle HUS-17411312
...
77
Warning Decal (not shown) HUS-404764
...
77
Operator's Manual, English HUS-193732
...
77
Operator's Manual, French HUS-193734
...
77
Repair Parts Manual HUS-413905
