Husqvarna XC1122B (1991) Tractor

Model: XC1122B (1991)

Back To Assemblies

Save Part Not Listed?
product name

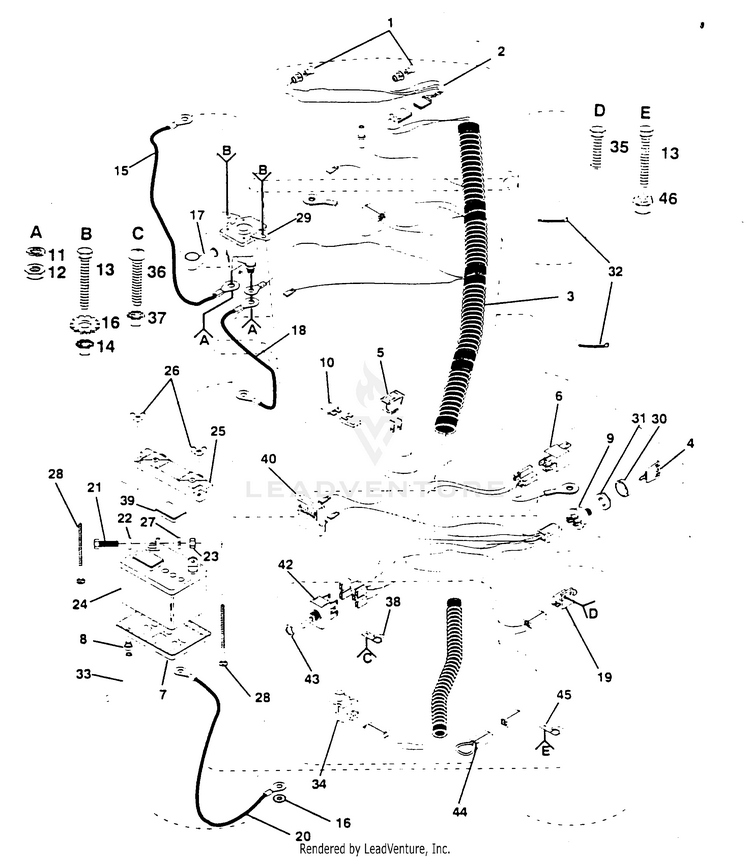

ELECTRICAL

...
...
1
Bulb, Light HUS-532004152
...
2
Harness, Light Socket HUS-532110859
...
3
Harness, Ignition HUS-532124262
...
4
Key, Molded HUS-532122147
...
5
Switch, Light HUS-532110712
...
6
Relay HUS-532109748
...
7
TRAY.BATTERY HUS-532007603
...
8
Clamp, Hose HUS-532109596
...
9
KIT.SWITCH.IGNITN HUS-532365402
...
10
Fuse HUS-532108824
...
11
WASHER, LOCK 1/4 HUS-810040400
...
12
NUT.HEX..25-20.UNC HUS-532050675
...
13
HCS.1/4-20.X1/2 HUS-539990071
...
14
Nut Crownlock 1/4-20 unc HUS-873680400
...
15
Cable Assembly HUS-532108423
...
16
WASHER, LOCK 1/4 HUS-810040400
...
17
Cover, Terminal Red HUS-532154336
...
18
BATTERY CABLE HUS-532004799
...
19
Switch, Interlock HUS-532104445
...
20
HUS-532004207
...
21
Bolt, Hex 1/4-20 x 3/4 HUS-874760412
...
22
Washer 9/32-5/8 x 16 Gauge HUS-819091016
...
23
NUT.HEX..25-20.UNC HUS-532050675
...
24
BATTERY.DRY.30.AMP HUS-532123899
...
25
SUB= 150109 HUS-532150109
...
26
KNOB BLK 1/2 NYLON HUS-532146525
...
27
Washer, Lock, Heavy Helical Spring HUS-810040400
...
28
Bolt, Carriage 1/4-20 x 7-1/2 HUS-872240460
...
29
KIT SOLENOID .95 HUS-532146154
...
30
Bezel, Ignition HUS-532109787
...
31
Nut Ignition HUS-532124211
...
32
WIRE TIE HUS-532007192
...
33
Tube, Tray, Battery HUS-532007697
...
34
SWITCH.SNAPMOUNT.NC HUS-532421062
...
35
Screw, Hex Tapping #10-24 UNC x 1/2 HUS-817021008
...
36
Screw, Slotted Pan Head #10-32 x 1/2 HUS-874641008
...
37
HUS-873161000
...
38
Clip, Insulated HUS-532124967
...
39
Caps, Battery HUS-532121264
...
40
Ammeter HUS-532122822
...
42
SWITCH-PTO HUS-532004021
...
43
HEX NUT T HUS-532004022
...
44
Loop, Wire HUS-532102501
...
45
Clip, Wire HUS-532124995
...
46
Nut, Crownlock 1/4-20 HUS-873680400
...
xx
Sheet, Instruction, Tractor, 15ø Slope, English Not Shown. HUS-532101539
...
xx
Sheet, Instruction, Tractor, 15ø Slope, French Not Shown. HUS-532101572
...
xx
Manual, Operator's Not Shown. HUS-532127903
