Husqvarna XC1122B (1991) Tractor

Model: XC1122B (1991)

Back To Assemblies

Save Part Not Listed?
product name

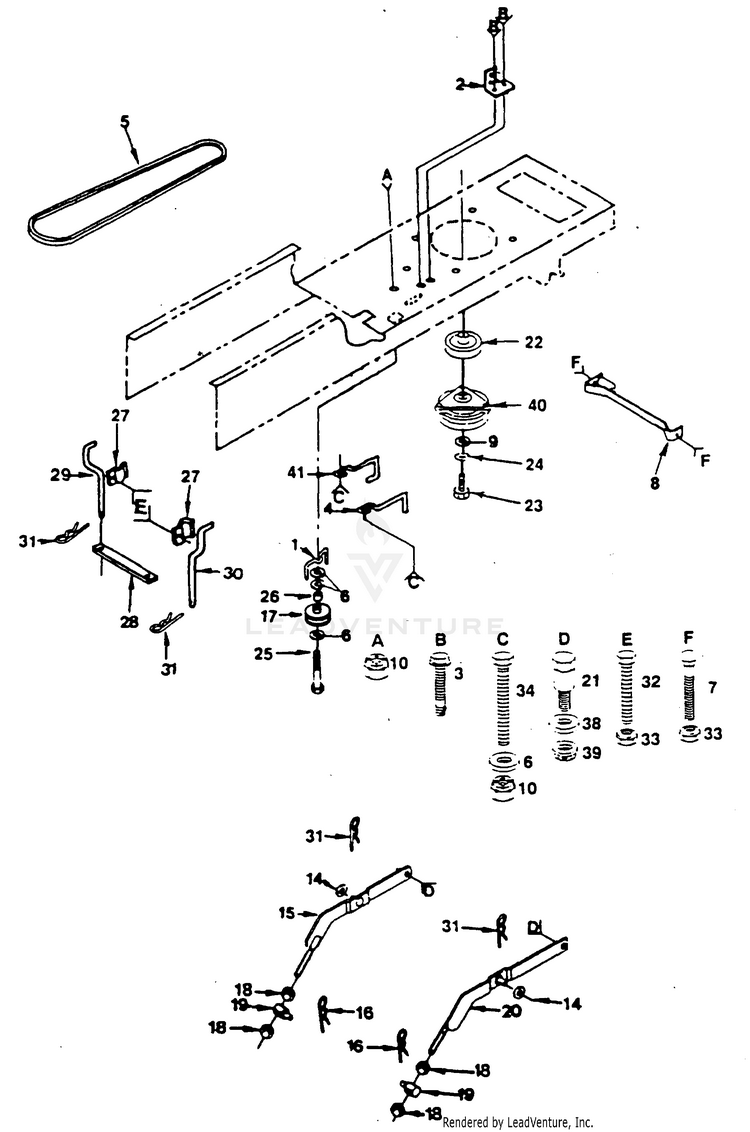

DRIVE

...
...
1
Keeper, Belt HUS-532109070
...
2
Bracket, Switch HUS-532108236
...
3
Screw, Hex, Tapping #10-24 x 1/2 HUS-817021008
...
4
Keeper, Belt, Engine HUS-532105730
...
5
V-Belt, Drive HUS-532125907
...
6
WASHER HUS-734117201
...
7
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
8
RETAINER KIT HUS-532109172
...
9
Washer 1-1/2 OD x 15/32 ID x .250 HUS-532126197
...
10
Nut, Crownlock 3/8-16 HUS-873680600
...
14
Washer HUS-532052160
...
15
Arm Assembly, Suspension, L.H. HUS-532121599
...
16
Retainer, Spring HUS-532009135
...
17
Idler, Flat HUS-532123674
...
18
Nut Jam Hex 1/2-13 Unc HUS-873350800
...
19
Trunnion Blk Zinc HUS-532175689
...
20
Arm Assembly, Suspension, R.H. HUS-532121598
...
21
Bolt, Shoulder 3/8-16 HUS-532105848
...
22
Engine Pulley LT/YT HUS-532140189
...
23
Bolt, Hex Fin 7/16-20 UNF x 4.00 HUS-871130768
...
24
LOCKWASHER.7/16 HUS-539990247
...
25
Bolt, Hex 3/8-16 x 2-3/4 HUS-874760644
...
26
Spacer HUS-532124965
...
27
Clamp HUS-532106190
...
28
Strap, Locater HUS-532123770
...
29
Keeper, Belt, L.H. HUS-532123662
...
30
Keeper, Belt, R.H. HUS-532123663
...
31
Retainer Spring HUS-532004921
...
32
HCS.5/16-18X3/4 HUS-539976934
...
33
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
34
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
38
Washer, Spring HUS-532110739
...
39
Nut HUS-873680600
...
40
KIT CLUTCH ELECT REPL HUS-532142600
...
41
Keeper, Belt, Engine HUS-532121218
