Husqvarna XC1122B (1991) Tractor

Model: XC1122B (1991)

Back To Assemblies

Save Part Not Listed?
product name

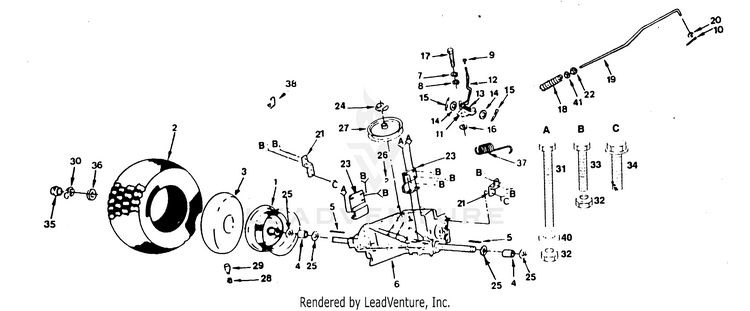

TRANSAXLE AND REAR WHEEL

...
...
1
Rim Assembly, Rear HUS-532125122
...
2
TIRE.18X9.5-8 TURF SAVER HUS-532420531
...
3
Tube HUS-532007152
...
4
Spacer, Split HUS-532109502
...
5
Key, Square HUS-532123583
...
6
Transaxle, Foote, Model No. 4360-7, 6-Speed HUS-532120898
...
7
Washer, Lock 1/4 HUS-810040400
...
8
WASHER - M6 HUS-734115201
...
9
Knob, Control HUS-532121274
...
10
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
11
Plate, Rod, Shift HUS-532106919
...
12
Rod, Shifter HUS-532124461
...
13
Spring, Torsion HUS-532105700
...
14
Washer 15/32 x 3/4 x 16 Ga. HUS-819151216
...
15
Pin, Cotter 1/8 x 1 HUS-876020416
...
16
Washer, Shift Plate HUS-532105701
...
17
Bolt, Hex 14-28 x 3/4 Gr. 8 HUS-871040412
...
18
SPRING, BRAKE ROD HUS-532151332
...
19
ROD HUS-532131867
...
20
Washer 13/32 x 13/16 x 16 Ga. HUS-819131316
...
21
Strap, Torque HUS-532121520
...
22
Nut, Hex 3/8-16 HUS-873220600
...
23
Bracket, Transaxle HUS-532109167
...
24
Ring, Retaining HUS-532002267
...
25
Washer 25/32 x 1-1/4 x 16 Ga. HUS-532121749
...
26
Key, Woodruff # 9 3/16 x 3/4 HUS-532125096
...
27
Pulley, Input, Transaxle HUS-532123666
...
28
Cap, Valve HUS-532059192
...
29
Stem, Valve HUS-532065139
...
30
E-Ring HUS-812000001
...
31
Bolt, Hex 3/8-16 x 2-3/4 HUS-874760644
...
32
Nut 3/8-16 HUS-873680600
...
33
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
34
HCS.5/16-18X3/4 HUS-539976934
...
35
Cap, Axle HUS-532104757
...
36
Washer 25/32 x 1-5/8 x 16 Ga. HUS-532121748
...
37
Spring Return Brake HUS-532146682
...
38
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
40
Washer 11/32 x 3/4 x 14 Ga. HUS-819111214
...
41
Nut HUS-873680600
