Husqvarna XC1122B (1991) Tractor

Model: XC1122B (1991)

Back To Assemblies

Save Part Not Listed?
product name

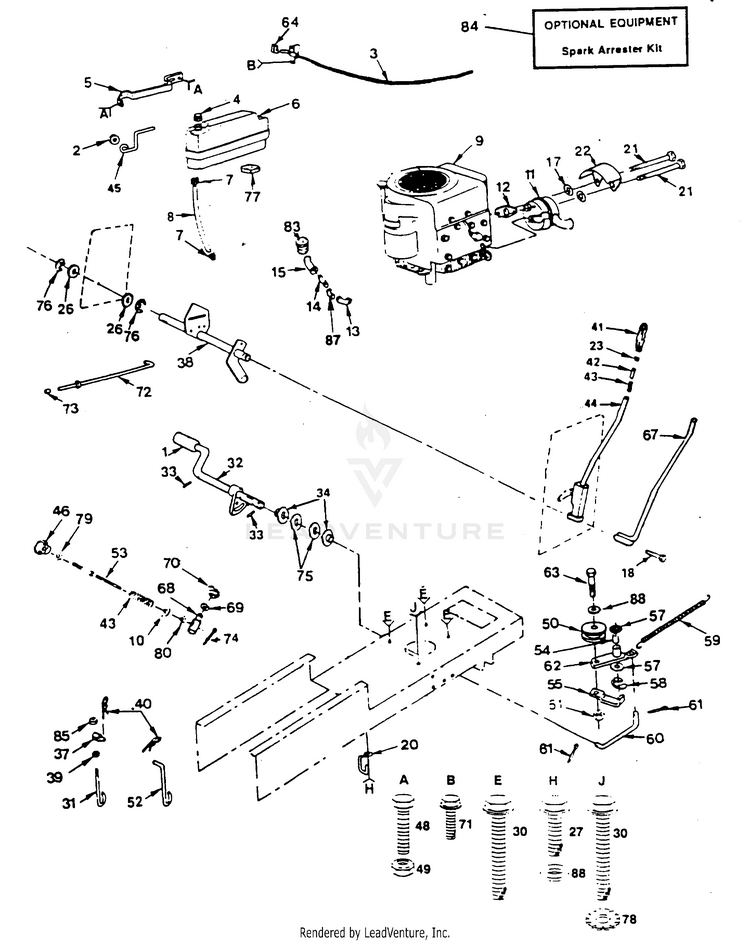

POWER AND MECHANICAL CONTROLS GROUP

...
...
1
Cover, Pedal HUS-532008883
...
2
Washer, 13/32 x 13/16 x 14 Ga. HUS-819131314
...
3
Control, Throttle HUS-532121275
...
4
FUEL CAP LT HUS-532008504
...
5
Support, Tank, Fuel HUS-532124711
...
6
Tank, Fuel HUS-532121280
...
7
Clamp, Hose HUS-532123487
...
8
Line, Fuel HUS-532008542
...
9
Engine, Briggs & Stratton, Model No. 281707, Type No. 1413-01 HUS-532124149
...
10
Washer 13/32 x 5/8 x 16 Ga. HUS-819131016
...
11
Muffler HUS-532121304
...
12
Gasket Eng 1 313 Id Tin Plated HUS-532272293
...
13
Elbow, Street HUS-813240300
...
14
Nipple, Pipe, STD 3/8-18 NPT x 3-1/2 HUS-813280328
...
15
Elbow, STD 90ø 3/8-18 NPT HUS-813200300
...
17
Washer HUS-532052160
...
18
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
20
Keeper Belt Chassis Span Ctr HUS-532136715
...
21
Bolt, Shoulder HUS-532121744
...
22
Shield, Heat, Muffler HUS-532121742
...
23
PLUNGER BUTTON KIT HUS-532125925
...
26
Washer 29/32 x 1-1/4 x 16 Ga. HUS-819292016
...
27
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
30
Bolt Fin Hex 3/8-16 UNC x 1-1/4 HUS-874760620
...
31
Link, Lift, Adjustable HUS-532110448
...
32
Shaft, Pedal, Foot HUS-532122424
...
33
DRIVE PIN HUS-532002882
...
34
Bearing, Nylon HUS-532120183
...
37
LIFT TRUNION HUS-532132793
...
38
Shaft Assembly, Lift HUS-532121000
...
39
Nut, Hex 7/16-20 HUS-873610700
...
40
RETAINER SPRING HUS-532085902
...
41
GRIP, HANDLE HUS-532125631
...
42
PLUNGER BUTTON KIT HUS-532125925
...
43
SPRING HUS-532002876
...
44
LIFT LEVER HUS-532123096
...
45
Brace, Tank HUS-532124170
...
46
Handle, Adjust, Lift HUS-532121891
...
48
HCS.5/16-18X3/4 HUS-539976934
...
49
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
50
Pulley, Idler V Groove HUS-532139245
...
51
Nut 3/8-16 HUS-873680600
...
52
Link, Lift HUS-532110029
...
53
Rod, Adjust, Lift HUS-532110729
...
54
Bearing HUS-532105706
...
55
Retainer, Belt HUS-532123205
...
57
Washer, Hardened HUS-532110812
...
58
Ring, Klip HUS-812000039
...
59
Spring, Return, Clutch HUS-532105709
...
60
LINK.CLUTCH.7.66.2005 HUS-532199652
...
61
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
62
Arm, Idler HUS-532123789
...
63
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
64
Knob, Control, Throttle HUS-532061159
...
67
Rod, Lever HUS-532121006
...
68
Trunnion, Stop, Depth HUS-532110810
...
69
Washer 15/32 x 3/4 x 16 Ga. HUS-819151216
...
70
Ring, Klip HUS-812000037
...
71
HCS 1/4C X 5/8 HUS-539990072
...
72
Rod, Brake, Park HUS-532133261
...
73
Cap, Plunger HUS-532071673
...
74
COTTER PIN HUS-532003145
...
75
Washer 21/32 x 1 x 16 Ga. HUS-819211616
...
76
E-Ring HUS-812000022
...
77
Pad, Spacer HUS-532006431
...
78
WASHER.3/8 HUS-539990118
...
79
Nut, Hex 3/8-16 HUS-873220600
...
80
Nut, Special HUS-532110807
...
84
Spark Arrester Kit HUS-532100091
...
85
Nut, Hex 7/16-20 HUS-873610700
...
87
Elbow, Street, 45ø HUS-813310300
...
88
Washer 13/32 x 13/16 x 16 Ga. HUS-819131316
...
xx
Decal, Label, Engine Maintenance Not Shown. HUS-532121120
...
xx
Decal, 12 HP Engine Not Shown. HUS-532120601
