Husqvarna X14V38B (1992) Tractor

Model: X14V38B (1992)

Back To Assemblies

Save Part Not Listed?
product name

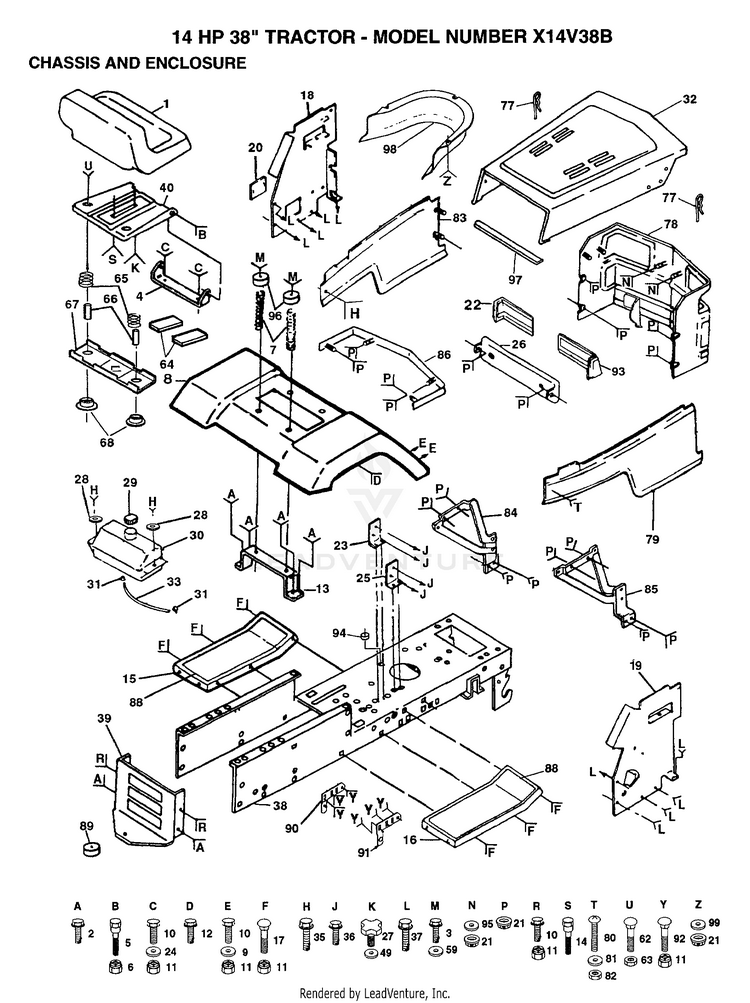

CHASSIS AND ENCLOSURES

...
...
1
SUB= 140121 HUS-127424X
...
2
SCREW HUS-17490612
...
3
SCREW GTV HUS-17490616
...
4
SUB= 140551 HUS-126656X
...
5
SUB= 139888 HUS-105529X
...
6
SUB= 73690500 HUS-73680500
...
7
SPRING COMPRESSIO HUS-124181X
...
8
FENDER HUS-109872X475
...
9
WASHER HUS-19131312
...
10
SUB= 74780612 HUS-74760612
...
11
SUB= 73690600 HUS-73680600
...
12
SCREW LT HUS-17490608
...
13
SUB= 136619 HUS-109873X
...
14
"BOLT,SHOULDER" HUS-127018X
...
15
SUB= 145244X475 HUS-105465X475
...
16
SUB= 145243X475 HUS-105464X475
...
17
BOLT HUS-72110606
...
18
PANEL DASH LH HUS-122795X
...
19
SUB= 155936 HUS-126276X
...
20
COVER ACCESS HUS-121794X
...
21
PAL NUT LT HUS-108067X
...
22
LENS LH LT HUS-108361X
...
23
SWITCH BRACKET HUS-130890
...
24
WASHER HUS-19131210
...
25
BRACKET LT HUS-108236X
...
26
SUB= 918132257 HUS-132257
...
27
"KNOB 1/2"" YT" HUS-120068X
...
28
WASHER HUS-19091416
...
29
SUB= 158990 HUS-123549X
...
30
TANK.FUEL.LT. HUS-109202X
...
31
HOSE CLAMP HUS-123487X
...
32
HOOD ASSEMBLY HUS-1028561X475
...
33
SUB= 8548R HUS-101335K
...
35
SCREW HEX CRT HUS-17490412
...
36
SCREW HUS-17021008
...
37
SCREW LT HUS-17490608
...
38
SUB= 145501 HUS-135034
...
39
DRAWBAR LT/YT HUS-127866
...
40
SUB= 155925 HUS-131451
...
49
WASHER HUS-19171912
...
59
WASHER HUS-19131614
...
62
SUB= 872050411 HUS-72050411
...
63
SUB= 73900400 HUS-123976X
...
64
STRIP FORM HUS-121251X
...
65
SPRING HUS-121250X
...
66
SPACER SPLIT HUS-121249X
...
67
BRKT SWITCH HUS-121246X
...
68
BUSHING HUS-121248X
...
77
SPRING.RETAINER HUS-4921H
...
78
SUB= 532128313 HUS-128313
...
79
SIDE PANEL ASM. RH HUS-106727X475
...
80
"SCREW,SPECIAL" HUS-127317X
...
81
SUB= 129664 HUS-129964
...
82
RETAINER HUS-127316X
...
83
"SIDE PANEL,LH" HUS-106929X475
...
84
"HINGE,HOOD,LH T" HUS-105797X
...
85
"HINGE,HOOD,RH T" HUS-105792X
...
86
"STRAP,GRILL" HUS-109745X475
...
88
FOOTREST PAD HUS-133671
...
89
SUB= 532124028 HUS-124028X
...
90
BRKT ASM PIVOT LH HUS-134618
...
91
BRKT ASM PIVOT RH HUS-134617
...
92
BOLT HUS-72140606
...
93
LENS RH LT HUS-108360X
...
94
SNAP BUSHING T HUS-9151R
...
95
WASHER PM HUS-19091216
...
96
CAP SPRING HUS-124238X
...
97
FOAM-STRIP LT HUS-105037X
...
98
"DUCT,AIR" HUS-128562
...
99
WASHER HUS-19131614
