Husqvarna X1442A (1993) Tractor

Model: X1442A (1993)

Back To Assemblies

Save Part Not Listed?
product name

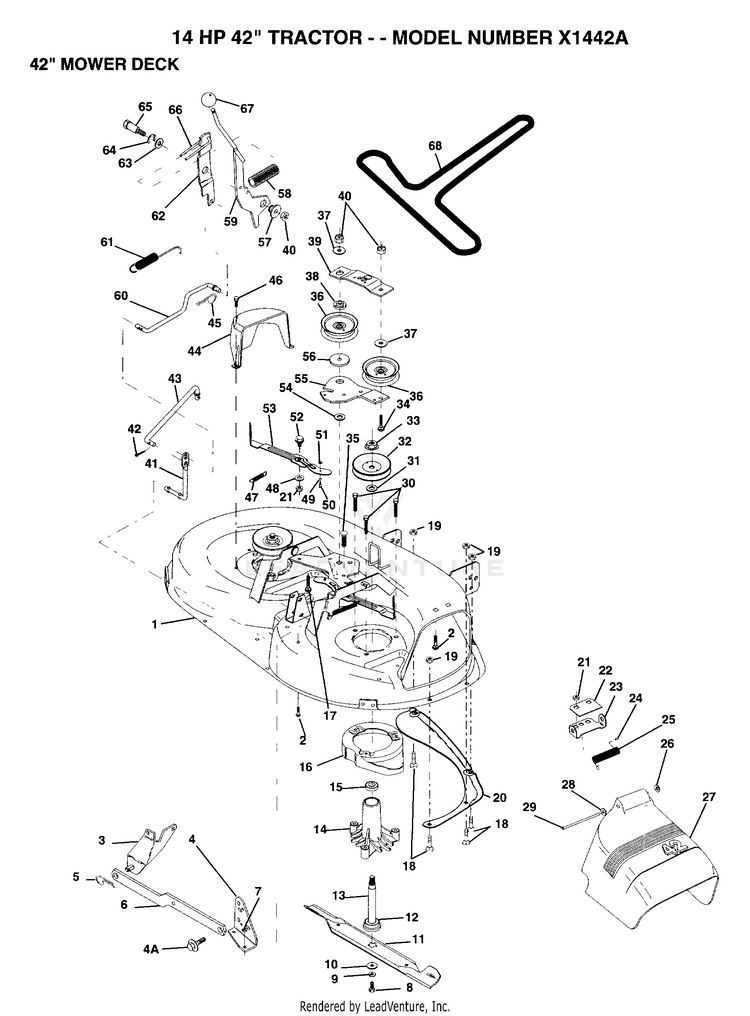

MOWER DECK

...
...
1
SUB= 145338 HUS-138024
...
2
BOLT HUS-72140506
...
3
BRKT ASM SWAY BAR HUS-138017
...
4
BRKT DECK SW BAR HUS-138440
...
4A
BOLT SHD 5/16-18 HUS-132827
...
5
SUB= 85902 HUS-4939M
...
6
SUB= 130833 HUS-130832
...
7
NUT HUS-73800500
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
WASHER BLADE HUS-129962
...
11
"BLADE.42"" HIPERF" HUS-138498
...
12
BEARING.BALL HUS-129895
...
13
SUB= 137646 HUS-137645
...
14
HSG ASM MANDREL HUS-128774
...
15
BEARING HUS-110485X
...
16
SUB= 140329 HUS-136929
...
17
BOLT CARRIAGE HUS-72110618
...
18
BOLT HUS-72140505
...
19
NUT HUS-73800500
...
20
SUB= 918136888 HUS-136888
...
21
SUB= 73690500 HUS-73680500
...
22
STIFFENER BRKT HUS-134753
...
23
DEFLECTOR BRKT HUS-131267
...
24
CAP-SLEEVE LT HUS-105304X
...
25
SPRING TORSION HUS-123713X
...
26
NUT PUSH M HUS-110452X
...
27
DEFLECTOR.SHIELD HUS-130968
...
28
WASHER HUS-19111016
...
29
HINGE ROD HUS-131491
...
30
SUB= 17580520 HUS-78158
...
31
WASHER HUS-129963
...
32
SUB= 153535 HUS-129861
...
33
SUB= 139729 HUS-137266
...
34
BOLT HUS-72110614
...
35
XMAS TREE FASTNER HUS-133835
...
36
FLAT IDLER PULLEY HUS-131494
...
37
WASHER GT HUS-19131612
...
38
RETAINER SPACER HUS-133502
...
39
IDLER ARM STIFF HUS-133503
...
40
SUB= 73690600 HUS-73680600
...
41
PIVOT ROD HUS-133551
...
42
SUB= 3145 HUS-76020312
...
43
CLUTCH ROD SECOND HUS-133504
...
44
SUB= 140088 HUS-134236
...
45
RETAINER M HUS-4497H
...
46
SCREW.1/4-20X5/8 HUS-137729
...
47
SPRING EXTENSION HUS-131335
...
48
HARD SMALL WASHER HUS-133944
...
49
SUB= 151785 HUS-133940
...
50
SHOULDER BOLT HUS-131340
...
51
LOCKNUT HUS-69180
...
52
SUB= 139888 HUS-105529X
...
53
BRAKE PAD ARM ASM HUS-131845
...
54
HARDENED WASHER HUS-133943
...
55
IDLER ARM HUS-133844
...
56
SPACER RETAINER HUS-122052X
...
57
BUSHING HUS-127498
...
58
SUB= 918128759 HUS-128759
...
59
LEVER.ASM.CLUTCH HUS-138003
...
60
"ROD, CLUTCH PRIM" HUS-134666
...
61
RETURN SPRING HUS-131870
...
62
CLUTCH ARM SECOND HUS-127847
...
63
WASHER HUS-121748X
...
64
RING HUS-12000029
...
65
SHOULDER BOLT HUS-128903
...
66
SPRING KEEPER HUS-127845
...
67
SUB= 532132044 HUS-132044
...
68
BELT-V.92.4.MWR HUS-130969
...
xx
MANDREL ASM HUS-130794
...
xx
SUB= 145411 HUS-138358
