Husqvarna X1236B (1991) Tractor

Model: X1236B (1991)

Back To Assemblies

Save Part Not Listed?
product name

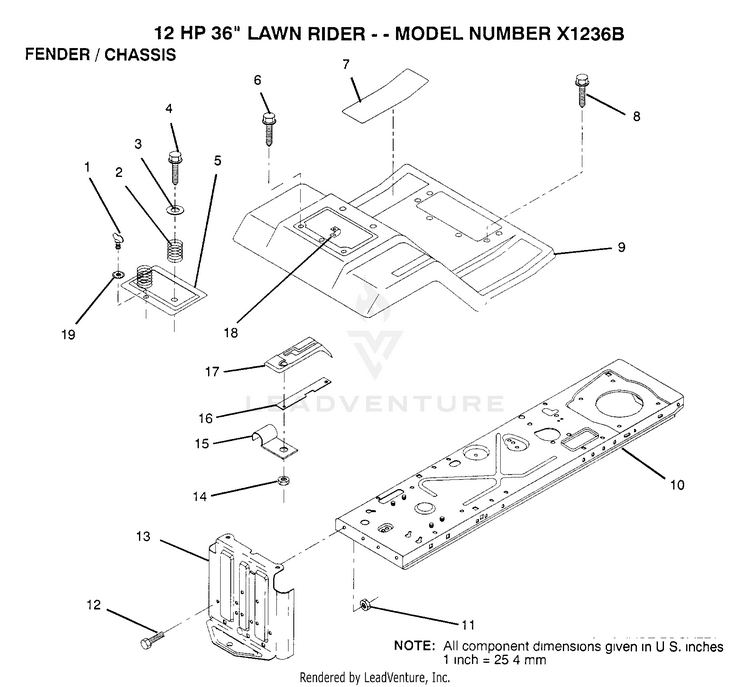

FENDER AND CHASSIS

...
...
1
STUD.1/4.TURN HUS-123650X
...
2
SPRING COMPRESSIO HUS-124181X
...
3
WASHER HUS-19132012
...
4
SCREW HUS-17490612
...
5
DOOR, FENDER HUS-122008X475
...
6
SCREW LT HUS-17490508
...
7
PAD FOOTREST HUS-124144X
...
8
SCREW HUS-17490512
...
9
"FENDER,FOOTREST" HUS-124332X475
...
10
FRAME ASS'Y HUS-123645X
...
11
SUB= 73690500 HUS-73680500
...
12
BOLT HUS-74760512
...
13
DRAWBAR HUS-127880
...
14
NUT HUS-124346X
...
15
"CLIP,INSULATOR" HUS-126470X
...
16
"SHIFT LOCK, BAR" HUS-124307X
...
17
CONSOLE SHFT 5SP HUS-126994X
...
18
RECEPTACLE LT HUS-105839X
...
19
RETAINER LT HUS-105838X
...
xx
DECAL, FENDER RH HUS-128001
...
xx
NLA HUS-128004
...
xx
DECAL, CHASSIS, HP HUS-128026
...
xx
DECAL, FENDER HUS-127999
...
xx
DECAL HUS-120822X
...
xx
SUB= 138269 HUS-123637X
