Husqvarna X1236B (1991) Tractor

Model: X1236B (1991)

Back To Assemblies

Save Part Not Listed?
product name

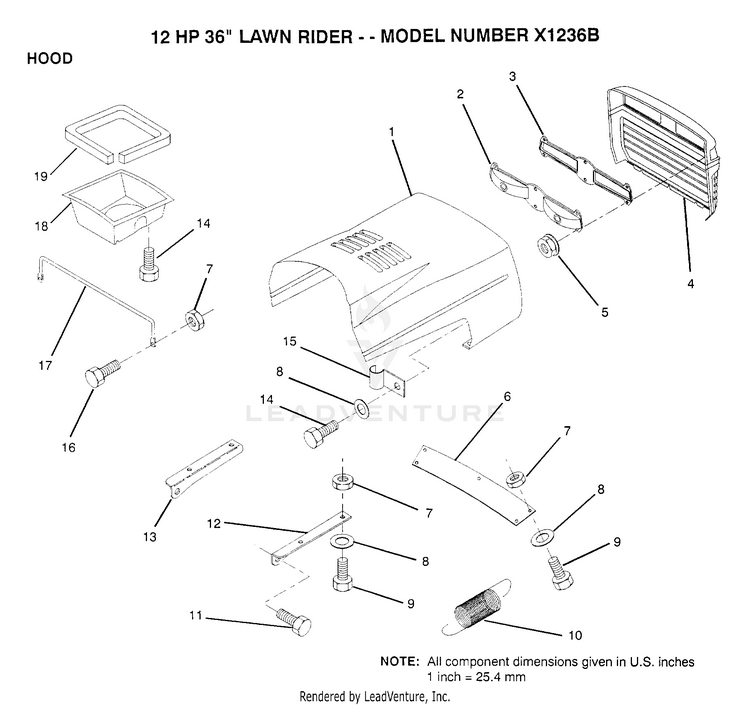

HOOD

...
...
1
SUB= 132918X475 HUS-122032X476
...
2
LIGHT BOX HUS-127177X
...
3
LENS T HUS-127178
...
4
SUB= 134232X428 HUS-127176X476
...
5
NUT HUS-124346X
...
6
STRAP HUS-122550X475
...
7
NUT HUS-73510400
...
8
WASHER HUS-19091016
...
9
BOLT HUS-74780410
...
10
EXT SPRING HUS-124657X
...
11
SUB= 139888 HUS-126675X
...
12
BRKT HOOD RH HUS-122549X
...
13
BRKT HOOD LH HUS-122548X
...
14
SUB= 17521312 HUS-17411310
...
15
CLIP T HUS-2751R
...
16
SUB= 74780414 HUS-74780412
...
17
"BRACE,HOOD" HUS-123693X
...
18
"DUCT,AIR" HUS-123840X
...
19
FOAM STRIP LT HUS-120537X
...
xx
"DECAL,GRILL " HUS-128007
...
xx
"DECAL,HOOD RH " HUS-127997
...
xx
SUB= 127998 HUS-128998
