Husqvarna X 750 (2009-06) Power Cutter

Model: X 750 (2009-06)

Back To Assemblies

Save Part Not Listed?
product name

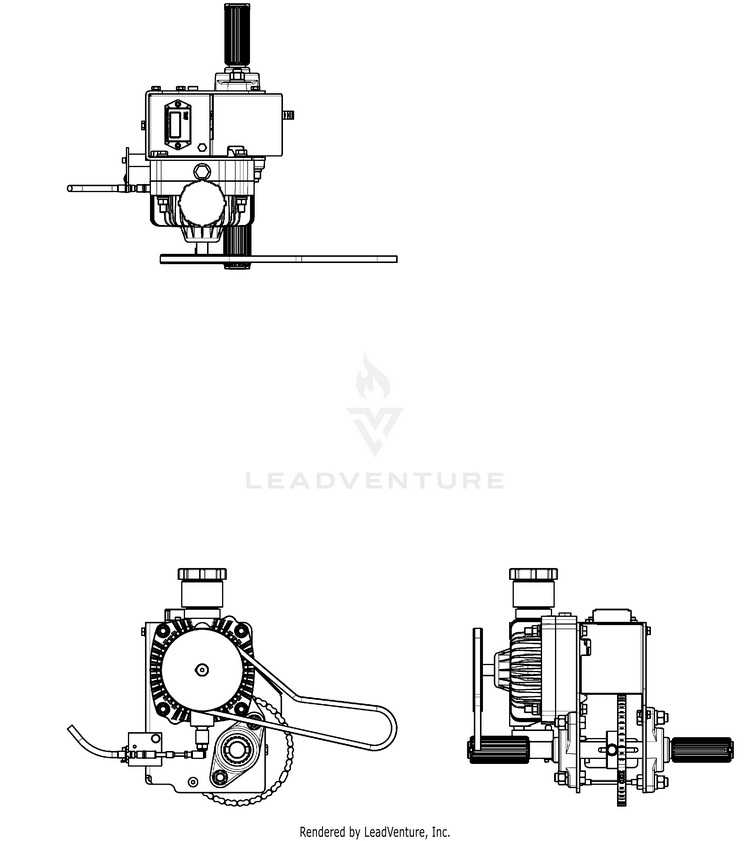

Pump Assembly Sheet Image 2

...
...
1
Frame, Pump HUS-505839601
...
2
Hydrostatic Pump HUS-505738301
...
3
Tube, Driver, Right HUS-505678301
...
4
Tube, Driver, Left HUS-505715201
...
5
Sprocket, 54-Tooth HUS-510346601
...
6
Chain, Roller #35 HUS-505739501
...
7
Connecting Link #35 HUS-505739601
...
8
Sprocket, 10T HUS-505667401
...
9
Key, 1/4 X 1/4 X 2.00 HUS-521895201
...
10
Bearing, Flange, 1" Id HUS-505689801
...
11
Drive Shaft HUS-510345601
...
12
Sheave, 1/3V 5.00 Od X 17Mm Id HUS-505739801
...
13
Cover, Pump Assembly HUS-505818501
...
14
Arm, Speed Control HUS-505817101
...
15
Washer, 1/4" Flat S.S. HUS-505632001
...
16
Block, Cable Mount HUS-510343101
...
17
Key, Woodruff, #3 HUS-505734701
...
18
Belt, 3L345 HUS-505484001
...
19
Cable, Speed Control HUS-505823001
...
20
Nut, Nyloc, 3/8-16 HUS-505723401
...
21
Tachometer/Hour Meter HUS-505814301
...
22
Cable Bracket HUS-505823401
...
23
Fitting, Ball Joint HUS-505823501
...
24
Nut, Nyloc, #10-32 S.S. HUS-505822201
...
25
Shcs 10-32 X 1/2 S.S. HUS-505729601
...
26
Washer, Split 1/4" S.S. HUS-505632801
...
27
HHB 1/4-20 X .625 S.S. HUS-505627401
...
28
Nut, Nyloc, 1/4-20 Cad HUS-505630501
...
29
Shcs 1/4-20 X 1/2 S.S. HUS-505722301
...
30
Snap Ring, Ext 1.000" HUS-505733401
...
31
HHB 3/8-16 X 3.5 HUS-505727701
...
32
Washer, 3/8" Flat HUS-505724601
...
33
Washer, 3/8"X .06"Thk Flat S.S. HUS-505724001
...
34
Washer, Split 3/8" S.S. HUS-505731001
...
35
Nut, 3/8-16 Hex, Gr5 Zinc HUS-505732101
...
36
Shsb, 3/8 X 3/8 HUS-505726101
...
37
Washer, Split #10 S.S. HUS-505633101
...
38
Nut, 1/2-13 Hex, Gr5 Zinc HUS-505733201
...
39
Washer, Split 1/2" S.S. HUS-505731101
...
40
HHB 1/2-13 X 1 1/2 HUS-522442801
...
41
Washer, 3/8"X .030"Thk Flat HUS-505724501
...
42
Washer, 5/16" Flat S.S. HUS-505725201
...
43
Washer, Split 5/16" S.S. HUS-505633001
...
44
Nut, 5/16-18 Hex, S.S. HUS-505732401
...
45
HHB 5/16-18 X 1 HUS-505727501
...
46
HHB 1/4-20 X 1 S.S. HUS-505727301
