Husqvarna X 750 (2009-06) Power Cutter

Model: X 750 (2009-06)

Back To Assemblies

Save Part Not Listed?
product name

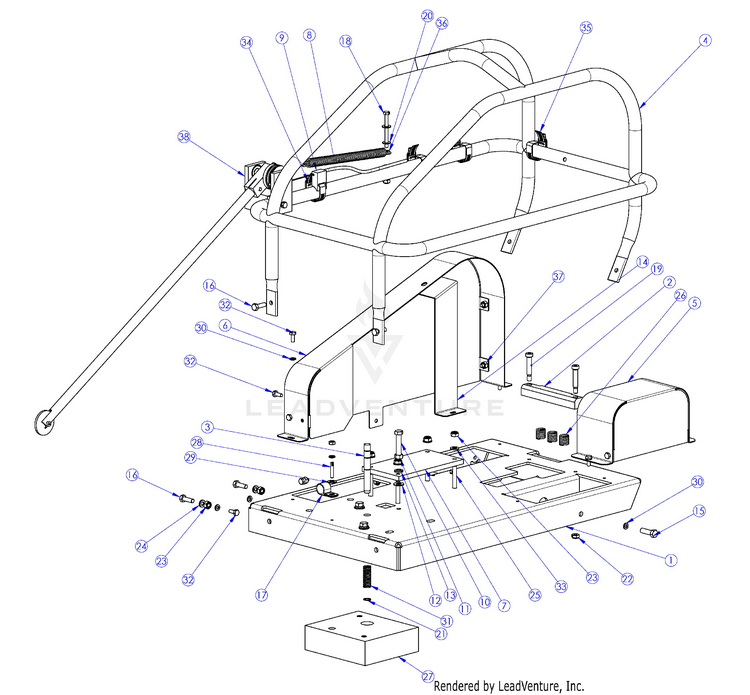

Main Frame

...
...
1
Mainframe, X750 HUS-505839501
...
2
Block, Spring HUS-505831901
...
3
Shaft, Arbor Lock HUS-505816901
...
4
Roll Cage, X750 HUS-505839401
...
5
Cover, Rear Wheel HUS-505840301
...
6
Belt Cover HUS-505840201
...
7
Pad, Motor Mount HUS-505655401
...
8
Spring, Extension HUS-505737301
...
9
Block, Cable Mount HUS-505819201
...
10
HHB 3/8-16 X 2 S.S. All Thrd HUS-505821201
...
11
Nut, 3/8-16 Hex, Gr5 Zinc HUS-505732101
...
12
Washer, 3/8" Flat HUS-505724601
...
13
Washer, Split 3/8" S.S. HUS-505731001
...
14
Cover, Belt, Ext, X750 HUS-505840701
...
15
HHB 3/8-16 X 1 1/4 HUS-505727601
...
16
HHB 5/16-18 X 1 HUS-505727501
...
17
Hose Clamp, Oil Drain HUS-505775801
...
18
HHB 1/4-20 X 2.75 S.S. All Thrd HUS-505728001
...
19
Shsb, 3/8 X 1 1/2 HUS-505833501
...
20
Washer, 1/4" Flat S.S. HUS-505632001
...
21
Snap Ring, Ext .500" HUS-505647801
...
22
Nut, Nyloc, 5/16-18 .265 Ht. HUS-505631701
...
23
Nut, Nyloc, 5/16-18 Cad HUS-505630601
...
24
Washer, Split 5/16" S.S. HUS-505633001
...
25
HHB 5/16-18 X 2 Gr8 HUS-505687701
...
26
Spring, Pump HUS-505824001
...
27
Housing, Arbor Lock HUS-510345701
...
28
Spring Anchor, 1/4-20 X 1 HUS-505774501
...
29
Washer, 1/4" Flat Sae Zinc HUS-505725501
...
30
Washer, Split 1/4" S.S. HUS-505632801
...
31
Spring, Arbor Lock HUS-505824101
...
32
HHB 1/4-20 X .625 S.S. HUS-505627401
...
33
Washer, 5/16" Flat Sae Cad HUS-505632101
...
34
Hose Clamp, .625"W X 1.50" HUS-505822501
...
35
Hose Clamp, .313"W X 1.50" HUS-505834301
...
36
Nut, 1/4-20 Hex, S.S. HUS-505631901
...
37
Nut, Nyloc, 1/4-20 Cad HUS-505630501
...
38
Guide Arm Assembly HUS-510272609
