Husqvarna X 750 (2009-06) Power Cutter

Model: X 750 (2009-06)

Back To Assemblies

Save Part Not Listed?
product name

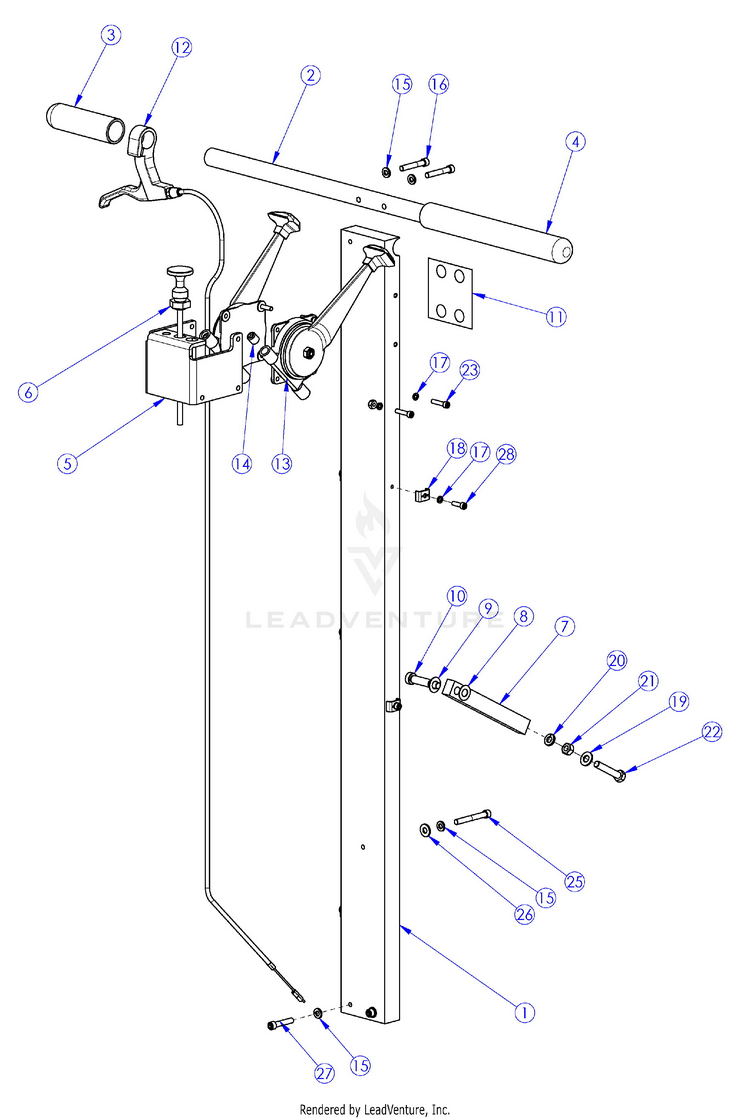

Handle Assembly

...
...
1
Handle, X750 HUS-510346001
...
2
Handle Bar HUS-505816501
...
3
Grip, Foam Handle, 4.5"L Black HUS-505802801
...
4
Grip, Foam Handle, 9.5"L Black HUS-505813201
...
5
Bracket, Control Mount HUS-505816801
...
6
Lock Throttle W/Cable HUS-505842901
...
7
Pump Release Arm HUS-505818101
...
8
Washer, 3/8" Delrin HUS-505634501
...
9
Washer, 3/8"X .03"Thk Flat S.S. HUS-505634201
...
10
Shsb, 3/8 X 1 1/4 HUS-505820701
...
11
Label, Guide/Speed Control HUS-510341401
...
12
Kit, Blade Release, X750 HUS-505482703
...
13
Control Lever Assy HUS-505823601
...
14
Set Screw, Cup .438-20 X .500 HUS-505822401
...
15
Washer, Split 1/4" S.S. HUS-505632801
...
16
Shcs 1/4-20 X 1 1/2 S.S. HUS-505728801
...
17
Washer, Split #10 S.S. HUS-505633101
...
18
Clamp, Metal HUS-505648901
...
19
Washer, 5/16" Flat Sae Cad HUS-505632101
...
20
Washer, Split 5/16" S.S. HUS-505633001
...
21
Nut, 5/16-18 Hex, Gr5 Zinc HUS-505723501
...
22
HHB 5/16-18 X 1.75 Gr8 HUS-505728501
...
23
Shcs 10-32 X 7/8 Blk HUS-505772801
...
24
Nut, Nyloc, #10-32 S.S. HUS-505822201
...
25
Shcs 1/4-20 X 2 S.S. HUS-505728901
...
26
Washer, 1/4" Flat S.S. HUS-505632001
...
27
Shcs 1/4-20 X 1 1/4 S.S. HUS-505628001
...
28
Shcs 10-32 X 5/8 S.S. HUS-505729701
