Husqvarna X 750 (2009-06) Power Cutter

Model: X 750 (2009-06)

Back To Assemblies

Save Part Not Listed?
product name

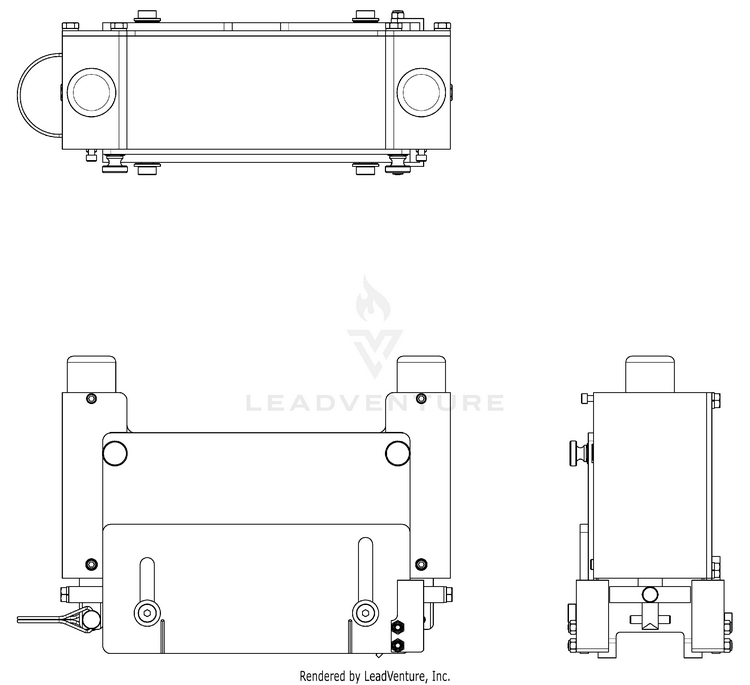

Blade Block Image 2

...
...
1
Panel, Rear, Bb HUS-505841201
...
2
Blade Block, Rear HUS-505840901
...
3
Blade Block, Front HUS-505840801
...
4
3/4 Id X 1 Od X 1 1/2 Bushing HUS-505667701
...
5
Shaft, Rear Blade Block, X750 HUS-505841401
...
6
Plate, Rear Diverter HUS-505840401
...
7
Shaft, Front Blade Block, X750 HUS-505841501
...
8
Block, Shaft Collar, Bb HUS-505839801
...
9
Dowel Pin .250 X 1.25 Steel HUS-505774001
...
10
Snapper Pin, 1/4" X 2 1/2" HUS-505775401
...
11
Cap, Blade Block HUS-505831401
...
12
Top Cover, Bb HUS-505840601
...
13
Snap Ring, Spiral .750" HUS-505748401
...
14
Spring, Bb, X750 HUS-505842501
...
15
Cover, Belt Access HUS-505815701
...
16
Insert, 1/2-13 X 5/16-18 HUS-505748301
...
17
Blade Block Cover HUS-574234909
...
18
Washer, Split #10 S.S. HUS-505633101
...
19
Shcs 10-32 X 1 1/4 S.S. HUS-505591401
...
20
Dust Seal, 3/4" Shaft HUS-505738001
...
21
Plate, Front Diverter HUS-505840501
...
22
Washer, Split 1/4" S.S. HUS-505632801
...
23
HHB 1/4-20 X 1.25 S.S. All Thrd HUS-505728301
...
24
HHB 1/4-20 X .625 S.S. HUS-505627401
...
25
HHB 1/4-20 X .75 S.S. HUS-505627501
...
26
Fhs, 10-24 X 5/8 S.S. HUS-505730201
...
27
Nut, Nyloc, #10-24 Cad HUS-505630401
...
28
Channel, Inner Diverter HUS-505819301
...
29
Cover, Inner Lexan HUS-505841001
...
30
Washer, 3/8" Flat HUS-505724601
...
31
Shsb, 3/8 X 3/8 HUS-505726101
...
32
Washer, 3/8" Delrin HUS-505634501
