Husqvarna X 750 (2009-06) Power Cutter

Model: X 750 (2009-06)

Back To Assemblies

Save Part Not Listed?
product name

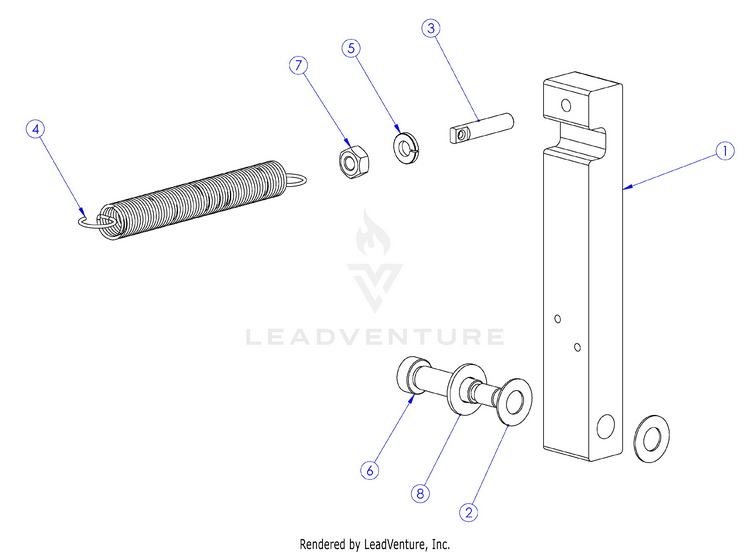

Blade Release Arm

...
...
1
Arm, Depth Gauge HUS-505839901
...
2
Washer, 3/8" Delrin HUS-505634501
...
3
Spring Anchor, 1/4-20 X 1 HUS-505774501
...
4
Spring, Extension HUS-505737901
...
5
Washer, Split 1/4" S.S. HUS-505632801
...
6
Shsb, 3/8 X 1 1/4 HUS-505820701
...
7
Nut, 1/4-20 Hex, S.S. HUS-505631901
...
8
Washer, 3/8" Flat HUS-505724601
Schematic Image Zoomed
