Husqvarna X 750 (2009-06) Power Cutter

Model: X 750 (2009-06)

Back To Assemblies

Save Part Not Listed?
product name

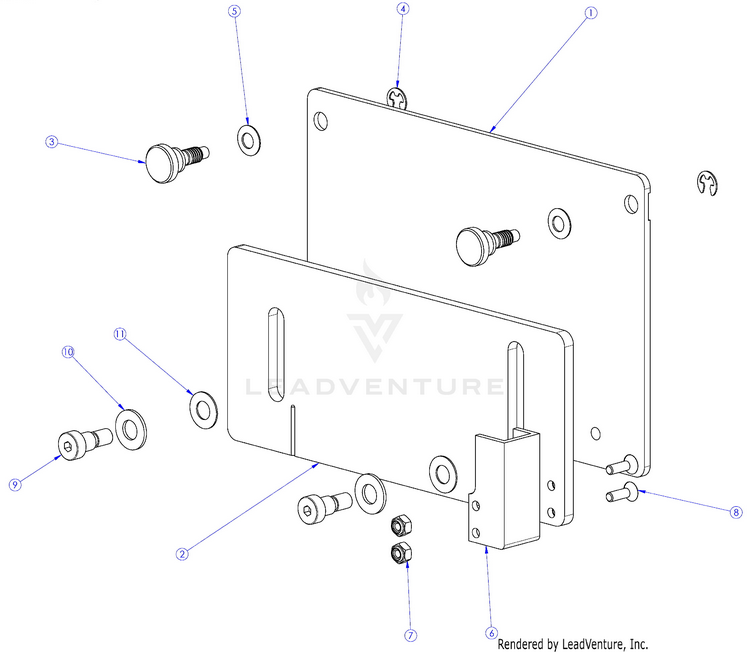

Blade Block Cover

...
...
1
Cover, Bb HUS-505841301
...
2
Cover, Outer Lexan HUS-505841101
...
3
Knob, Bb Cover HUS-505536301
...
4
E-Clip, 1/4" HUS-505536501
...
5
Washer, Bellevelle HUS-505536401
...
6
Channel, Outer Diverter HUS-505819401
...
7
Nut, Nyloc, #10-24 Cad HUS-505630401
...
8
Fhs, 10-24 X 5/8 S.S. HUS-505730201
...
9
Shsb, 3/8 X 3/8 HUS-505726101
...
10
Washer, 3/8" Flat HUS-505724601
...
11
Washer, 3/8" Delrin HUS-505634501
Schematic Image Zoomed
