Husqvarna WZ12B36B (1999 & Before) Tractor

Model: WZ12B36B (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

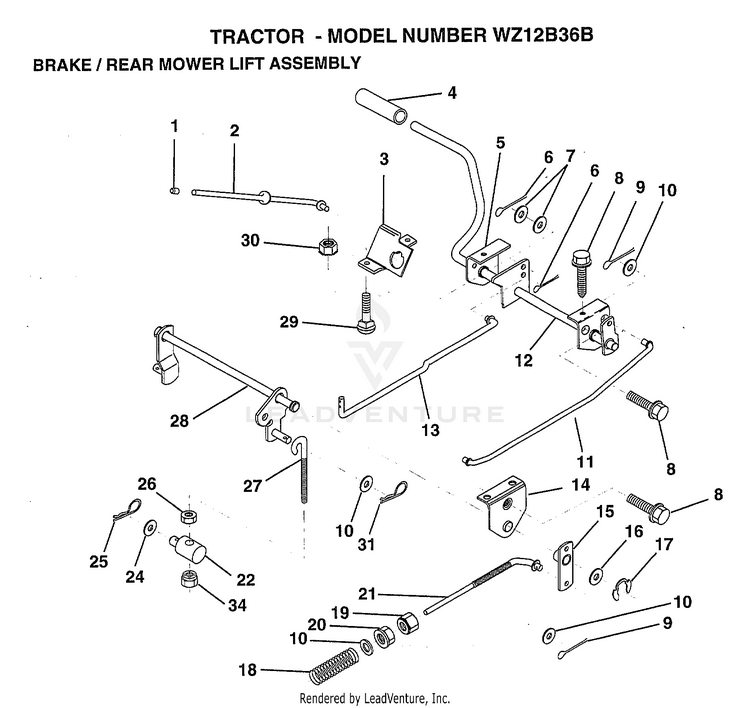

BRAKE/REAR MOWER LIFT ASSEMBLY

...
...
1
PLUNGER CAP T HUS-71673
...
2
"ROD,PARK BRAKE" HUS-123436X
...
3
"BRKT,PARK BRAKE" HUS-123437X
...
4
FOOT PEDAL COVER HUS-8156H
...
5
"BRKT,CLU PEDAL LH" HUS-122504X
...
6
SUB= 3145 HUS-76020312
...
7
WASHER HUS-19131016
...
8
SCREW LT HUS-17490508
...
9
COTTER PIN HUS-76020412
...
10
WASHER HUS-19131316
...
11
"ROD,FRT BRAKE" HUS-123543X
...
12
PEDAL ASM CL/BK36 HUS-139933
...
13
"ROD,CLUTCH" HUS-123394X
...
14
"BRKT,LIFT SHAFT" HUS-121978X
...
15
PVT BRAKE ARM ASM HUS-133332
...
16
WASHER T HUS-19251816
...
17
KLIP RING HUS-12000034
...
18
SPRING ROD BRAKE HUS-151332
...
19
NUT HUS-73350600
...
20
NUT HUS-73800600
...
21
SUB= 532131460 HUS-131460
...
22
TRUNNION.LIFT. HUS-144585
...
24
WASHER HUS-19132012
...
25
SPRING.RETAINER HUS-4921H
...
26
LOCKNUT HUS-73930600
...
27
"LINK, MOWER REAR" HUS-127369
...
28
LIFT ASM MOW REAR HUS-140776
...
29
SUB= 72270506 HUS-72110506
...
30
NUT HUS-73510500
...
31
RETAINER.SPRING HUS-3146R
...
34
SUB= 73690600 HUS-73680600
