Husqvarna WZ12B36B (1999 & Before) Tractor

Model: WZ12B36B (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

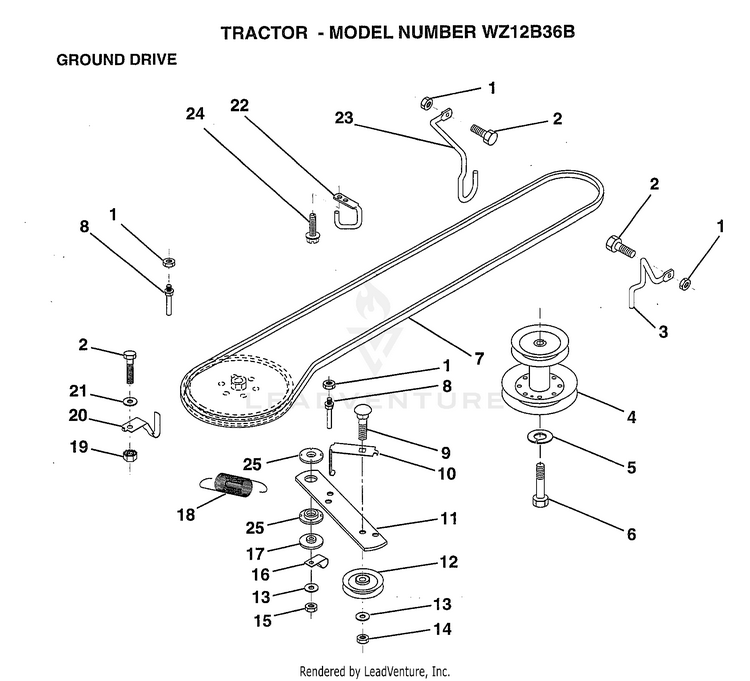

GROUND DRIVE

...
...
1
SUB= 73690500 HUS-73680500
...
2
BOLT HUS-74760512
...
3
KEEPER RH HUS-141342
...
4
PULLEY.ENGINE.LR HUS-138029
...
5
LOCKWASHER HUS-10040700
...
6
HEX BOLT HUS-71170744
...
7
V BELT HUS-126520X
...
8
"KEEPER,DRIVE BELT" HUS-123405X
...
9
BOLT HUS-72140612
...
10
"KEEP,IDLER DR BEL" HUS-123396X
...
11
ARM-IDLER.DR.GRND HUS-150926
...
12
PULLEY.IDLER.FLAT HUS-123674X
...
13
WASHER HUS-19131316
...
14
LOCKNUT HUS-73930600
...
15
SUB= 73690600 HUS-73680600
...
16
"CLIP,INSULATOR" HUS-126471X
...
17
SPACER HUS-150932
...
18
SUB= 532131459 HUS-131459
...
19
NUT HUS-73510500
...
20
KEEPER.BELT.T/A HUS-139919
...
21
WASHER HUS-19111016
...
22
"KEEPER,FRA DR BEL" HUS-123404X
...
23
KEEPER MOWER LH HUS-140916
...
24
SCREW HUS-17720408
...
25
BUSHING.NYLON HUS-150935
