Husqvarna WZ125H36B (1999 & Before) Tractor

Model: WZ125H36B (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

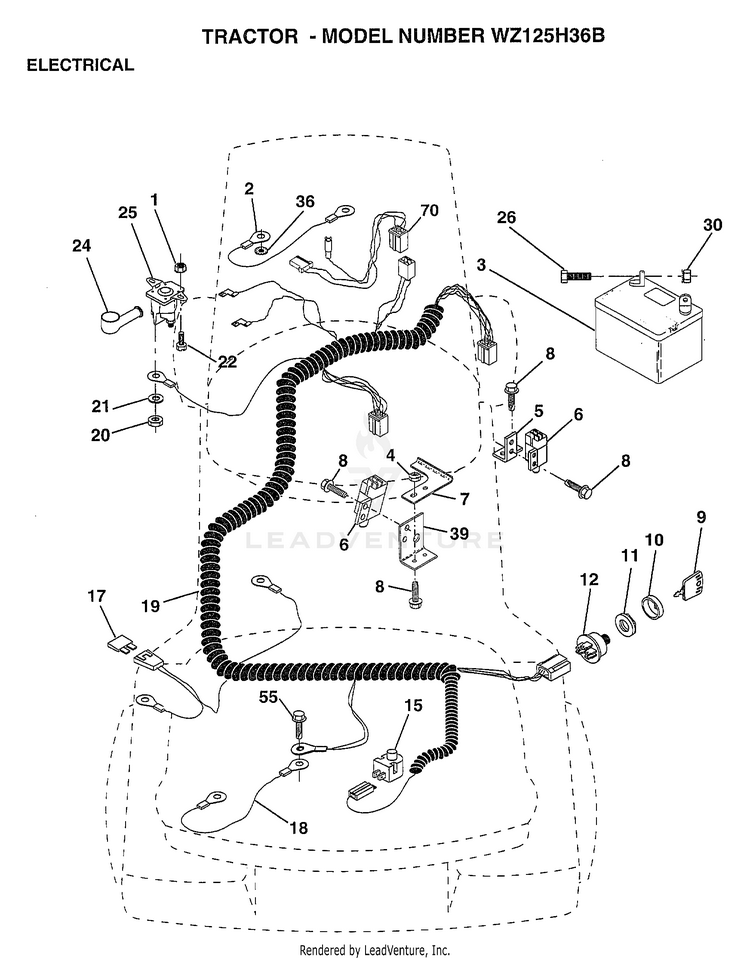

ELECTRICAL

...
...
1
NUT HXKEP 1/4X20 HUS-73640400
...
2
CABLE ASM. HUS-108423X
...
3
SUB= 123899X HUS-144924
...
4
LOCKNUT HUS-69180
...
5
BRACKET LT HUS-108236X
...
6
SWITCH INTERLOCKT HUS-109553X
...
7
KEEPER.ACTUAT.LR. HUS-146374
...
8
SCREW HUS-17021008
...
9
KEY MLD GEN DELTA HUS-140401
...
10
COVER KEY SWITCH HUS-141226
...
11
SUB= 145774 HUS-140400
...
12
SWITCH.IGNITION HUS-163088
...
15
SWITCH SEAT HUS-121305X
...
17
FUSE HYT HUS-108824X
...
18
CABLE ASSY HUS-128353
...
19
HARNESS.IGNITION HUS-166143
...
20
NUT HUS-73350400
...
21
SUB= 10040400 HUS-10090400
...
22
BOLT HXHD FIN HUS-71110408
...
24
SUB= 154336 HUS-131563
...
25
SUB= 146154 HUS-145673
...
26
BOLT LT HUS-74760412
...
30
NUT HUS-73510400
...
36
LOCKWASHER HUS-11150400
...
39
BRACKET SWT CLUTC HUS-141735
...
55
SCREW LT HUS-17490508
...
70
HARNESS.ENGINE HUS-166658
