Husqvarna WT3100 (2008-06) Trimmer/Edger

Model: WT3100 (2008-06)

Back To Assemblies

Save Part Not Listed?
product name

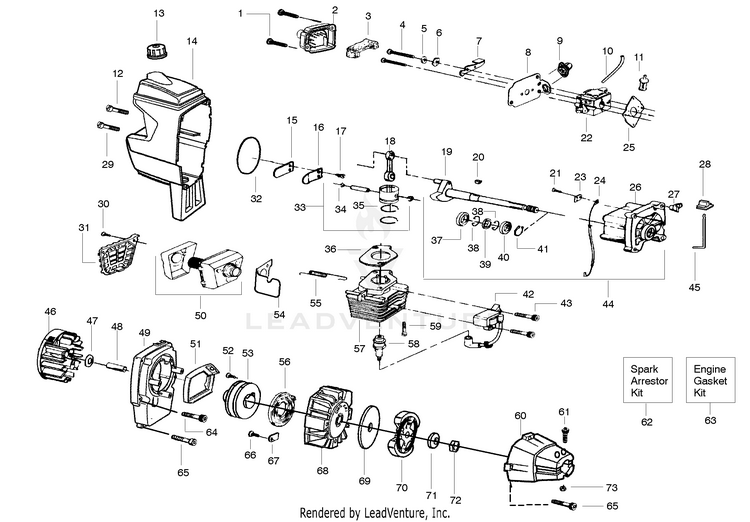

Engine

...
...
1
Screw HUS-530015650
...
2
Cover-Air Filter HUS-530054589
...
3
Foam-Air Filter HUS-530054627
...
4
Screw HUS-530015849
...
5
Spacer-Choke HUS-530015852
...
6
Washer HUS-530015254
...
7
Shutter-Choke HUS-530038103
...
8
Plate-Choke HUS-530054594
...
9
Assy-Bulb HUS-530047721
...
10
Kit-Fuel Line HUS-530069599
...
11
Assy-Fuel Pick-up HUS-530095646
...
12
Screw HUS-530015772
...
13
Assy-Fuel Cap. HUS-530014347
...
14
Assy-Shroud/Tank HUS-530054651
...
15
Valve-Reed HUS-530027593
...
16
Stop-Reed Valve HUS-530054596
...
17
SCREW 6-19X.437 HUS-545227101
...
18
Assy-Connecting Rod HUS-530010960
...
19
Assy-Crankshaft HUS-530010934
...
20
Key-Flywheel HUS-530015126
...
21
Screw HUS-530015780
...
22
Kit-Carburetor Ass'y. (WT-583) HUS-530071332
...
22
Kit-Carburetor Ass'y. (WT-629) HUS-530071638
...
23
Insulator-Switch HUS-530027546
...
24
Assy-Leadwire HUS-530027547
...
25
Gasket-Carb.(kit) HUS-530069276
...
26
Assy-Crankcase (Incls. 37-40) HUS-545081901
...
27
Ramp-Switch HUS-530027545
...
28
Cover-Switch HUS-530038309
...
29
Screw HUS-530015771
...
30
Screw HUS-530015717
...
31
Guard-Muffler HUS-530027781
...
32
O-ring-C'case(kit) HUS-530069276
...
33
Kit-Piston HUS-530071999
...
34
Piston Pin Retainer HUS-530015162
...
35
Piston Ring (2) HUS-530012595
...
36
Gasket-Cyl. (kit) HUS-530069276
...
37
Bearing-Inner HUS-530032103
...
38
Ring-Retaining HUS-530015787
...
39
Seal-Crankshaft HUS-530019158
...
40
Bearing-Outer HUS-530032102
...
41
Retaining Ring-C'shaft HUS-530015789
...
42
Module-Ignition HUS-530039134
...
43
Screw HUS-530016357
...
44
Assy-C'case/C'shaft (Incls.19, 26 & 37-41) HUS-530071705
...
45
Spring-Switch HUS-530027959
...
46
Assy-Flywheel HUS-530039189
...
47
Washer HUS-530016030
...
48
Spacer-Clutch HUS-530027511
...
49
Housing-Fan HUS-530027948
...
50
Kit-Muffler HUS-530069310
...
51
Assy-Retainer/Eyelet HUS-530054723
...
52
Screw HUS-530016392
...
53
Kit-Starter Pulley (Incls. 52) HUS-530071387
...
54
Shield HUS-530058957
...
55
Spring-Muffler HUS-530036409
...
56
SPRING STARTER HUS-545008015
...
57
Kit-Cylinder HUS-530071581
...
58
Spark Plug (RCJ-6Y) HUS-952030249
...
59
Screw HUS-530001624
...
60
Assy-Clutch Housing HUS-530014017
...
61
Screw HUS-530015767
...
62
Kit-Spark Arrestor HUS-952701612
...
63
Kit-Engine Gasket (Incls. 25, 32 & 36) HUS-530069276
...
64
Screw HUS-530016315
...
65
Screw HUS-530015770
...
66
Screw HUS-530015496
...
67
Retainer HUS-530027523
...
68
Assy-Pulley Housing HUS-530014009
...
69
Washer-Clutch HUS-530094189
...
70
Kit-Clutch Ass'y. HUS-530069254
...
71
Washer-Bevel HUS-530015796
...
72
Nut HUS-530016320
...
73
Locknut. HUS-530015768
