Husqvarna WT200 LE Type 2 (2006-12) Blower

Model: WT200 LE Type 2 (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

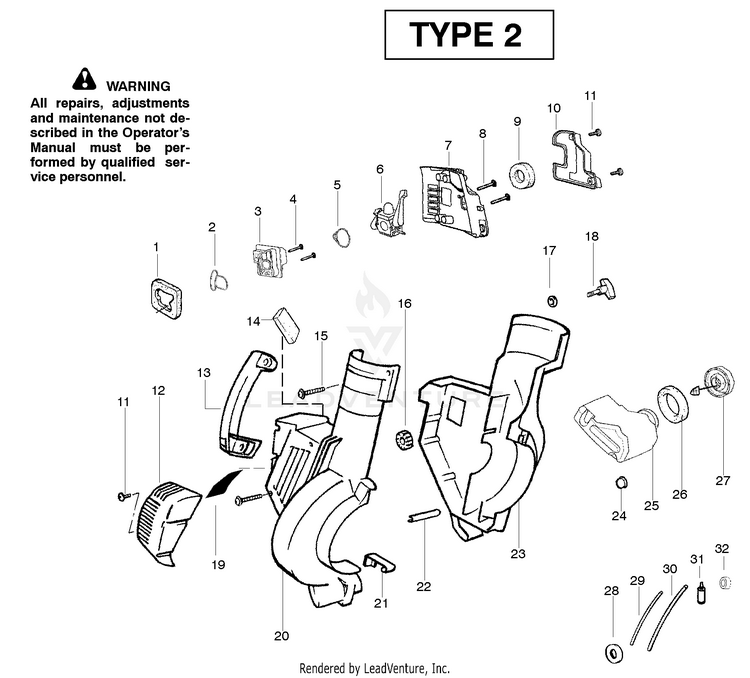

Housing - Type 2

...
...
1
Air Dam (kit) HUS-530071459
...
2
Gasket-Adapter (kit) HUS-530071458
...
3
Carburetor Adaptor HUS-530035561
...
4
Screw HUS-530016309
...
5
Gasket-Carburetor (kit) HUS-530071458
...
6
Kit-Carb Ass'y. (C1Q-W11) HUS-530071465
...
xx
Kit-Carb Ass’y. Walbro-(WT-606) HUS-530071775
...
7
Air Box HUS-530056639
...
8
Screw-Carb. HUS-530015849
...
9
Filter-Air HUS-530049383
...
10
Cover-Air Filter HUS-530056582
...
11
Screw HUS-530016349
...
12
Guard-Muffler HUS-530056642
...
13
Handle HUS-530095469
...
14
Foam - 71.12mm (kit) HUS-530071459
...
15
Screw HUS-530015886
...
16
Isolator HUS-530049323
...
17
Nut HUS-530015197
...
18
Knob-Tube Clamp HUS-530016322
...
19
Reflector-Heat (kit) HUS-530071458
...
20
Housing-Right HUS-530056690
...
21
Spring-Cover Latch HUS-530402044
...
22
Guide-Starter Rope HUS-530049617
...
23
Housing-Left HUS-530056691
...
24
Isolator-Crankcase HUS-530036792
...
25
Assy-Fuel Tank HUS-545058007
...
26
Gasket-Fuel Tank HUS-530049527
...
27
Assy-Fuel Cap HUS-530057973
...
28
Grommet-Shroud HUS-530049656
...
29
Kit-Line Carb/Purge HUS-530069247
...
30
Kit-Line Tank/Purge HUS-530069216
...
31
Assy-Fuel Pick-up HUS-530095646
...
32
Grommet-Fuel line (kit) HUS-530071459
...
32
Operator Manual Not Shown HUS-530165755
...
32
Warning Decal Not Shown HUS-530057414
...
32
Decal-Start Inst. Not Shown HUS-530057215
