Husqvarna WS12538A (1991) Tractor

Model: WS12538A (1991)

Back To Assemblies

Save Part Not Listed?
product name

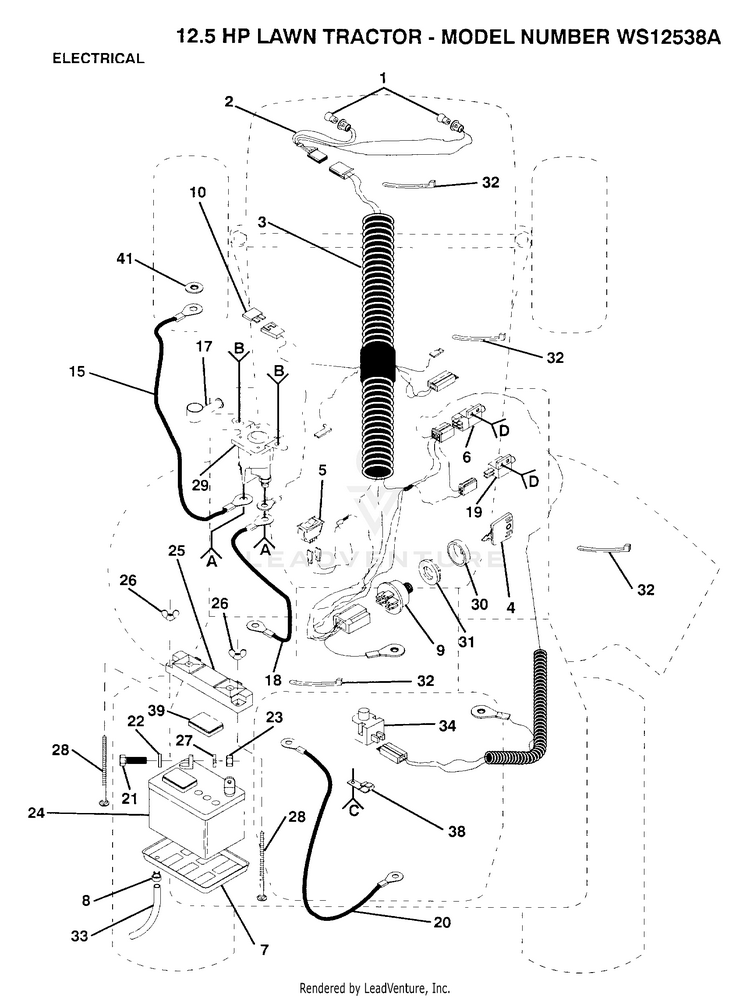

ELECTRICAL

...
...
1
SUB= 4152J HUS-7662J
...
2
HARNESS T HUS-110859X
...
3
"HARNESS,WIRING" HUS-124904X
...
4
KEY HUS-122147X
...
5
SWITCH LT HUS-110712X
...
6
SWITCH-INTER. GT HUS-104445X
...
7
"TRAY T, BATTERY" HUS-7603J
...
8
HOSE CLAMP T HUS-109596X
...
9
SUB= STD365402 HUS-4406R
...
10
FUSE HYT HUS-108824X
...
15
CABLE T HUS-4207J
...
17
SUB= 154336 HUS-719J
...
18
STARTER CABLE GT HUS-5114J
...
19
SWITCH INTERLOCKT HUS-109553X
...
20
CABLE ASM. HUS-108423X
...
21
BOLT LT HUS-74760412
...
22
WASHER HUS-19091016
...
23
SUB= 50675 HUS-73220400
...
24
SUB= 123899X HUS-121265X
...
25
SUB= 150109 HUS-102476X
...
26
SUB= 146525 HUS-123198X
...
27
LOCKWASHER HUS-10040400
...
28
BOLT HUS-72240460
...
29
SUB= 146154 HUS-109081X
...
30
SUB= 147626 HUS-109787X
...
31
SUB= 124211X HUS-109788X
...
32
WIRE TIE HUS-7192 J
...
33
SUB= 109238X HUS-105687X
...
34
SWITCH SEAT HUS-121305X
...
38
CLIP T HUS-4171R
...
39
"CAP,BATTERY " HUS-121264X
...
41
LOCKWASHER HUS-11050400
...
xx
SHEET INSTR LT HUS-101539X
...
xx
NLA HUS-129841
...
xx
NLA HUS-127903
...
xx
DECAL HUS-121549X
