Husqvarna WS12538A (1991) Tractor

Model: WS12538A (1991)

Back To Assemblies

Save Part Not Listed?
product name

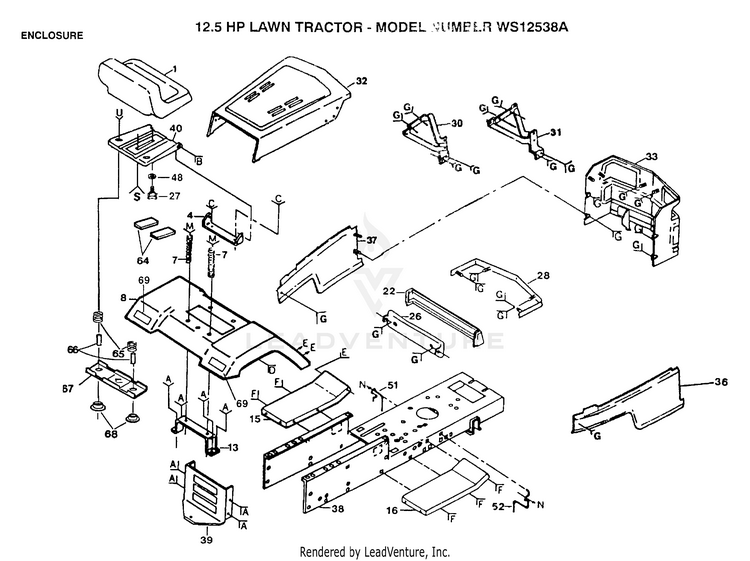

ENCLOSURES

...
...
1
SUB= 140121 HUS-127429X
...
4
SUB= 140551 HUS-126656X
...
7
SPRING COMPRESSIO HUS-124181X
...
8
FENDER HUS-109872X424
...
13
SUB= 136619 HUS-109873X
...
15
SUB= 145244X424 HUS-105465X424
...
16
SUB= 145243X424 HUS-105464X424
...
22
SUB= 133954 HUS-124400X
...
26
SUB= 132257 HUS-110897X
...
27
"KNOB 1/2"" YT" HUS-120068X
...
28
"STRAP,GRILL" HUS-109745X424
...
30
"HINGE,HOOD,LH T" HUS-105797X
...
31
"HINGE,HOOD,RH T" HUS-105792X
...
32
SUB= 128561X424 HUS-105682X424
...
33
GRILL HUS-128312
...
36
"PANEL,SIDE RH" HUS-106927X424
...
37
"PANEL,SIDE LH" HUS-106929X424
...
38
CHASSIS ASS'Y HUS-127168X
...
39
DRAWBAR LT/YT HUS-127866
...
40
SUB= 155925 HUS-124294X
...
48
WASHER HUS-19171912
...
51
BELT GUIDE HUS-121440X
...
52
BELT GUIDE HUS-121441X
...
64
STRIP FORM HUS-121251X
...
65
SPRING COMPRESSED HUS-123740X
...
66
SPACER SPLIT HUS-121249X
...
67
BRKT SWITCH HUS-121246X
...
68
BUSHING HUS-121248X
...
69
SUB= 106202X HUS-106202
...
xx
DECAL T HUS-101892X
...
xx
SUB= 146046 HUS-109199X
...
xx
DECAL HUS-120822X
...
xx
DECAL, LOGO, FENDER HUS-129497
...
xx
NLA HUS-129823
...
xx
DECAL HUS-129487
...
xx
DECAL HUS-129488
...
xx
DECAL HUS-129492
