Husqvarna WS12538A (1991) Tractor

Model: WS12538A (1991)

Back To Assemblies

Save Part Not Listed?
product name

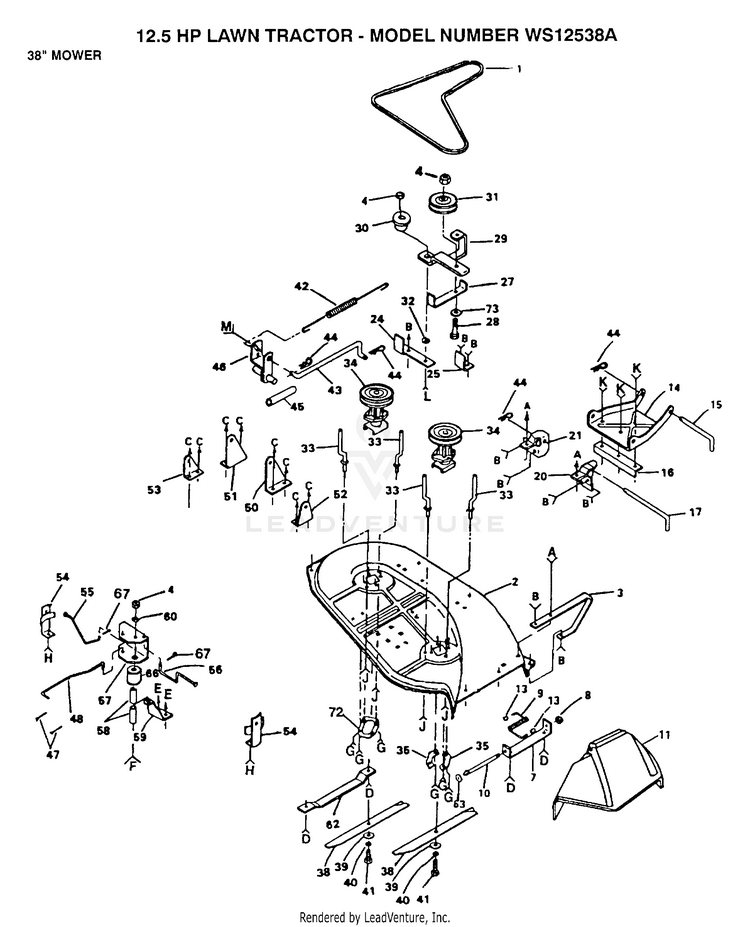

MOWER

...
...
1
BELT-V.79.1.MWR HUS-106085X
...
2
SUB= 144725 HUS-121259X
...
3
SUB= 128772 HUS-8417J
...
4
SUB= 73690600 HUS-73680600
...
7
SUB= 137607 HUS-105896X
...
8
NUT PUSH M HUS-110452X
...
9
SUB= 123713X HUS-106734X
...
10
ROD-HINGE T HUS-106735X
...
11
DEFLECTOR-SHLD T HUS-106736X
...
13
CAP-SLEEVE LT HUS-105304X
...
14
LINK.PARALLEL HUS-105662X
...
15
"ROD, FRT. PARAL T" HUS-105744X
...
16
LINK STOP HUS-105872X
...
17
HINGE PIN T HUS-109835X
...
20
BRACKET RH LT HUS-109598X
...
21
BRACKET LH T HUS-109597X
...
24
SUPPORT ARM T HUS-109503X
...
25
STOP T HUS-109504X
...
27
GUIDE.BELT HUS-126756X
...
28
SUB= 74930632 HUS-74760632
...
29
"ARM,IDLER" HUS-127163X
...
30
SPACER RETAINER HUS-106902X
...
31
SUB= 121316X HUS-123688X
...
32
"WASHER, WEAR LT" HUS-106513X
...
33
BELT KEEPER LT HUS-102669X
...
34
SUB= 121687X HUS-121676X
...
35
SUPPORT PLATE LT HUS-100668L
...
36
SCREW HUS-17490614
...
38
"BLADE.38"" HI-LI" HUS-121263X
...
39
WASHER HUS-19132012
...
40
SUB= 10040600 HUS-10030600
...
41
BOLT.3/8-24X1-1/2 HUS-74610624
...
42
SPRING LT HUS-108250X
...
43
ROD LT HUS-108235X
...
44
SPRING.RETAINER HUS-4921H
...
45
SPACER T HUS-6404J
...
46
SUB= 109892X HUS-124066X
...
47
SUB= 76020624 HUS-76020616
...
48
ROD BRAKE LT HUS-108247X
...
50
BRACKET LT HUS-108243X
...
51
BRACKET LT HUS-108241X
...
52
"BRKT,SUSP RH T" HUS-105857X
...
53
"BRKT,SUSP REAR LH" HUS-108673X
...
54
BRAKE LT HUS-106578X
...
55
"ROD, BRAKE LH LT" HUS-106463X
...
56
ROD BRAKE LT HUS-108249X
...
57
"BRK,BRAKE,PVT LT" HUS-106456X
...
58
SPACER BRAKE LTV HUS-100672K
...
59
BRACKET SUPT LTV HUS-100673L
...
60
WASHER HUS-19131614
...
62
RUNNER-LH M HUS-7631J
...
63
WASHER HUS-19111016
...
66
SPACER HUS-122314X
...
67
SUB= 3145 HUS-76020308
...
72
SUPPORT T HUS-110445X
...
73
WASHER HUS-19131316
...
xx
MOWER ASSY HUS-123928X
...
xx
DECAL.LT HUS-105814X
...
xx
DECAL YT HUS-109820X
...
xx
DECAL WARNING HUS-121349X
