Husqvarna WS1236A (1991) Tractor

Model: WS1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

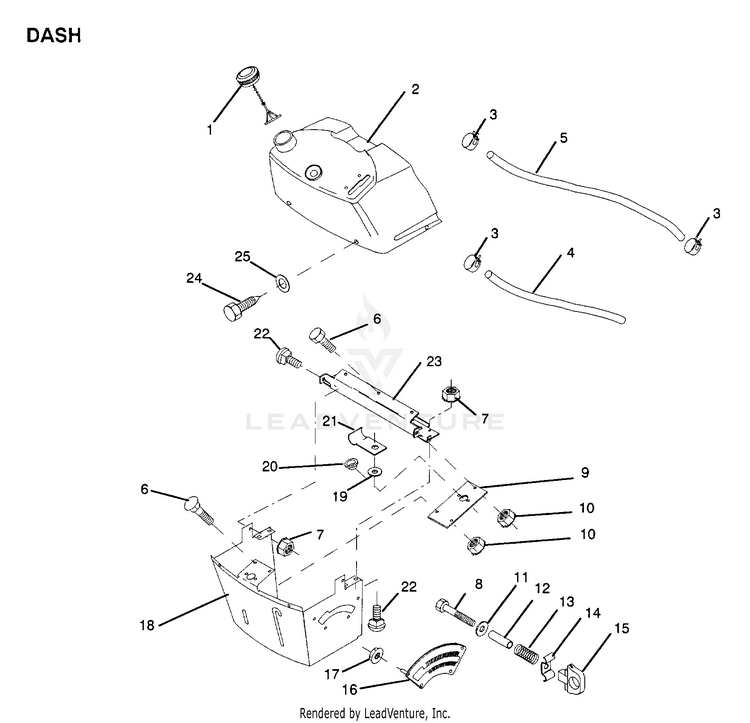

DASH

...
...
1
SUB= 141523 HUS-122015X
...
2
SUB= 138393 HUS-123986X
...
3
HOSE CLAMP HUS-123487X
...
4
FUEL LINE T HUS-8548R
...
5
SUB= 295J HUS-8544R
...
6
SUB= 74780414 HUS-74780412
...
7
NUT HUS-73510400
...
8
BOLT HUS-74760432
...
9
"PLATE,SUPT " HUS-130051
...
10
LOCKNUT HUS-73690400
...
11
WASHER HUS-19091413
...
12
SPACER SPLIT HUS-121249X
...
13
SPRING M HUS-3720R
...
14
"KNOB,HGT RETAINER" HUS-126450X
...
15
KNOB HUS-126115X
...
16
ADJUSTER QUAD HUS-122023X
...
17
NUT HUS-124346X
...
18
SUPPORT DASH HUS-121789X
...
19
WASHER PM HUS-19091216
...
20
SUB= 9151R HUS-110436X
...
21
CLIP T HUS-2751R
...
22
BOLT HUS-72110404
...
23
"BRAKE,CROSS" HUS-122016X
...
24
SUB= 818000408 HUS-130052
...
25
WASHER HUS-19090816
