Husqvarna WS1236A (1991) Tractor

Model: WS1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

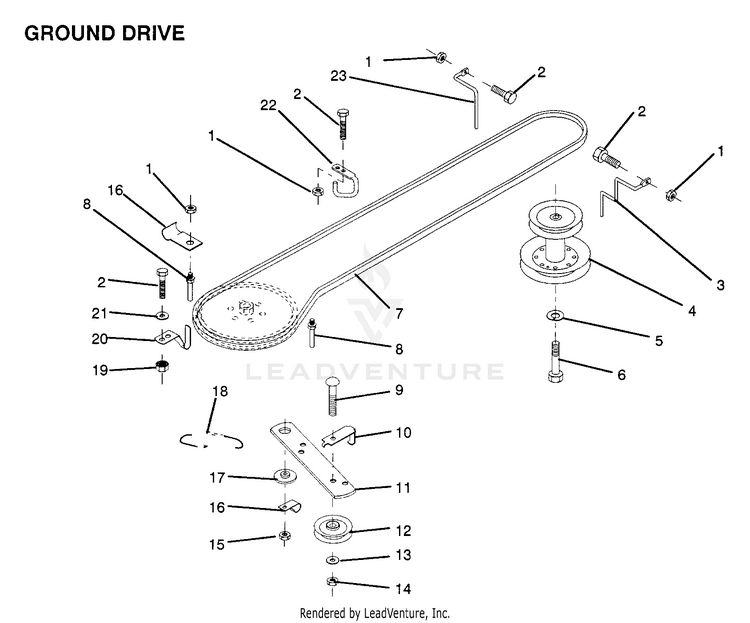

GROUND DRIVE

...
...
1
SUB= 73690500 HUS-73680500
...
2
BOLT HUS-74760512
...
3
KEEPER ENG BEL LH HUS-123448X
...
4
SUB= 135893 HUS-123400X
...
5
LOCKWASHER HUS-10040700
...
6
BOLT HUS-71130720
...
7
V BELT HUS-126520X
...
8
"KEEPER,DRIVE BELT" HUS-123405X
...
9
BOLT HUS-72140612
...
10
"KEEP,IDLER DR BEL" HUS-123396X
...
11
SUB= 140911 HUS-123395X
...
12
SUB= 123674X HUS-4859J
...
13
WASHER HUS-19131316
...
14
LOCKNUT HUS-73930600
...
15
SUB= 73690600 HUS-73680600
...
16
"CLIP,INSULATOR" HUS-126471X
...
17
SPACER RETAINER HUS-122052X
...
18
SUB= 131461 HUS-123397X
...
19
NUT HUS-73510500
...
20
"KEEPER,DR BELT " HUS-123891X
...
21
WASHER HUS-19111016
...
22
"KEEPER,FRA DR BEL" HUS-123404X
...
23
KEEPER ENG DR RH HUS-123402X
