Husqvarna WPRT5A (1999 & Before) Tiller

Model: WPRT5A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

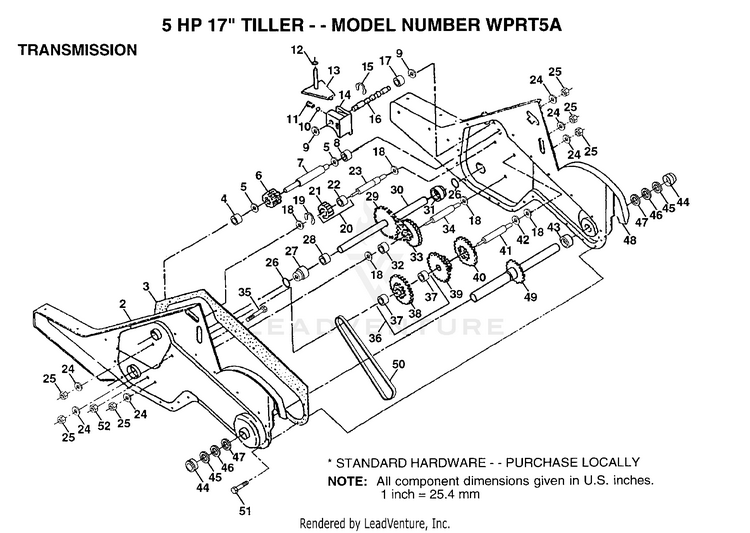

TRANSMISSION P/N BREAKOUT

...
...
1
SUB= 155112 HUS-137555
...
2
SUB= 150698 HUS-121147X
...
3
GASKET TI HUS-106211X
...
4
NEEDLE BRNG LT HUS-5020J
...
5
"T, BEARING" HUS-1370H
...
6
PINION-INPUT CRT HUS-102113X
...
7
SHAFT-INPUT CRT HUS-102110X
...
8
"TI, BEARING" HUS-4895H
...
9
WASHER SEAL CRT HUS-102136X
...
10
SUB= 100482K HUS-7392M
...
11
SPRING-SHIFT CRT HUS-100371K
...
12
O-RING TI HUS-106160X
...
13
ARM ASSY CRT HUS-102107X
...
14
SHIFT FORK TI HUS-8353J
...
15
KLIP RING HUS-12000039
...
16
SHAFT SHIFT CRT HUS-102109X
...
17
SPACER SPLIT CRT HUS-104159X
...
18
WASHER HUS-47358J
...
19
KLIP RING HUS-12000040
...
20
GEAR ASSY CRT HUS-102114X
...
21
GEAR-REV IDLR CRT HUS-102115X
...
22
NEEDLE BEARING TI HUS-6803J
...
23
SHAFT CRT HUS-102111X
...
24
LOCKWASHER HUS-10040700
...
25
NUT.ASF.HEX.7/16 HUS-73610700
...
26
O RING CRT HUS-102128X
...
27
"CRT, BEARING" HUS-102100X
...
28
BUSHING TI HUS-106390X
...
29
CHAIN CRT HUS-102134X
...
30
SUB= 150737 HUS-109204X
...
31
SUB= 918102106X HUS-102106X
...
32
SPACER TI HUS-106388X
...
33
SPRCKT 8 GEAR CRT HUS-102121X
...
34
SHFT 2ND RED. CRT HUS-102112X
...
35
SCRW WHIZ LOK CRT HUS-102101X
...
36
SPROCKET ASM. HUS-137300
...
37
BEARING HUS-4422J
...
38
SUB= 137300 HUS-137301
...
39
GEAR TI HUS-105345X
...
40
GEAR TI HUS-105346X
...
41
REDUCTION SHFT TI HUS-8358J
...
42
BRNG RACE HUS-4220R
...
43
SPACER TI HUS-106146X
...
44
CUP.FORMED. HUS-9672R
...
45
RING SPIRAL CRT HUS-102144X
...
46
SUB= 147344 HUS-9676R
...
47
SUB= 147344 HUS-9674R
...
48
SUB= 150700 HUS-121745X
...
49
TINE SHAFT HUS-132688
...
50
CHAIN.50 LINK TI HUS-106147X
...
51
SCREW CRT HUS-17580408
...
52
NUT.HEX.5/16-18 HUS-73220500
...
xx
GREASE PREMIUM-1 HUS-6066J
