Husqvarna WPRT5A (1999 & Before) Tiller

Model: WPRT5A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

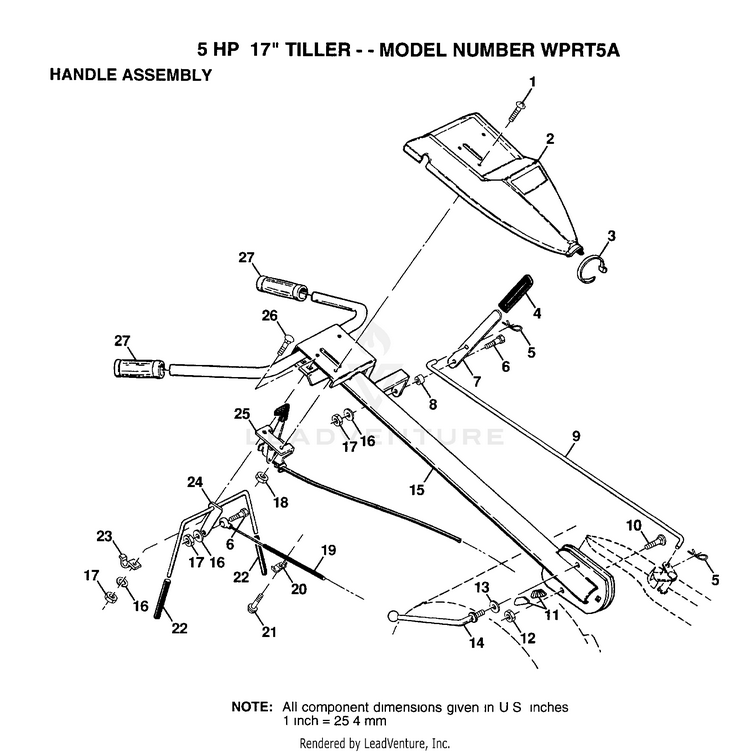

HANDLE ASSEMBLY

...
...
1
SCREW HUS-71091008
...
2
"PANEL,CONT TI" HUS-126951X
...
3
TIE CABLE CRT HUS-104164X
...
4
GRIP T HUS-8206H
...
5
RETAINER M HUS-4497H
...
6
SHOULDER BOLT ST HUS-81328
...
7
SHIFT HANDLE CRT HUS-109335X
...
8
GROMMET CRT HUS-109313X
...
9
SHIFT ROD CRT HUS-109337X
...
10
BOLT D HUS-72110608
...
11
LOCK CRT HUS-109229X
...
12
LOCKNUT HUS-73930600
...
13
WASHER CRT HUS-19131611
...
14
LEVER LOCK CRT HUS-109228X
...
15
SUB= 155117 HUS-127013X505
...
16
LOCKWASHER HUS-10040400
...
17
SUB= 50675 HUS-73220400
...
18
NUT HUS-73731000
...
19
CABLE.CLUTCH.CRT HUS-102162X
...
20
CONDIUT CLIP T HUS-9484R
...
21
SUB= 750097 HUS-86777
...
22
GRIP BAR CRT HUS-102604X
...
23
SUB= 102744X431 HUS-102744X
...
24
"ASSY CONTROL, BAR" HUS-105216X
...
25
"CONT,THROTTLE" HUS-127012X
...
26
BOLT HUS-72140404
...
27
SUB= 624A78 HUS-9266R
